JOCAVI ATP BASISPACK Room Pack

Sale price$ 6,253.00
SKU: ATPBASISPACK

Call us at 1-877-223-8858 or Ask a Question below

JOCAVI ATP BASISPACK Room Pack

Model

JOCAVI ATP BASISPACK Room Pack

The ATP BASISPACK is conceived for the treatment of the first reflections and the back wall.

The first reflections coming from the speakers occur on the side walls and ceilings and are treated through the use of 24 ATP SNOWSORB absorption panels that will improve sound definition and the sound field image at the mixing position. This is achieved by reducing the interference between the direct sound and specular reflections, controlling the comb-filter effects and the reverberation time in the room.

The back wall is treated with 6 ATP CORALREEF diffusion panels to control specular reflections generated from this surface, thus improving the sense of spaciousness within the room providing mid-high frequencies with clarity.

Despite the intentional absence of low frequency absorbent panels, this set of panels helps to enhance the spectrum balance in a rather effective way. It optimizes the acoustic linkage between the listener and the sources, while minimizing the speakers’ boundary interference response and the modal emphasis, balancing the frequency response for this type of rooms.

BASISPACK is a very practical assembly kit for Control-Rooms and Music Rooms, provided with assembly instructions required to install all acoustic modules.

This pack can be easily adapted by adding modules depending on the size of your room. Contact us for more information.

Features

  • 42% Reverberation time reduction
  • 29% Good RT balance time/frequency
  • Ideal for control rooms
  • Optimized for rooms with areas between 25 m2 and 35 m2 (279 ft2 and 375 ft2)
  • Ideal for minimum height of 2.4 m (95")
  • Easily customizable for other room sizes
  • Multiple color combinations available
  • Very cost effective acoustic balance control
  • Mounting instructions/accessories included*

INCLUDED PRODUCTS

  • 24 x Snowsorb Absorbent Panel
  • 6 x Coralreef Diffuser Panel

PACKAGING

PRODUCT SIZE PANELS BOXES BOX SIZE BOX WEIGHT ABSORBER DIFFUSOR TUNED AB.

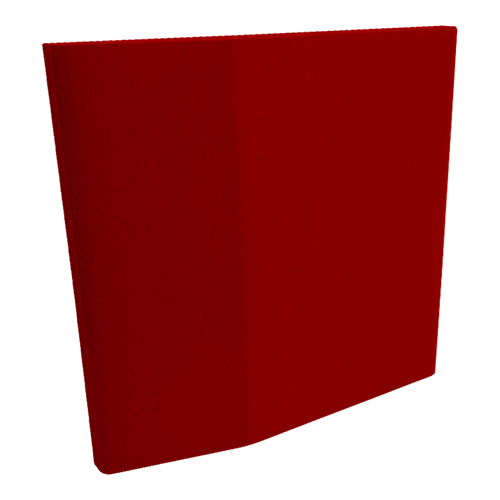

ATP SNOWSORB 60x60cm
(23.6" x 23.6")
24 6 65x65x35cm
(25.6" x 25.6" x 13.8")
3kg
(6lbs 10oz)
Yes

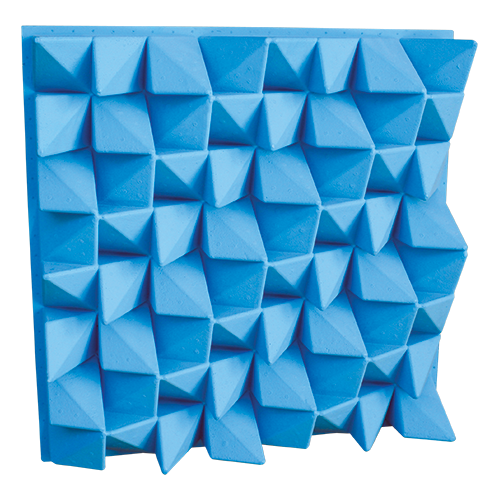

ATP CORALREEF 60x60cm
(23.6" x 23.6")
6 2 65x65x35cm
(25.6" x 25.6" x 13.8")
6.3kg
(13lbs 15oz)
Yes
