$ 203.00

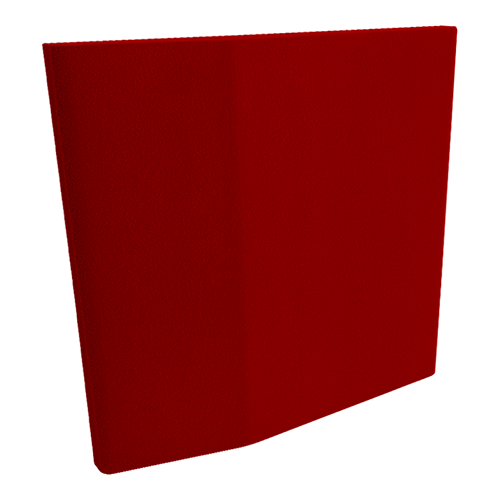

In order to expand the range of options available on absorption panels, ATP created the SNOWSORB with an attractive shape. This model can also be used as a soundproofing reinforcement material.

This panel has a simple aesthetic format that allows various different combinations. It is ideal to be mounted on walls and ceilings, on continuous surfaces or selected spots by combining it with other models. It is made of regular acoustic foam or of melamine foam as an option.

Commercial areas, Television studios, Pavilions, auditoriums, meeting rooms, public spaces, etc., need specific care regarding airborne noise control. The creation of surfaces that are efficient at absorbing sound waves becomes imperative, and that is the main feature that makes this product so relevant.

Due to its high absorption coefficient and low cost, the SNOWSORB is specifically recommended product for the acoustic treatment of large areas. It can be easily cut with a sharp utility knife to be adjusted to the dimensions of walls and ceilings.

Features

  • Raw material: Melamine Foam or Regular Acoustic Foam
  • NRC: 0.90/m2 [>250Hz;<10KHz]
  • MELAMINE FOAM - Flame resistance: Euroclass B-s1, d0 (similar to old M1 France, Germany B1,GB class1, USA V0/HF1)
  • ACOUSTIC FOAM - Flame resistance: Euroclass B-s3, d1 (similar to old M1)
  • Velvety Finishing available
  • Very easy to install
  • 100% recyclable

Tech drawings and Dimensions


Product Dimensions
 Model Height Width Depth Weight
SNW060 60 cm (23.6") 60 cm (23.6") 8 cm (3.1") 0.6 kg (1.3 lbs)
SNW060C 60 cm (23.6") 60 cm (23.6") 8 cm (3.1") 0.6 kg (1.3 lbs)
SNW120 120 cm (47.2") 60 cm (23.6") 8 cm (3.1") 1.2 kg (2.6 lbs)
SNW120C 120 cm (47.2") 60 cm (23.6") 8 cm (3.1") 1.2 kg (2.6 lbs)



Absorption Coefficients



Color options

Regular foam: Melamine foam: Velvety Regular foam: Velvety melamine foam:
