Wunder Audio WUNDERBAR Super D

Sale price$ 33,500.00
SKU: WSD-1

Options: 8 channel - 16 monitors - 1 Powerbar PSU - Exquisite Trim

Options

Call us at 1-877-223-8858 or Ask a Question below

Wunder Audio WUNDERBAR Super D

Model

Wunder Audio WUNDERBAR Super D

The Wunderbar Console Featuring the Wunderbahn

The Wunder Audio Wunderbar is an analog console forged from inspiration, innovation and the bold desire to build the most impressive recording desk in the world. The result is a console so accomplished, it features The Wunderbahn, the worlds first desk to come standard with three vintage stereo bus flavors, and employs a fully symmetrically balanced discrete summing bus system. This unprecedented blend of performance, technology, and perfectly crafted build quality is simply the next standard in the pursuit of the perfect recording.

Introducing the New Tuxedo Gray Wunderbar! This 40-Channel Super D is LOADED with PEQ4 modules, Cinema Display, Patchbay, and Moving Fader Automation.

Fully Discrete Class A signal path, fully transformer balanced. Frequency Response flat from 8 Hz to over 120 KHz, Signal to Noise better than 105 dB, but super musical and cohesive sounding!!
  • 8-Channel Sections Supports D-sub25 8-Channel Cables
  • Available with the Wunder Audio PEQ2 or the new PEQ4 four-band EQ
  • Available with the new Tuxedo Gray Color as upgrade

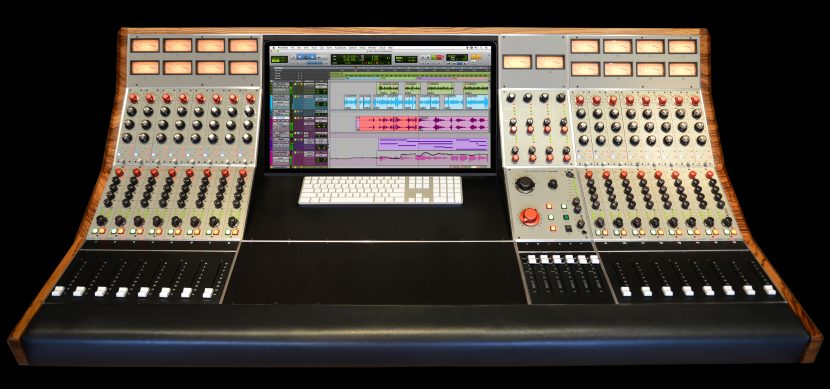

  • New iMac 27” or 32" Cinema Display Section
  • Available with Moving Fader Automation
  • Expanded Inputs and Outputs
  • DAW D-Sub Inputs Plus Mult for Analog
  • Balanced Aux Masters
  • Track/Mix Flip and Insert Defeat Capability
  • Isolated DC Voltage Paths and Audio Paths

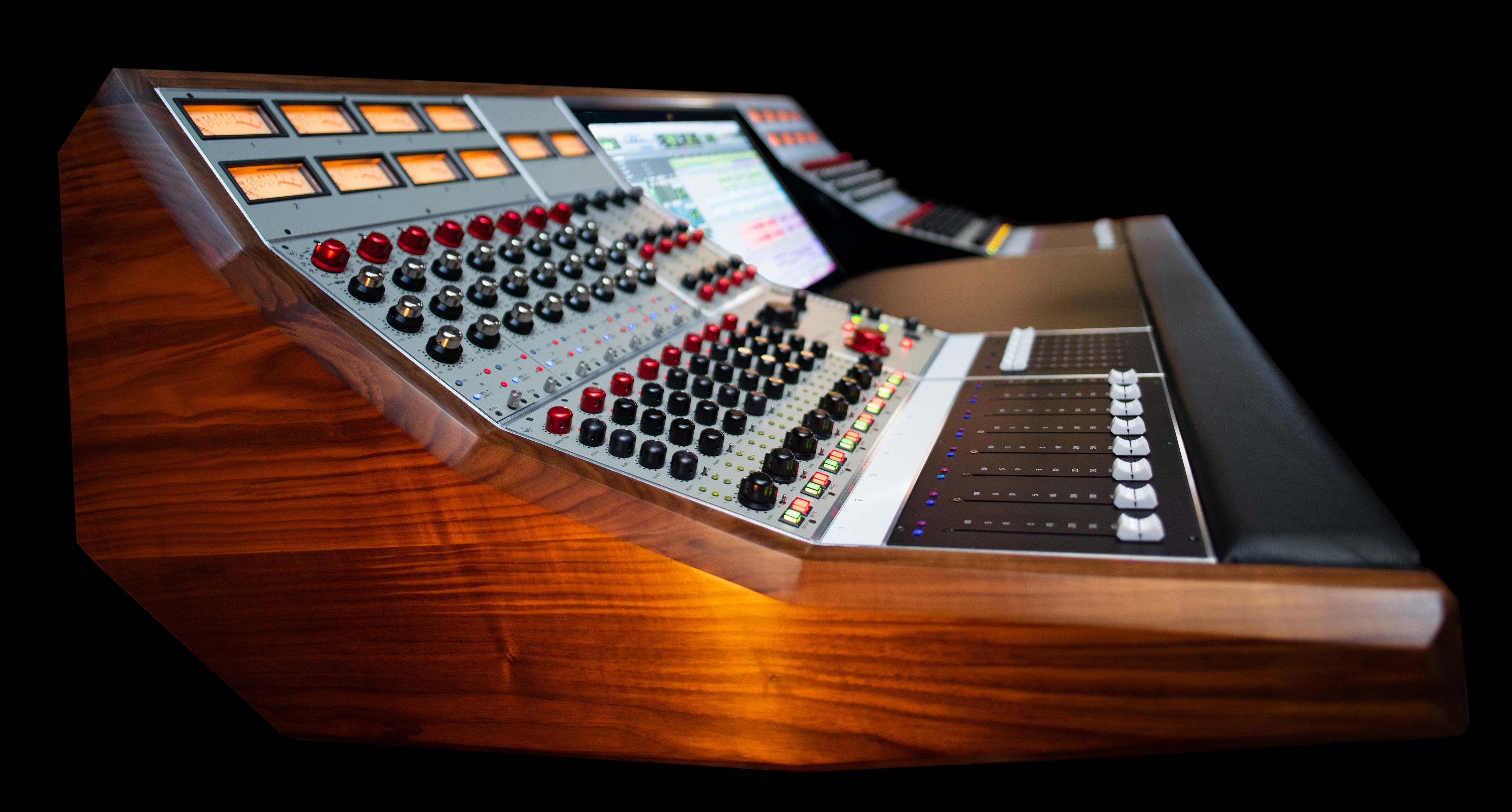

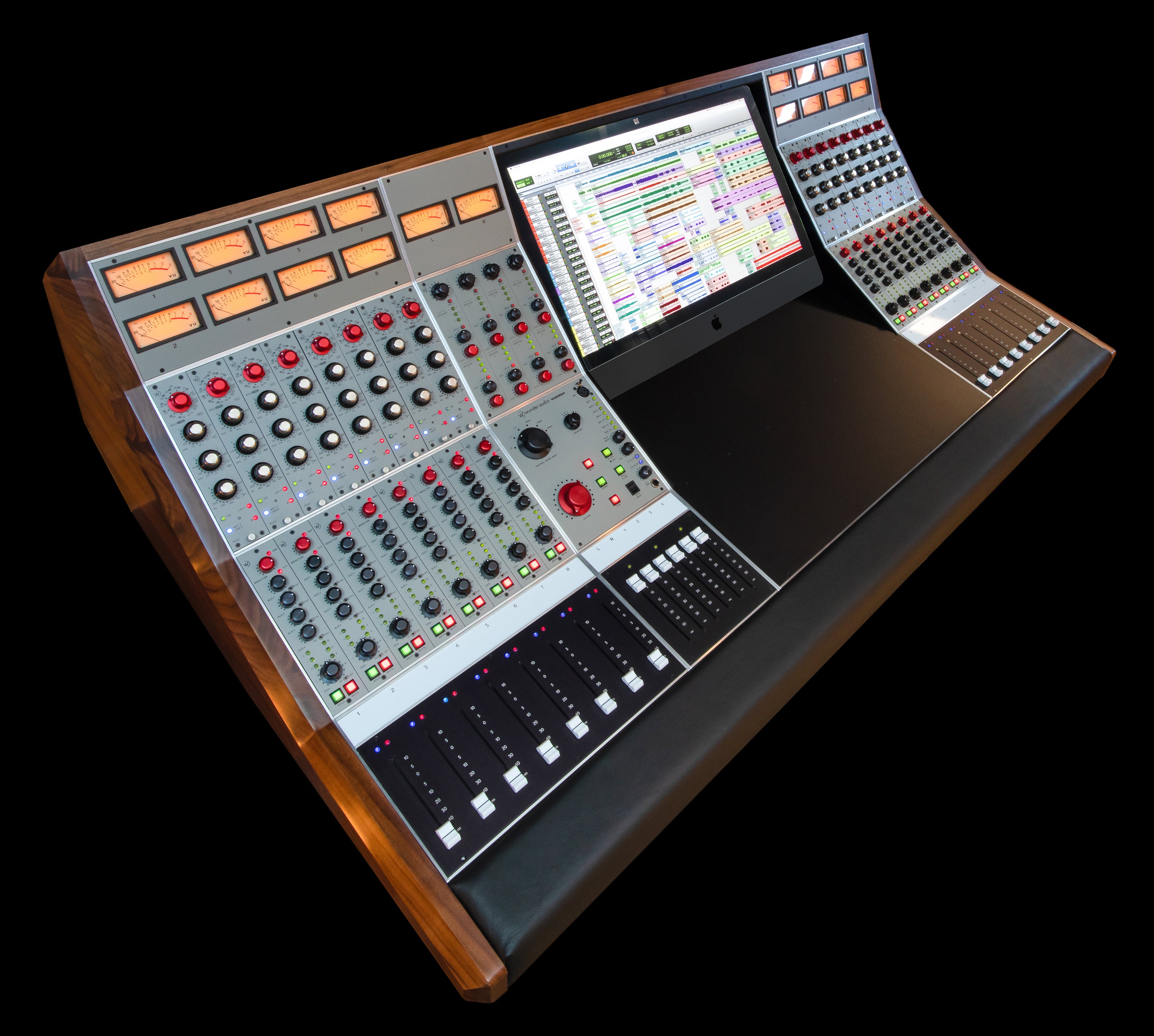

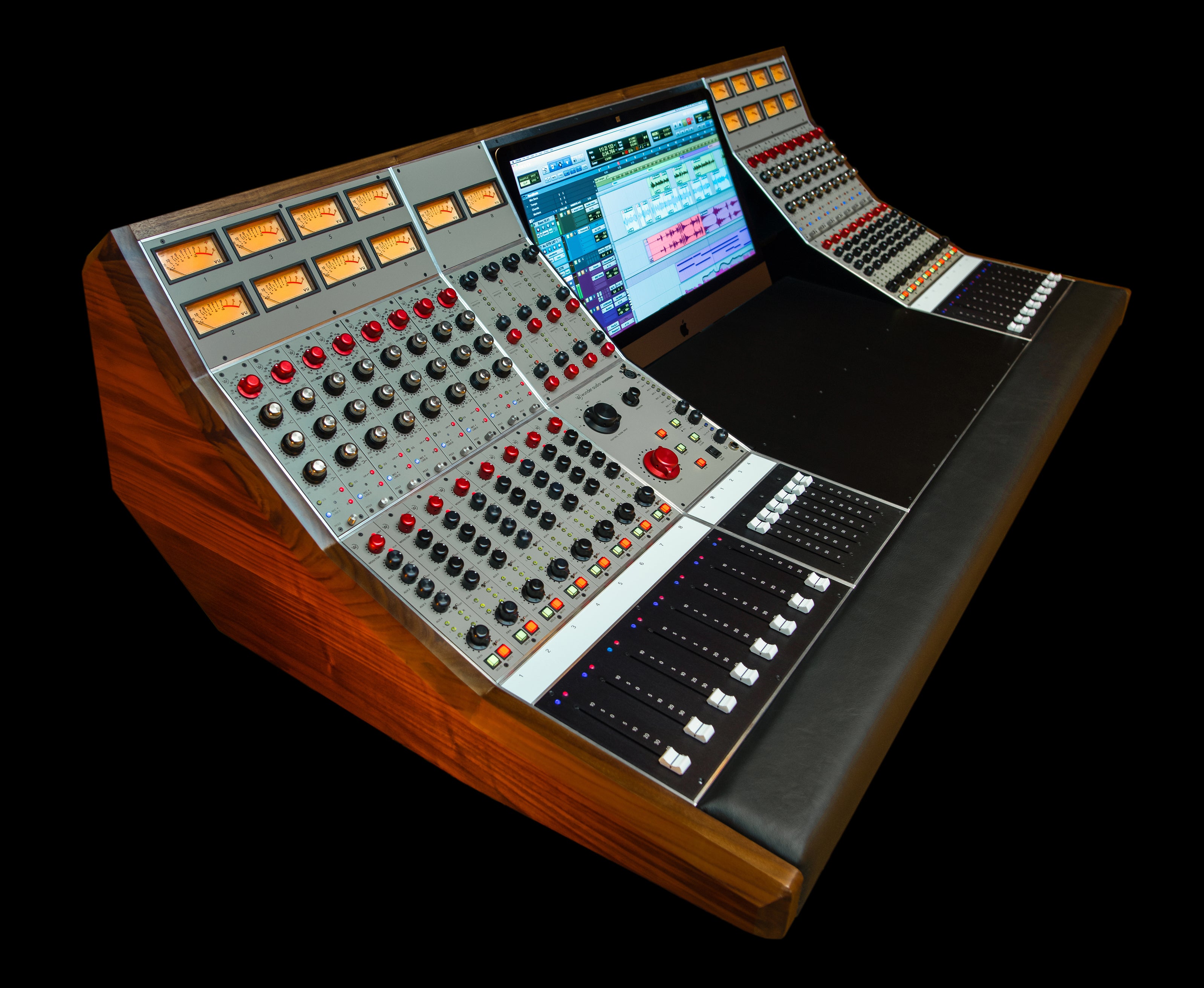

NEW! Introducing Wunderbar Super D - LOADED with PEQ4 modules.
An x8-channel, D-Sub version of the original Wunderbar.

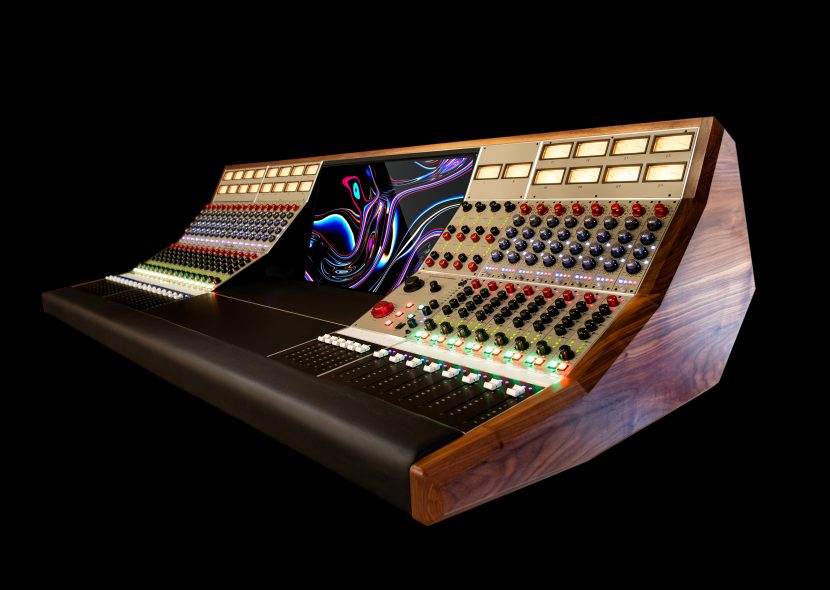

This 24 channel Super D is fully loaded with PEQ4 modules with Track/Mix Switching and Insert bypass on every channel and Bus, and 32” Cinema Display with Apple XDR display.

Fully Discrete Class A signal path, fully transformer balanced. Frequency Response flat from 8 Hz to over 120 KHz, Signal to Noise better than 105 dB, but super musical and cohesive sounding!!
  • 8-Channel Sections Supports D-sub25 8-Channel Cables
  • Available with the Wunder Audio PEQ2 or the new PEQ4 four-band EQ.
  • New iMac 27” or 32" Cinema Display Section
  • Expanded Inputs and Outputs
  • DAW D-Sub Inputs Plus Mult for Analog
  • Balanced Aux Masters
  • Track/Mix Flip and Insert Defeat Capability
  • Isolated DC Voltage Paths and Audio Paths

Wunderbar Super D.
An x8-channel, D-Sub version of the original Wunderbar.

  • 8-Channel Sections Supports D-sub25 8-Channel Cables
  • Available with the Wunder Audio PEQ2 or the new PEQ4 four-band EQ.
  • New iMac 27” Display Section
  • Expanded Inputs and Outputs
  • DAW D-Sub Inputs Plus Mult for Analog
  • Balanced Aux Masters
  • Track/Mix Flip and Insert Defeat Capability
  • Isolated DC Voltage Paths and Audio Paths

All connections on eight channel sections are D-Sub:
Mic Input, Line Input, Direct Output, Routing Module Input, Insert Send, Insert
Return, DAW input, DAW Mult.
Exquisite Trim is Standard:1.5” Solid Dark Walnut End Caps, Meter Bridge
wood and Black Top Grain Leather Armrest

Design your unique Wunderbar console

Customize your configuration to reflect your engineering style. All Wunderbars are custom and designed to the exact specifications of the client's special order. Choose from a variety of console sizes and master section positions, internal Patchbay, and Cinema Display

The Routing Modules

The 1046 Routing modules are fully transformer balanced Class-A Discrete.

Each channel has a monitor fader that is flip-able with the main channel fader. Also featured are six buses with illuminated switches, four auxes that are switchable pre or post, Pan Defeat, 48V phantom, and "Opto Silent" mute. If the console is short loaded, the Routing modules will act as transformer-balanced inputs.



The Master Section

The Master Section includes a Control Room Monitor for monitoring six stereo sources, including buses. Mono, Dim, Mute, and Solo Clear are on large illuminated switches.

Select from 3 sets of speakers or a headphone amp with separate volume control. The internal routing of subgroups to the stereo bus eliminates external patching, sparing monitor faders. The Eight-fader monitor section includes solo, pan, and placement into any of the buses. Talkback into any bus/aux is either latching, momentary, or remote. The master section has a large Illuminated master PFL, AFL Solo switch with Solo level.



Other features include: P&G 100mm Conductive Plastic Faders, thick hardwood end-cheeks in an unlimited choice of hardwoods, and full leather armrest.

Board Sizes

Available in 12 channel increments from 12-60 channels, and 8 channel Super D increments from 8-56

  • 12 channels, 20 monitors, 1 Powerbar PSU, Exquisite Trim.
  • 24 channels, 32 monitors, 1 Powerbar PSU, Exquisite Trim.
  • 36 channels, 44 monitors, 2 Powerbar PSU's, Exquisite Trim.
  • 48 channels, 56 monitors, 2 Powerbar PSU's, Exquisite Trim.
  • 60 channel, 68 monitors, 2 Powerbar PSU's, Exquisite Trim.

Super D:

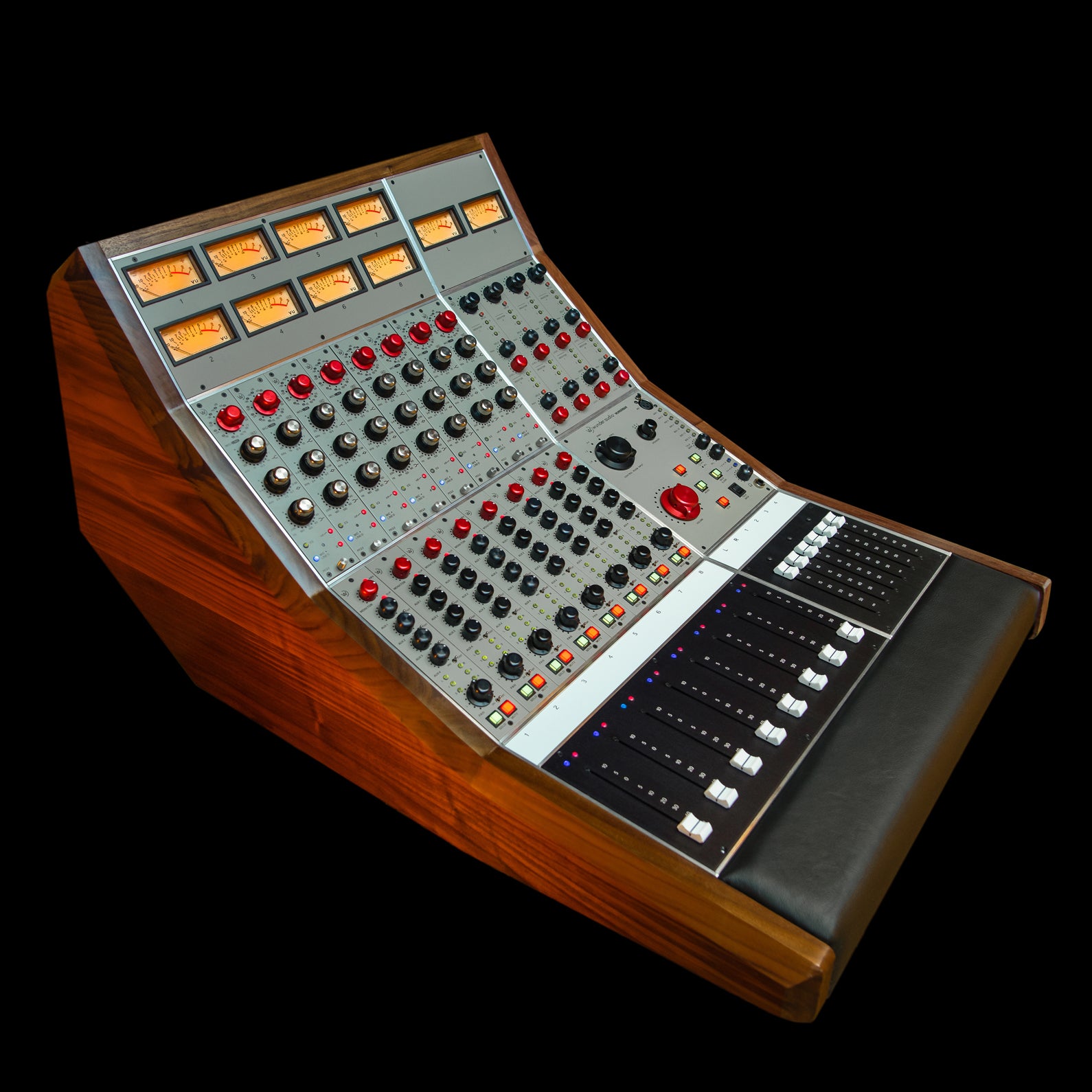

  • 8 channels, 16 monitors, 1 Powerbar PSU, Equisite Trim.
  • 16 channels, 24 monitors, 1 Powerbar PSU, Equisite Trim.
  • 24 channels, 32 monitors, 1 Powerbar PSU, Equisite Trim.
  • 32 channels, 40 monitors, 2 Powerbar PSU, Equisite Trim.
  • 40 channels, 48 monitors, 2 Powerbar PSU, Equisite Trim.
  • 48 channels, 56 monitors, 2 Powerbar PSU, Equisite Trim.
  • 56 channels, 64 monitors, 2 Powerbar PSU, Equisite Trim.

Exquisite Trim is 1.5" Solid hardwood (Oak, Walnut, or Roasted Coffee Bean Birch) and includes End Caps and Meter Bridge and Black or Brown Top Grain Leather Armrest.

Options

  • PEQ2 or upgrade to PEQ4 Modules.
  • Wunderbar Gray or NEW Tuxedo Gray upgrade.
  • NEW Exotic Wood package upgrades to an unlimited choice of wood.
  • DAW or MIDI controlled Motorized P&G fader.
  • Patch bay section for 8x 19" wide patch bays (bays not included).
  • Center section for 27" or 32" flat screen monitor (monitor not included).
  • Insert enable/defeat panel via light-pipe buttons. - (Available on the TT patch bay section only)
  • Stereo Bus inserts.
  • Wunderbar stand w/ Black Hammerite Finish.

56-60 Channels available

WUNDERBAR OPTIONS

  • 8 Auxillary Sends and extra unity gain switch version Routing Module - $200/ch
  • PEQ4 HiQ upcharge per channel - $300
  • Track/Mix switching and Insert enable-defeat switch on each channel. Priced per eight channel section. Available on Super D only - $1000
  • Stereo Bus Inserts for os all buses, fully bypass-able. - $1000
  • Exotic Wood package. Customer Selects any type of special wood - $1000
  • Patch bay section for 8x 19” wide patch bays (bays not included) - $3800
  • Cinema Display Section for 23” Monitor (not included) - $3500
  • Cinema Display Section for 27” Monitor (not included) - $4500
  • Cinema Display Section for 32” Monitor (not included) - $6000

Please Get in Touch to let us help you with your Wunderbar Console
