Wolff Audio

Wolff Audio ProPatch

Name: Wolff Audio ProPatch
Brand: Wolff Audio
Price: 13987.0 USD
Availability: InStock

$ 13,987.00

Configuration:

100 in - 100 out

Variant

QTY:

Apply for Financing PADvantage

Call us at 1-877-223-8858 or Ask a Question below

Wolff Audio Wolff Audio ProPatch

$ 13,987.00

Wolff Audio ProPatch

Model

Wolff Audio ProPatch

Relay based. Pristine signal path. Zero compromise.

At the heart of every ProPatch is Wolff Audio’s proprietary relay based, software controlled switching architecture. A patchbay’s role is to route signals without affecting them—a purely passive connection. ProPatch contains no buffers, amplifiers, or active electronics in the signal path. None. Active circuitry, by definition, alters how connected gear interacts: introducing noise, affecting impedance, shifting frequency response, and potentially disrupting 48V phantom power. ProPatch’s relay based passive signal path delivers direct, balanced routing with no coloration, no interference, and no compromise.

ProPatch signal chains are configured and managed using an app that supports Windows, Mac or iPad OS. The app provides easy to use creation of complex device chains, including mults, mono to stereo, inserts, processors, AB groups and many more intuitive and useful shortcuts. All of these can be saved, recalled and associated with sessions.

Connect your audio processors like “plugins.” Drag and drop your devices into complex audio chains that can be edited, auditioned and recalled instantly.

Using relay switching has many advantages. It is ultra-reliable, based on telecom-scale technology rated for millions of cycles. It requires little power to operate and generates no heat, eliminating the need for a fan. Because the signal path is “just a wire,” it can pass full bandwidth audio signal, mic level, phantom power, control voltage, digital audio and MIDI. It is agnostic to the signals being routed. The relays are latching, so if a ProPatch loses power, the current routing remains in effect.

The soft click of a physical relay cues that routing changes have happened. Connect the web enabled app to ProPatch via USB-C or Ethernet. Use the app to setup or adjust current routings or to configure and store new presets. The last configuration will load immediately on power-up.

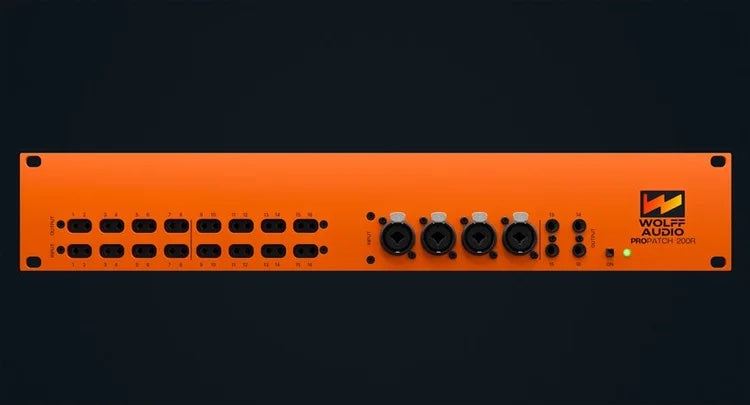

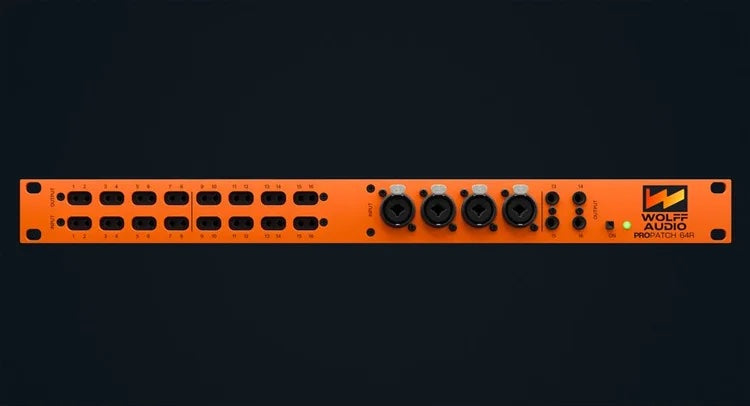

Rear panel DB25 connectors provide 48 channels of I/O, while front panel I/O includes 16 TT I/O pairs, 4 XLR/TRS combi jacks and 4 TRS jacks. Use these to integrate ProPatch into an existing TT patchbay system, quickly connect temporary gear, or scale up and create a larger system by interconnecting multiple ProPatch units.

Eliminate the usual workflow pause experienced when configuring manual patch bay systems and keep projects in the groove and flowing with ProPatch.
