WesAudio TITAN - NG500 RECALL CHASSIS

Name: WesAudio TITAN - NG500 RECALL CHASSIS
Brand: WesAudio
SKU: WEA-TITAN
Price: 989.0 USD
Availability: InStock

$ 989.00

$ 1,099.00

Save $ 110.00

SKU: WEA-TITAN

QTY:

Apply for Financing PADvantage

Call us at 1-877-223-8858 or Ask a Question below

WesAudio WesAudio TITAN - NG500 RECALL CHASSIS

$ 989.00

$ 1,099.00

WesAudio TITAN - NG500 RECALL CHASSIS

Model

WesAudio TITAN - NG500 RECALL CHASSIS

NG500 recall chassis

_TITAN is complete recall system designed to provide total integration with your beloved analogue equipment. It extends 500 series connector with additional pins where modules can be designed to support digital recall or any other vendor specific functionalities. This extension is part of new open standard “ng500” – “Next Generation 500 series” which allows other manufacturers to design and implement digitally controlled analog devices.

We are proud to present _TITAN – Future of analog processors.

MAIN FEATURES

_TITAN

10 SLOTS FOR 500-SERIES or ng500-SERIES MODULES
HIGH END LINEAR POWER SUPLY capable to deliver 5A of power
Stereo links are integrated with modules
CONTROL/RECALL ALL MODULES THROUGH ONE CONNECTION
Internal stereo link switches
OPEN SPECIFICATION
Remote firmware upgrade
REMOTELY CONTROLED STEREO LINKS
IAC – INTERNAL AUDIO CONNECTOR

NG500 RECALL CHASSIS

We are proud to present _TITAN – Future of analog processors.

HIGH END LINEAR POWER SUPLY

Linear power supply capable to deliver 5A of power will bring sound of your units to the next level!

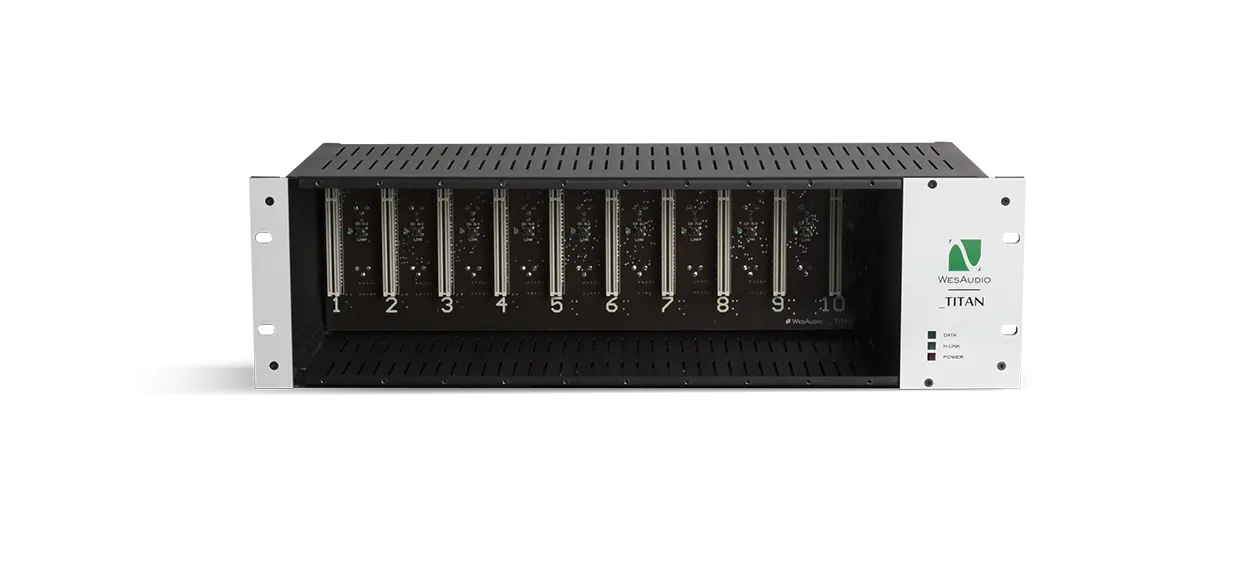

**10 SLOTS FOR 500-SERIES or ng500-SERIES MODULES(*)**

_TITAN can host standarized 500 series module (Please read Important Note below).
Of course it was designed to recall up to 10 units with signle USB or Ethernet connection!

CONTROL ALL MODULES THROUGH ONE CONNECTION!

_TITAN allows to control/recall all hosted modules through one connection:
1) USB – for direct connection with your workstation.
2) Ethernet – dedicated LAN connection to access all devices in your local network.

OPEN SPECIFICATION

_TITAN is part of open specification where proper documentation along with dedicated software frameworks (including high level AP, firmware drivers and generic _GConBlackBox plugin) can be shared with other vendors free of charge.

REMOTELY CONTROLED STEREO LINKS

_TITAN provides simple standalone application to change status of stereo links between modules.
No more problems with accessing your chassis configuration!

IAC – INTERNAL AUDIO CONNECTOR

At slot number 10, _TITAN implements special connector, which routes all audio signals from and to, slots 1 – 8.
This allows future integration with audio interface modules, analog summing modules or patchbays.
INPUT source for any slot is implemented through analog relays, and it is configurable through standalone application. This prevents two different signal sources to be routed to the same module.

Main features summary:

10 SLOTS FOR 500-SERIES or ng500-SERIES MODULES(*),
HIGH END LINEAR POWER SUPLY capable to deliver 5A of power,
CONTROL/RECALL ALL MODULES THROUGH ONE CONNECTION,
OPEN SPECIFICATION (**) – documentation and software framework including communication drivers for any Vendor that would like to adopt to this standard,
REMOTELY CONTROLED STEREO LINKS through standalone application,
IAC – INTERNAL AUDIO CONNECTOR – for future integration with audio interface, summing modules or patchbays,

Other features:

Stereo links are integrated with modules, and pressing “Link” button on modules which supports GCon protocol (e.g. _Mimas) sets stereo link on the _Titan.
Ethernet connection.

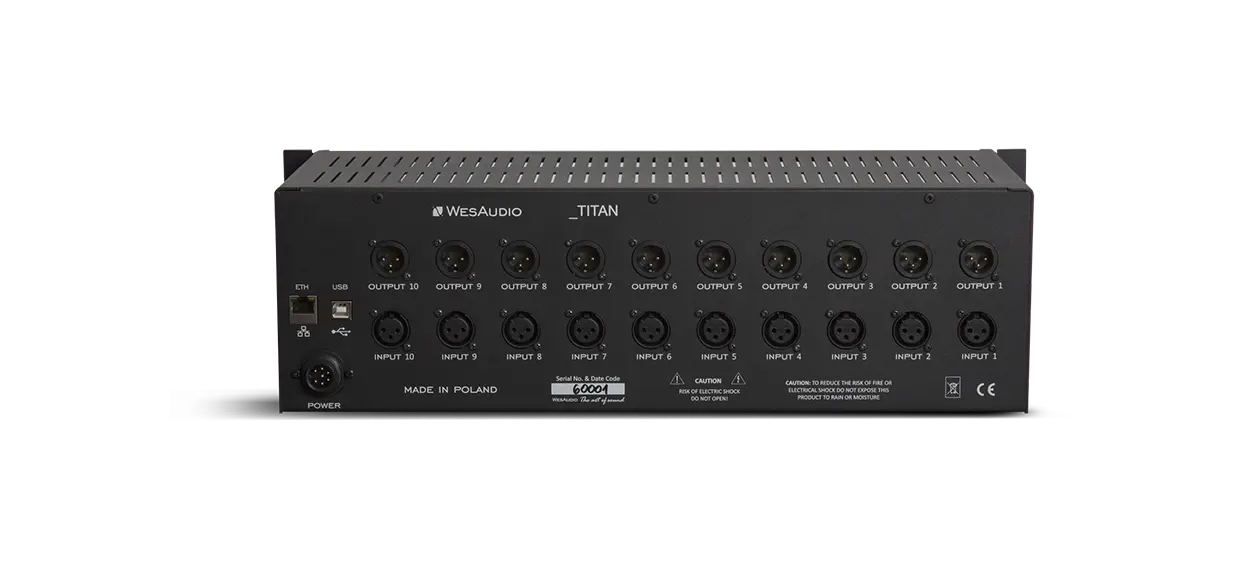

XLR sockets in/out for each slot.
Internal stereo link switches which can be also managed through GConManager standalone application.
Power mode switch – 115V/230V.

Specification

_Titan specification

Power consumption (empty frame)	7W
Unit dimensions	135x483x190 mm
Box dimensions	274x550x382 mm
Unit weight	4,2 kgs
Power supply weight	1,75 kgs
Box weight	7,85 kgs
Warranty	2 years
