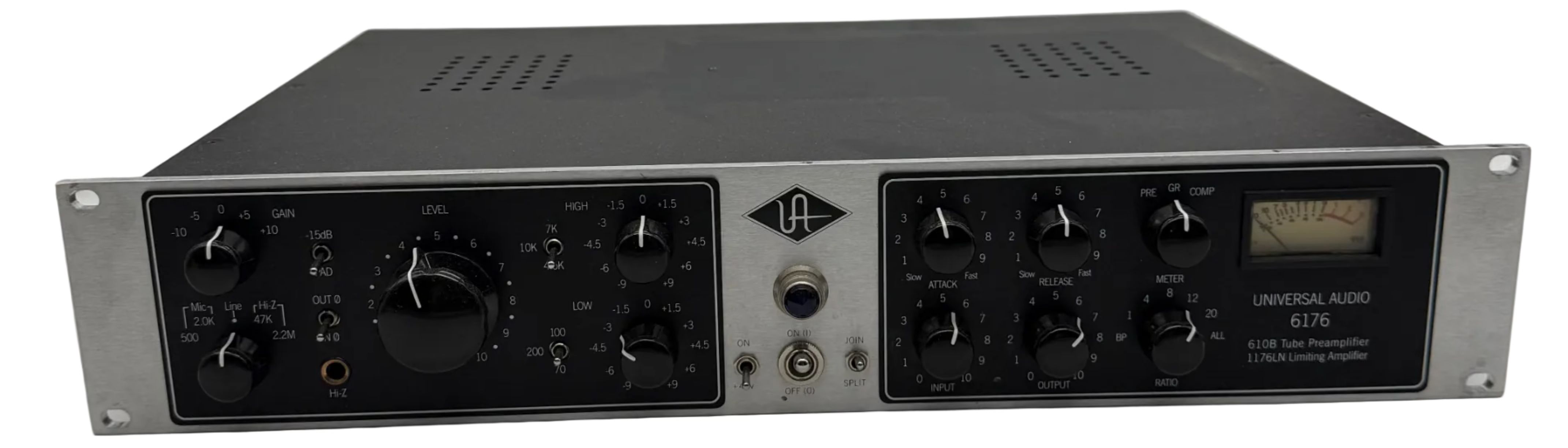

Universal Audio 6176 Channel Strip (Preowned)

Name: Universal Audio 6176 Channel Strip (Preowned)
Brand: Universal Audio
Price: 1600.0 USD
Availability: InStock

$ 1,600.00

QTY:

Apply for Financing PADvantage

Call us at 1-877-223-8858 or Ask a Question below

Universal Audio Universal Audio 6176 Channel Strip (Preowned)

$ 1,600.00

Universal Audio 6176 Channel Strip (Preowned)

Model

Universal Audio 6176 Channel Strip (Preowned)

An iconic analog channel strip combining the tube warmth of the vintage 610 preamp with the legendary fast-acting punch of the 1176LN FET compressor.

Key Features

Two Vintage Classics in One: Combines the Bill Putnam-designed 610 tube preamp/EQ with the signature 1176LN Class A FET limiter in a single chassis.
"Join / Split" Flexibility: Run the preamp directly into the limiter in series, or switch to "Split" mode to use each section as independent hardware units.
Tone-Shaping Controls: High/Low shelving tube EQ and variable impedance switching for microphone and instrument inputs.
Hand-Built in the USA: Engineered with high-tension power regulation for tight, extended low-end response.

Technical Specifications

Feature	Specification
Preamplifier Type	Vacuum Tube (1 x 12AX7A, 1 x 12AT7A)
Limiter Type	Solid-State Class A FET (1176LN)

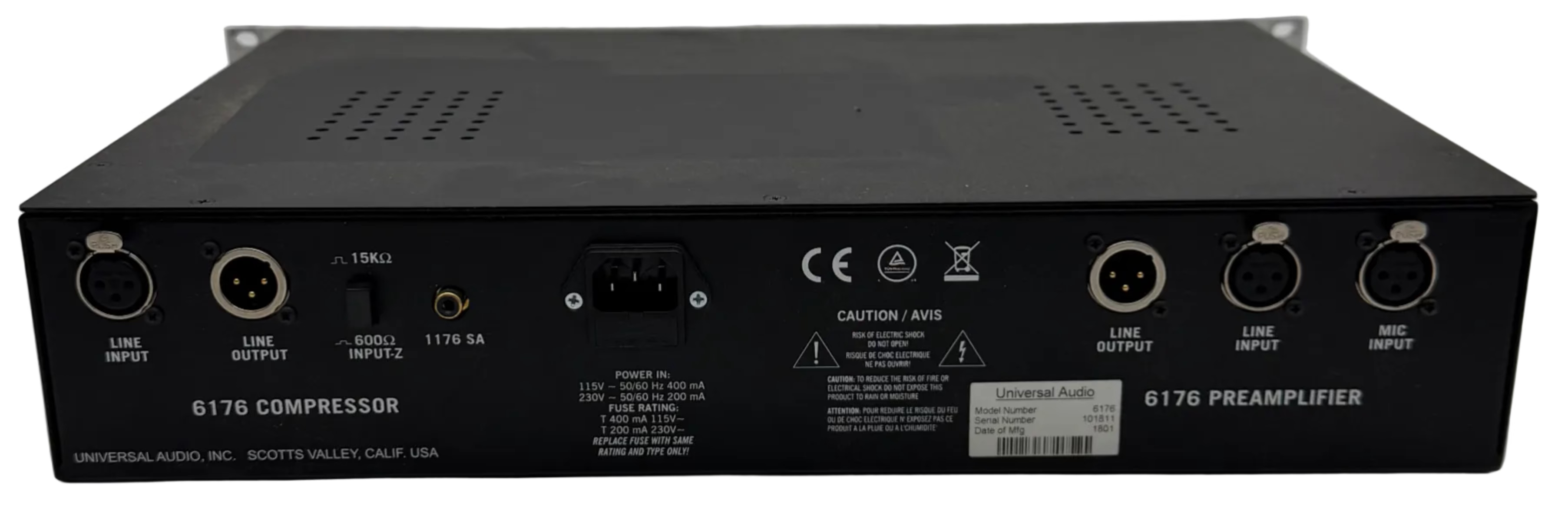

Inputs	1 x XLR (Mic), 1 x XLR (Line), 1 x 1/4" (Front Panel Hi-Z Input), 1 x XLR (1176 Line Input)
Outputs	1 x XLR (610 Preamp Line Out), 1 x XLR (1176 Line Out)
Max Preamp Gain	65 dB
Frequency Response	20 Hz – 20 kHz (Preamp: +0/-1 dB, Limiter: ±1 dB)
Rack Space	2U Standard 19" Rackmount
Dimensions (W x H x D)	19" x 3.5" x 12.25" (483 mm x 89 mm x 311 mm)
Weight	12 lbs (5.44 kg)
