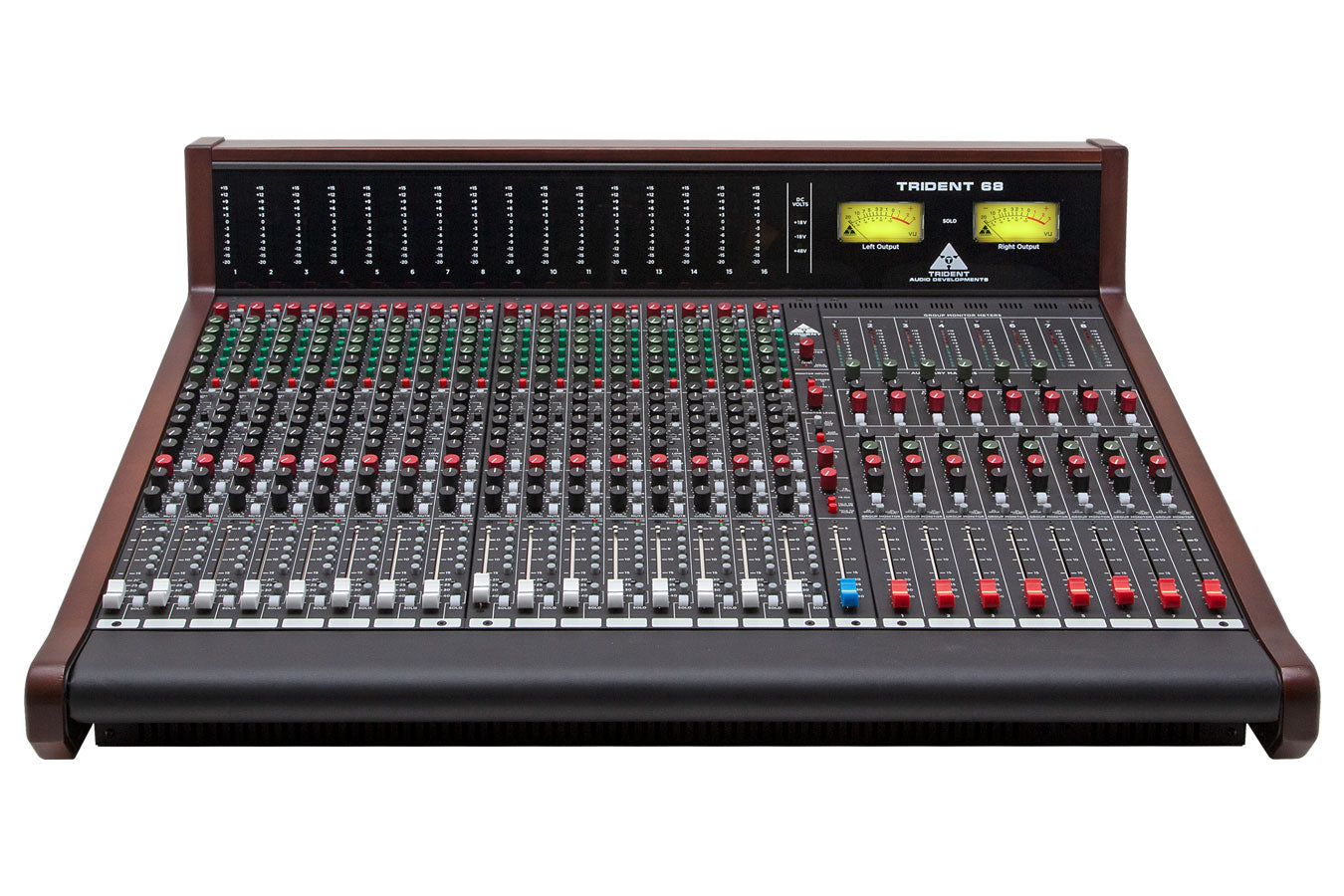

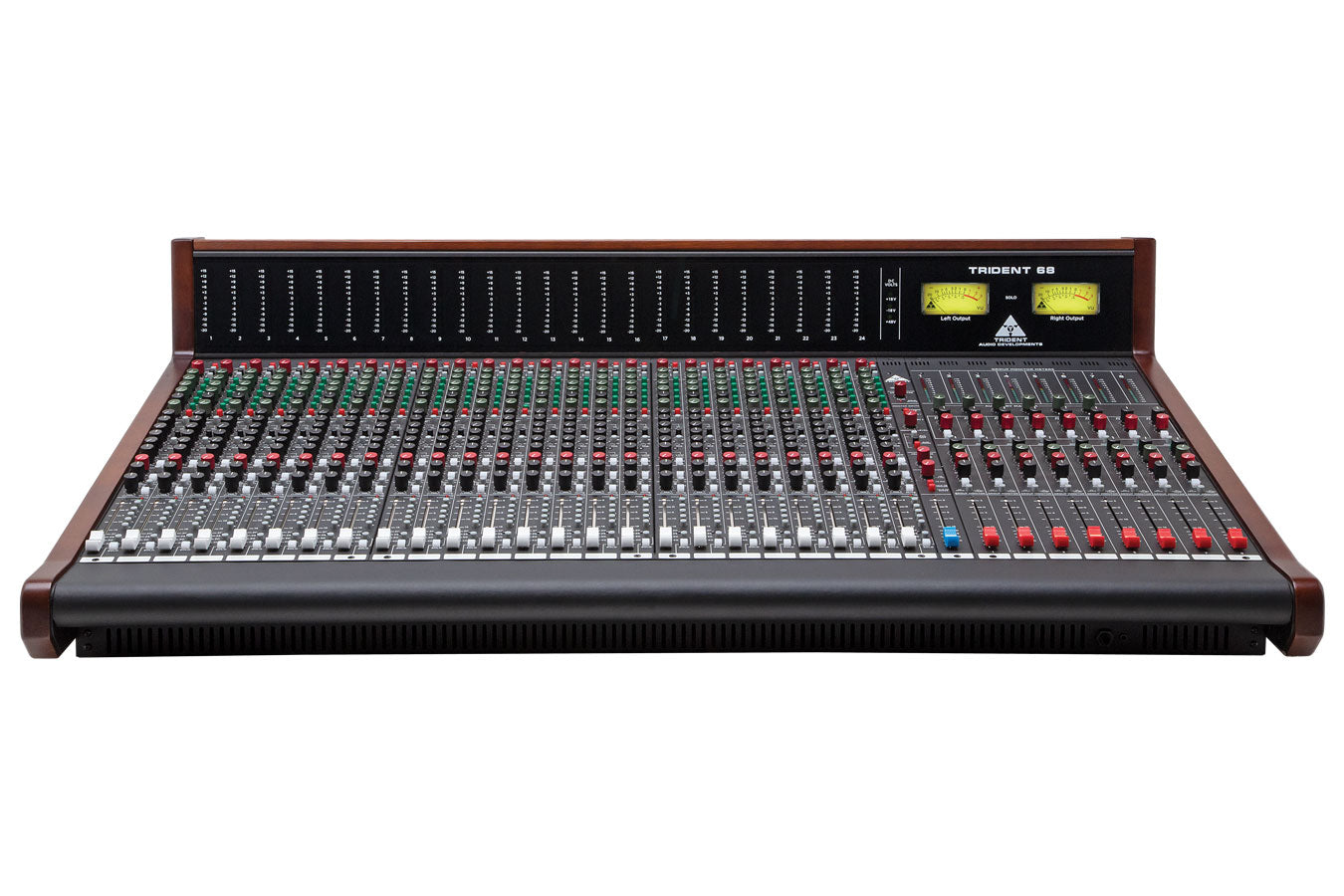

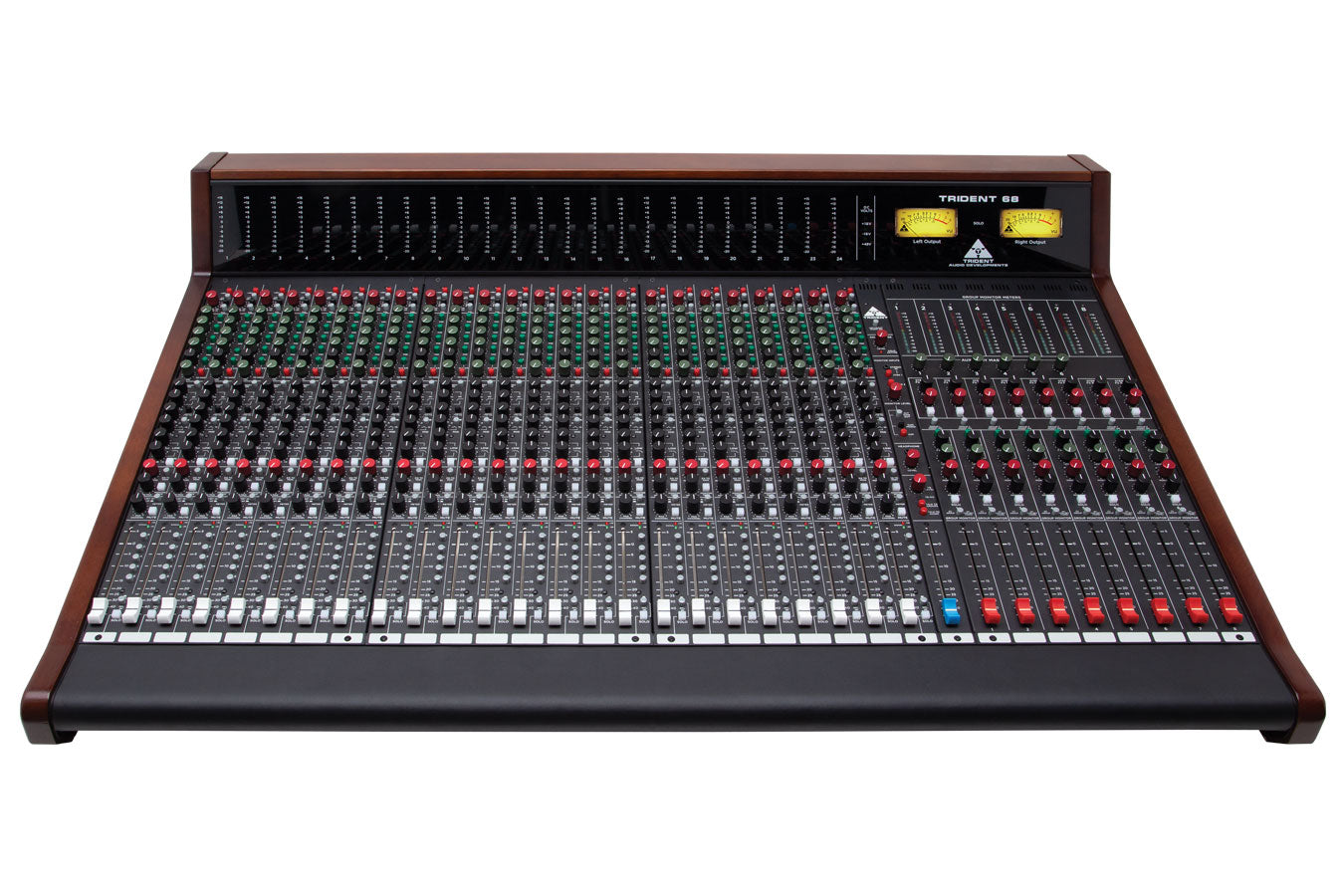

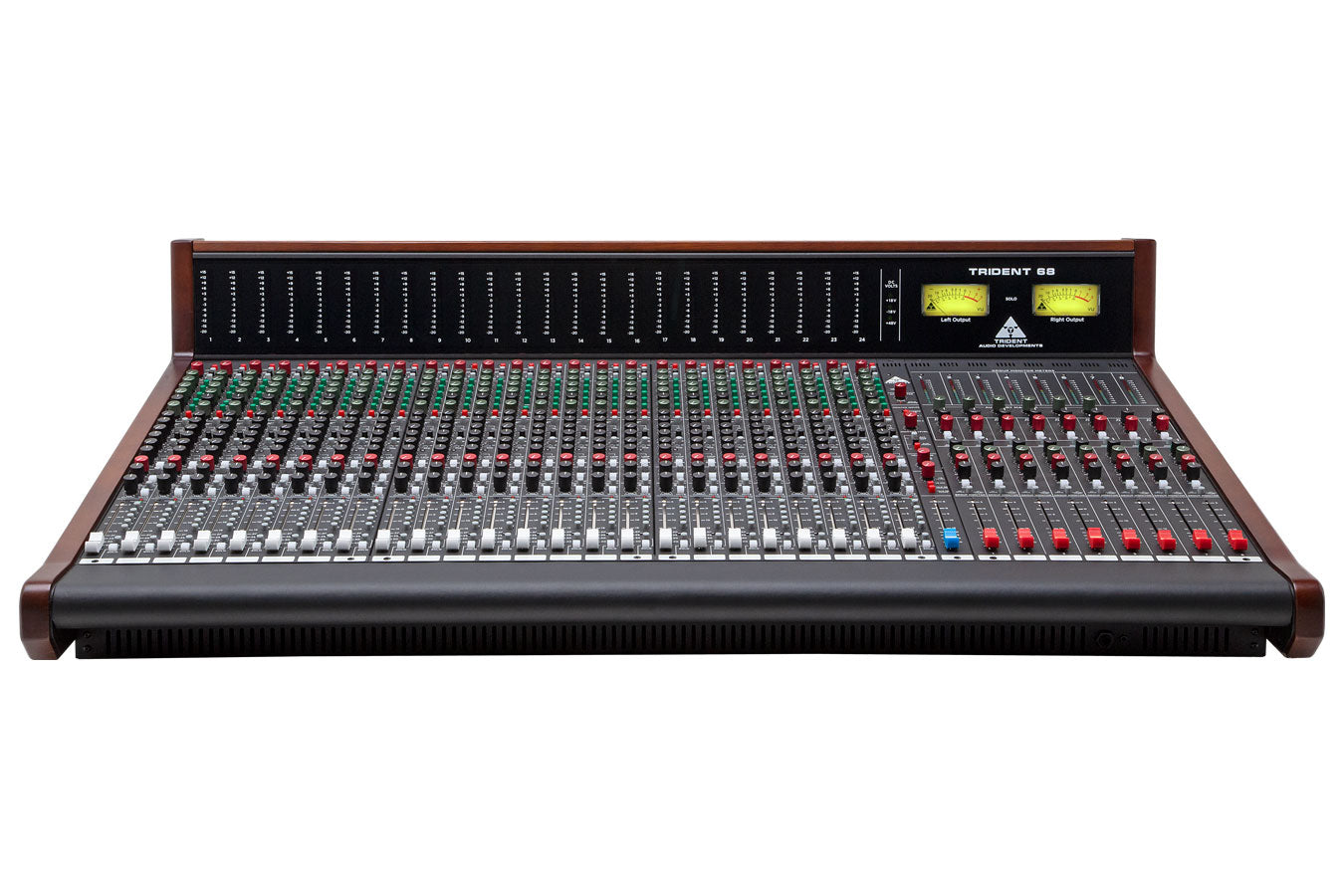

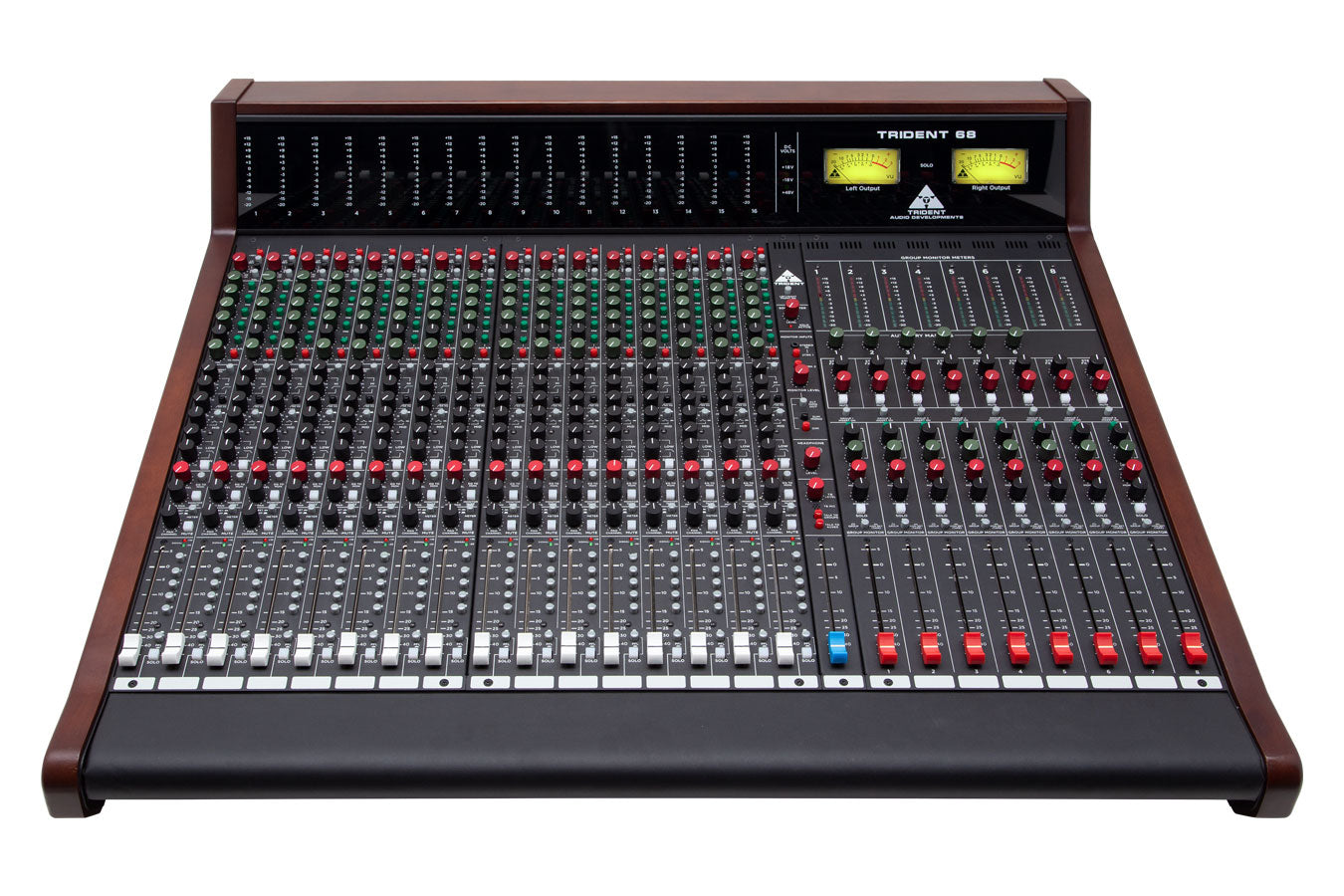

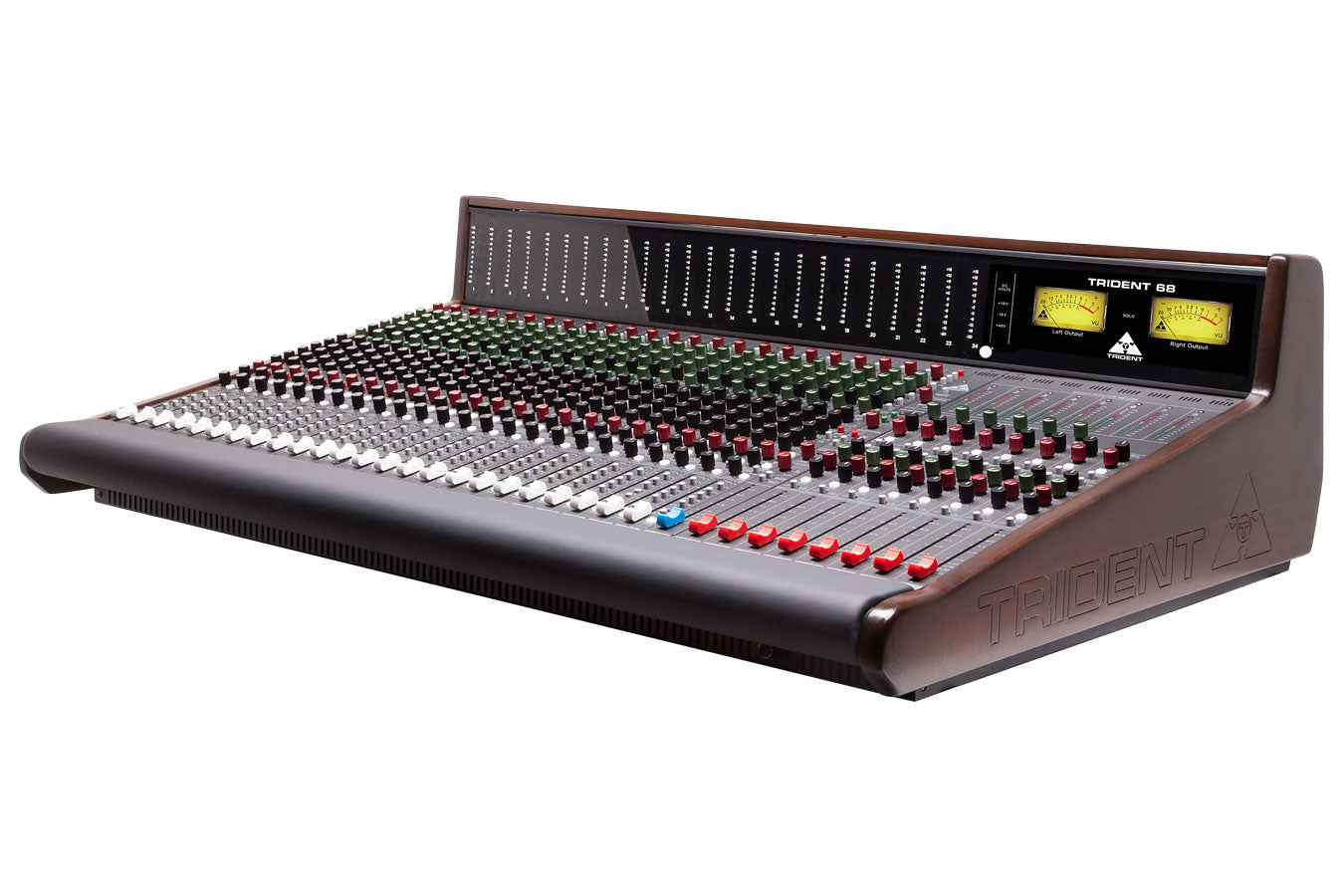

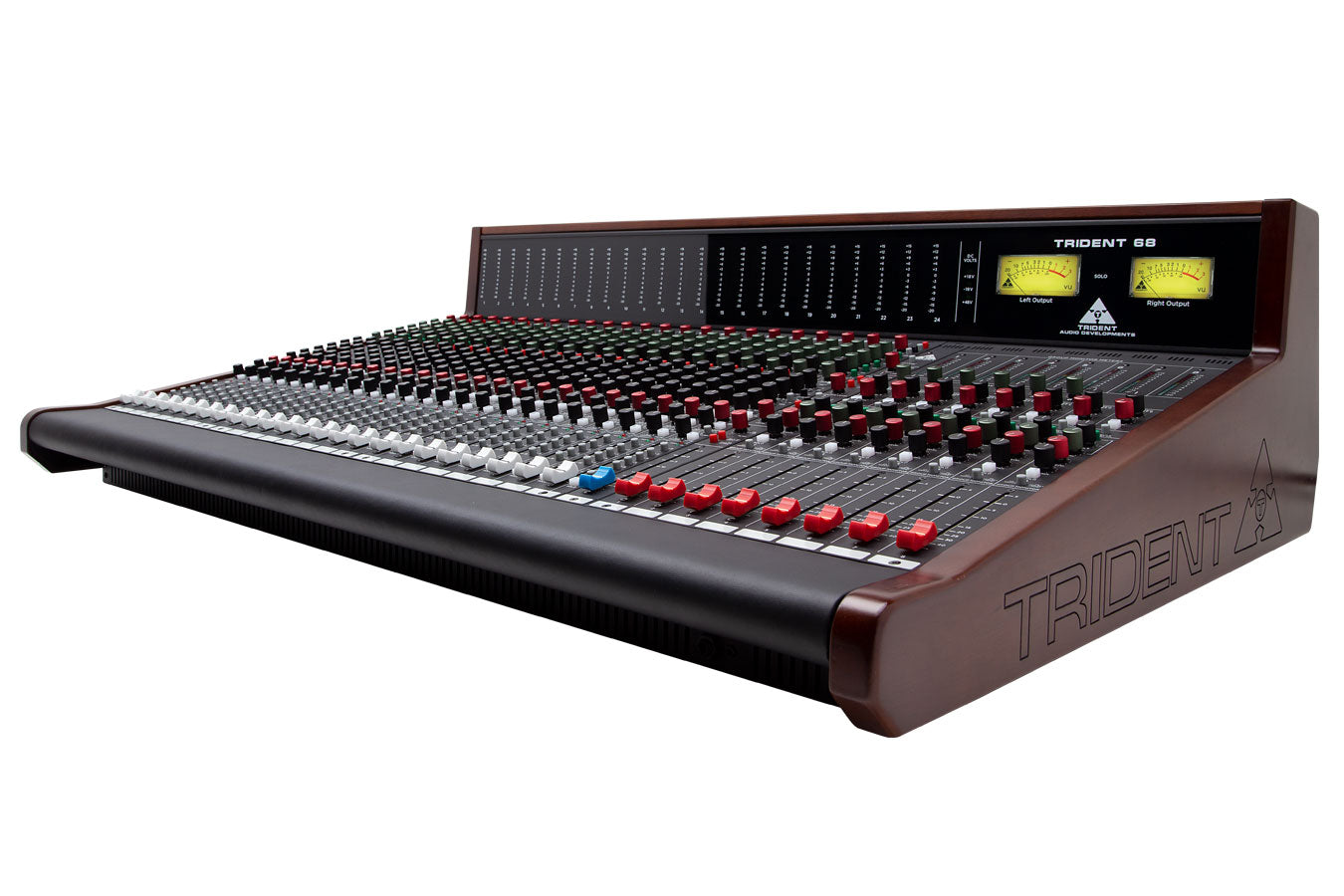

Trident 68 Console

The Series 68 analog consoles have been developed to deliver the core feature set most often needed for analog recording. The 68’s are Split/lnline consoles with individual channels in 8-way panels. Using an 8 subgroup configuration and incorporating 6 Aux sends, its routing options are vast and simple to use. Connections are fast and easy with DB-25’s throughout the board and XLR’s for Master and Main outputs. With a flexible yet powerful 3 band EQ at its core, including selectable channel inserts and monolithic preamps driving the inputs, the Series 68 consoles offer a wide array of summing and mixing options. The sonic quality and compact footprint of the 68’s are able to meet any demand.

Split/Inline Console:

Since the inception of this configuration by Trident Audio on the A-Range console in the late 1960’s it has been adopted throughout the industry and remains a standard configuration for our consoles today.

• Dual Inputs to the channels with line and monitor inputs
• 3 Band EQ with sweeping mid bands and selectable low and high bands
• 27dB of headroom
• Channel Inserts
• Selectable EQ Path

Microphone Preamp:

The 68’s incorporate a new high-quality wide bandwidth preamp design. These preamps have lots of headroom with very low noise, low distortion, a high slew rate, and high gain fully capable of driving ribbon microphones.

• 65dB gain preamp
• Balanced inputs
• Balanced inserts with full bypass
• Input Reverse Switch
• Mic/Line Switch
• Phantom Power Switch

Flexible EQ:

The 68’s incorporate an all-new 3 Band EQ derived from the Series 80 Console EQ. As the main channel EQ throughout the console.

A three band Trident EQ with overlapping frequency ranges is provided along with a switchable high pass filer. The HIGH and LOW sections of the equalizer have a shelving response and the MID has a peaking (bell) response with two selectable bandwidth settings.

• Sweepable high band between 1k and 15k
• Sweepable mid band between 200Hz and 3k
• Sweepable low band between 40Hz and 650Hz
• Selectable mid bandwidth between 1 and 1/3rd octave
  50Hz High Pass Filter

Master Section:

The master section of the 68’s are laid out for ease of use and have all the necessary features to manage your monitors, talkback, and stereo returns.
The 68’s master channel is an independent from the rest of console to ensure that your console’s master output functions can be easily and quickly serviced with little or no downtime.

• Main & Alt Monitor Control
• Mute, Dim & Mono Controls
• Onboard Headphone with Gain
• 8 Subgroups
• Two 2 Track Returns
• Subgroup Monitor Returns
• 1 Stereo AUX
• 8 Stereo FX Returns
• 1/8″ TRS Selectable Input
• Onboard Talkback
• Selectable Insert Return

Configuration

Input Section Feature Highlights

Mic and Line Gain Control
Mic or Line levels on each channel.

I/P Reverse Switch
Flips channel input to the monitor section.

Meter Select Switch
Allows you to choose metering from the Direct Out or Monitor Return.

Mic Pre
A new high-quality wide bandwidth preamp design.

EQ

An all-new Trident 3 Band EQ, derived from the classic Series 80 console, with overlapping frequency ranges is provided along with a switchable high pass filter. The HIGH and LOW sections of the equalizer have a shelving response and the MID has a peaking (bell) response with two selectable bandwidth settings.

Master and Aux Section Highlights

Master Section

The master section of the 68’s is laid out for ease of use and has all the necessary features to manage your monitors, talkback, and stereo returns. The 68’s Master channel is an independent module from the rest of the console. This ensures that your console’s master output functions can be easily and quickly serviced with little or no downtime.

Monitor Section
The Trident 68 is a split in-line console. This means you can switch the inputs on each channel providing an easy workflow when tracking and mixing.

Aux Section
The Trident 68 features 6 Aux sends all with pre or post-fade selection, accessible on every channel. Stereo Aux 5/6 can also be sent to the Monitor section.

Connections

The Trident Series 68 utilizes DB-25 connections for fast and easy configuration on the majority of the console inputs and outputs.

Product Specifications

Input Impedance
Microphone:	>2KΩ electronically balanced
Line:	>10KΩ electronically balanced
Output Impedance
Left/Right, Monitor O/P, Group and Auxes	<50Ω
All other Outputs	<100Ω
Frequency Response
Mic Input to Mix Output	<+0, -0.3dB 10Hz to 55KHz @ 6-60 dB gain.
Line Input to Mix Output	<0, -0.3dB <100Hz to 60KHz @ 0 dB gain.
Distortion/Noise (T.H.D +Noise) at +15dBu Output
Mic XLR Input to any Output (-20dBu input)	<0.003%
Line Input to any Output	<0.003%
Monitor/Tape Return Input to any Output	<0.003%
Noise
Mic EIN (20-20KHz, 150Ω source, 60dB gain)	<-128 dBu
Residual Bus Noise (Output fader at min)	<-95 dBu
Bus Noise (40 inputs continually assigned)	<-80 dBu
(24 Input Mon/Tape Returns, 8 Stereo EFX Returns and 8 Master Tape Returns)
Bus Noise (24 inputs routed equiv. to 64 Inputs)	<-77 dBu
Crosstalk
Adjacent Channel	< -90dB (@20KHz)
	<-110dB (@1KHz)
Channel Fader Mute	<-100dB (20Hz to 20KHz)
Monitor/Tape Return Mute	<-85dB (20Hz to 20KHz)
Mix/Bus Assign	<-80dB (20Hz to 20KHz)
Aux to Aux	<-75dB (20Hz to 20KHz)
Maximum Input
Mic (XLR) Input (at min gain)	+10dBu
Line (at min gain)	+37dBu
Channel Insert Return	+22dBu
All Output Insert Returns	+22dBu
Maximum Output
Mix, Group, Aux, Monitor Outputs	+26.5dBu (Into 600Ω)
Insert Send, Studio, Alt Outputs	+22dBu (Into 2KΩ)
Phase
Mic Input to Direct Out	+20º to -1º 20Hz to 20Khz
Mic In to Mix Output	+23º to -12º 20Hz to 20Khz
Line In to Mix Output	+13º to -15º 20Hz to 20Khz
Monitor/Tape Return to Mix Output	+8º to -12º 20Hz to 20Khz



Product Dimensions

Dimensions
	Width (side to side including side panels)	Depth (front to back)	Height (top to bottom)
16 Channel:	33.37” (84.759cm)	28.750” (73.025cm)	12.293” (31.224cm)
24 Channel:	43.37” (110.159cm)	28.750” (73.025cm)	12.293” (31.224cm)
Input Module (8 Channels): 9.980” (25.350cm)
Master Module: 1.230” (3.124cm)
Group Module (8 Channels): 9.980” (25.350cm)
