Telefunken U47

SKU: U47
$ 9,995.00 -15%
$ 8,495.00
Wishlist

Upon first glance of the new U47 from TELEFUNKEN Elektroakustik, it's easy to see the "family resemblance." The large, chrome head grille houses a newly manufactured M7 capsule. Its matte nickel finished body houses a new BV8 output transformer and a newly developed VF14k vacuum tube; a "plug and play" replacement for the rare VF14M tubes found in the original. The classic "TELEFUNKEN" diamond logo proudly adorns the front of the body tube. All of these accoutrements show that this microphone means business.

Since its original development in 1946, the TELEFUNKEN U47 has been the microphone of choice for generations of recording professionals. The first condenser microphone to offer selectable polar patterns (cardioid and omnidirectional), the original U47 also featured the famous M7 capsule which had been developed in 1928 by Georg Neumann. To this capsule was added an amplifier built from military surplus VF14 tubes (they had been used in field and aircraft radios), and BV8 output transformers. The combination of these components created a sonic quality that was absolutely unheard of in the English speaking world of the mid-1940s when darker sounding, less detailed ribbon microphones were the standard. The introduction of the U47 brought a new level of fidelity to the audio world, and is still considered to be one of the finest microphones ever produced.

Whether you're recording a symphony, a "crooner," or any facet of modern music, you'll find a great tool in the U47. Its authoritative mid-range and extended low-end response dance from your ears . . . much as a vintage wine dances from the palate. Everything, from vocals to the loudest of guitar sounds, full on orchestral recording, beautiful backing vocal arrangements, or a chamber ensemble will benefit wildly from the rich and vibrant tone of this stunning microphone.

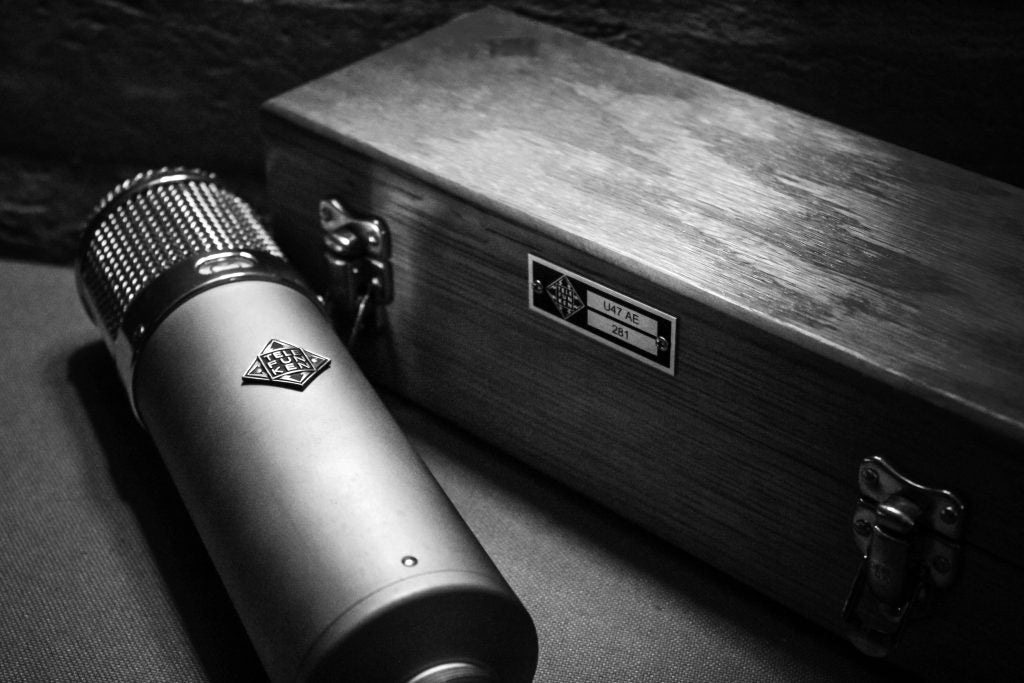

Each U47 microphone system comes complete with M940 power supply, M840 25' dual-shielded ACX-7 tube microphone cable, M740 elastic shock mount, FC40 locking flight case and WB40 wooden microphone box.



Specifications

Type Pressure                Gradient Condenser

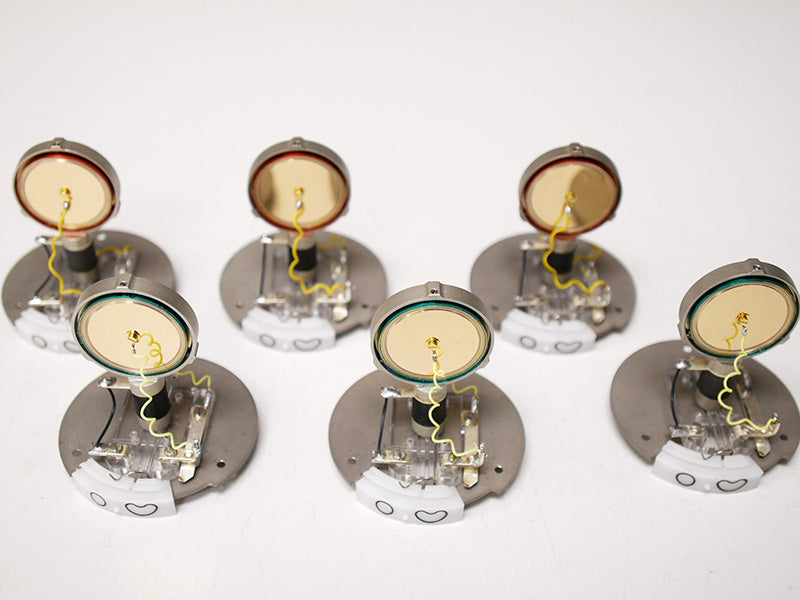

Capsule                           M7 - 25.4 mm Center Terminated Diaphragm
Tube Type                       TELEFUNKEN Elektroakustik VF14K
Transformer                     Custom Wound Telefunken BV8
Polar Pattern                   Cardioid, Omnidirectional
Frequency Range           20 Hz - 20 kHz, ± 3 dB
Sensitivity                        24.5 mV/Pa ±1 dB
THD at 1kHz at 1Pa (Amplifier) <0.3%
Output Impedance           400 Ω
Maximum SPL (for 1% THD) 127 dB
S/N Ratio                         85 dBA
Self Noise (Amplifier)      9 dBA
Dimensions / Size           240 mm L x 60 mm Dia.
Weight                             620 g
Current Draw from Mains 85 mA
Power Supply                  M 940H PSU - Vintage Compatible 6 Pin Female Tuchel Input, 3 Pin Male XLR                                              Output
Cable                                M 840H - 25 ft Sommer SC-Square 4-Core Cable, Vintage Compatible 6 Pin                                                  Male & Female Tuchel

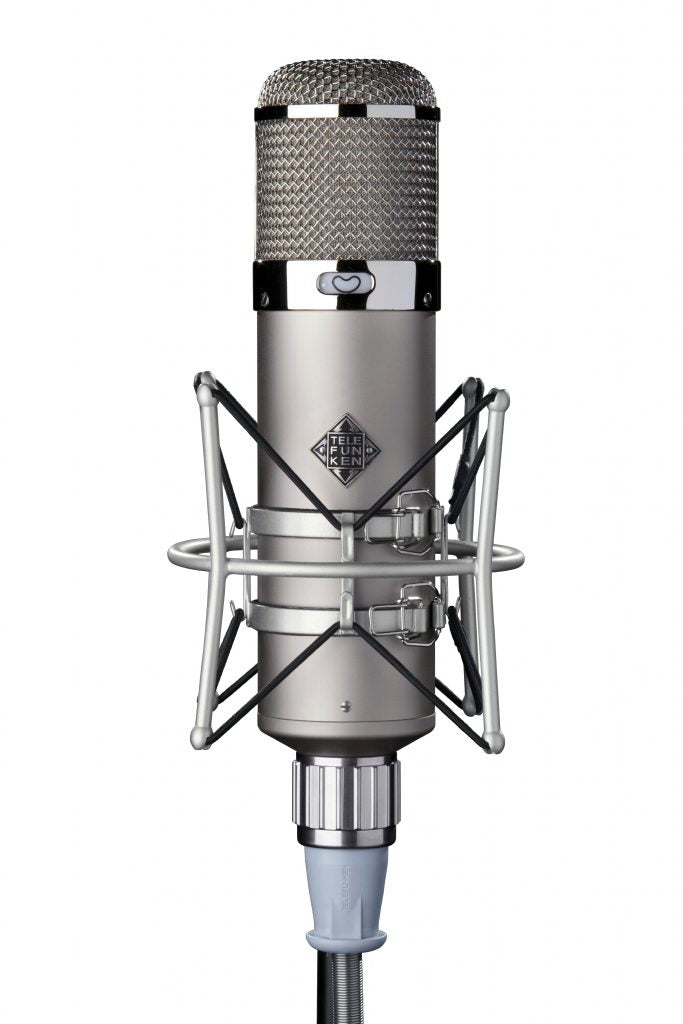

Shockmount                     M 740 - Clasping Elastic Mount

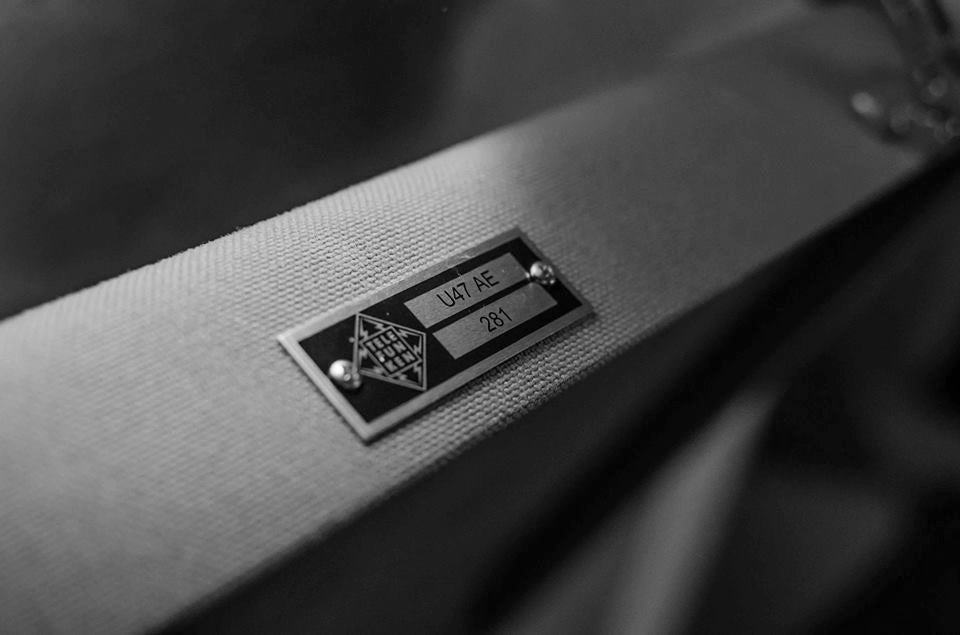

Wooden Box                    WB40
Flight Case                       FC40 - Vintage Style Locking Combination Flight Case, FC40S for Stereo Set
