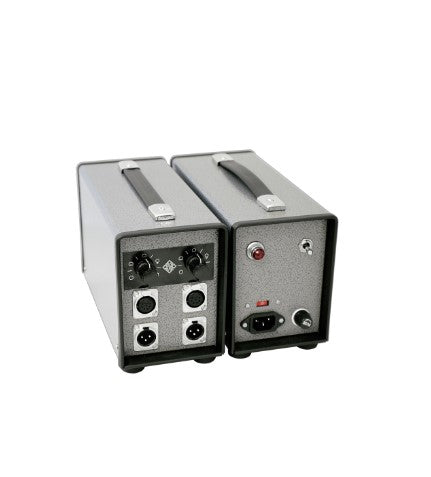

Dual Power Supply for TF39, TF47 and TF51 Microphones with Three-Pattern Selector Switch (Cardioid, Omnidirectional, Figure-8)
TELEFUNKEN Elektroakustik’s premium power supplies feature the traditional styling of vintage Austrian models, partnered with the improvements of modern component technology and circuit board design. These modern improvements include a slow-ramping filament voltage to extend tube life and full regulation to ensure the microphone will always operate the same, regardless of line voltage variations or location. Full regulation also means that stereo power supplies can also safely power only one microphone at a time at correct operating voltages, if needed.
These units are hand-built in South Windsor, CT, USA with premium components including Signal Transformers, Nichicon capacitors, Neutrik connectors, double-thick circuit boards for structural integrity, and a PCB layout made to maximize current handling. They are built well over-spec to ensure reliability and safe operation for decades. Each power supply is calibrated to the specific microphone system it comes with. They are burned in as a full unit to ensure optimum performance and operation.
TELEFUNKEN Elektroakustik variable pattern power supplies feature nine polar patterns, from Omnidirectional to Figure 8. The polarizing component network is identical to that of the original AKG C12 power supplies, providing the optimal impedance and voltage to the capsule.
7-Pin XLR Pin-out:
1 – B+ (120VDC)
2 – Heater (6VDC)
3 – Polarizing (0-120VDC)
4 – Ground
5 – Audio (-)
6 – Audio (+)
7 – Ground
