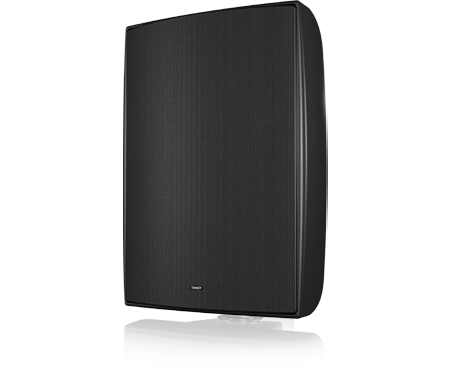

Tannoy DVS 8T

SKU: dvs8twh
$ 349.00
Wishlist
Full range surface-mount loudspeaker for indoor and outdoor installation applications

70 Watts continuous, 280 Watts peak power

8” mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability

0.75" ferrofluid cooled soft dome neodymium high frequency driver

80° constant directivity dispersion for optimum coverage

UL 1480 certified for general signalling systems

UV and weather resistant UL 94 V-0 ABS enclosure

Multiple transformer taps for 70 V and 100 V line systems

Low insertion loss 60 W line transformer with easily accessible tapping switch

All components weather resistant to IP64 for outdoor use

Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment

Painted perforated aluminium mesh grille with dust protection


Yoke bracket included for ease of installation

Phoenix* connectors input and link output

Designed and engineered in the U.K.

Performance

Frequency response (-3 dB)1 75 Hz - 20 kHz
Frequency response (-10 dB)1 60 Hz - 30 kHz
System sensitivity (1 W @ 1 m)2 90 dB
Dispersion (-6 dB) 80 degrees conical
Transducers Coaxial
Low frequency 200 mm (8.00") mineral loaded cone material
High frequency 20 mm (0.79)
Crossover 3.4 kHz - 2nd order LF, 2nd order HF
Directivity (Q) 12.3 averaged 1 kHz to 10 kHz
Directivity (DI) 10.0 averaged 1 kHz to 10 kHz
Rated maximum SPL 2 108 dB (average)
114 dB (peak)

Transformer Version

Transformer taps
70 V 60 W (83 Ω) / 30 W (165 Ω) /
15 W (330 Ω) / 7.5 W (660 Ω) /
OFF & low impedance operation
100 V 60 W (165 Ω) / 30 W (330 Ω) / 15 W (660 Ω) /
OFF & low impedance operation
Maximum wire gauge for connector 2.5 mm CSA (AWG12)
Safety Agency Ratings UL-1480, CE

Power Handling

Average 70 W
Programme 140 W
Peak 280 W
Recommended amplifier power 140 W @ 6 Ohms
Nominal impedance 6 Ohms

Construction

Enclosure ABS
Grille Aluminium, painted
Connectors Euroblock type removable locking connector with screw terminals with “loop through” facility
Supplied accessories Yoke bracket
Packed quantity 2
Dimensions (H x W x D) 451.8 x 290.0 x 296.0 mm
(17.79 x 11.42 x 11.65")
Non-transformer versions
Net weight 5.7 kg (12.6 lbs)
Shipped weight 14.5 kg (32 lbs)
Transformer versions
Net weight 7 kg (15.4 lbs)
Shipped weight 17.1 kg (37.7 lbs)
