$ 133.00
Wishlist

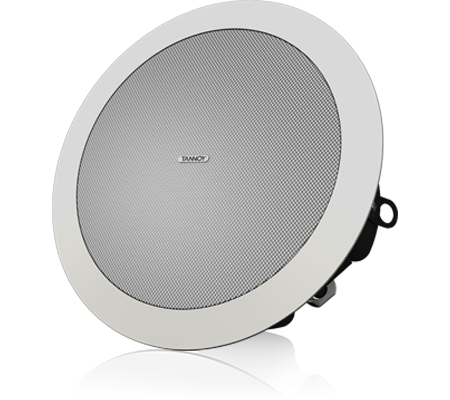

Coaxial full range low profile ceiling loudspeaker for installation applications

40 Watts continuous, 160 Watts peak power

Shallow back can for limited cavity space

4” mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability

0.75" ferrofluid cooled soft dome neodymium high frequency driver

Wide constant directivity dispersion for optimum coverage

UL 1480 certified for fire-protected signalling systems

UL 2043 certified for air-handling spaces

UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure

Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input

Low insertion loss 15 W line transformer with easily accessible tapping switch

Semi matt white finish fits unobtrusively in any environment

Powder coated perforated steel mesh grille with dust protection

Mounting C-ring and ceiling tile rails included

Phoenix* connector with steel cover and strain relief clamping mechanism for fire rated cable

Designed and engineered in the U.K.

System

Frequency response (-3 dB)1 110Hz - 19kHz
Frequency response (-10 dB)1 90Hz - 22kHz
System Sensitivity (1 W @ 1 m)2
Nominal Coverage Angle 90 degrees conical
Coverage Angle (1 kHz to 6 kHz) 102 degrees
Directivity Factor (Q) 5.6 averaged 1 kHz to 6 kHz
Directivity Index (DI) 7.1 averaged 1 kHz to 6 kHz
Rated Maximum SPL 103 dB (average)
109 dB (peak)
Power Handling3
Average 40 W
Programme 80 W
Peak 160 W
Recommended Amplifier Power 80 W @ 6 Ohms
Nominal Impedance 6 Ohms
Transformer Taps (via front rotary switch)
70 V 15 W / 7.5 W / 3.75 W / 1.9 W /
OFF & low impedance operation
100 V 15 W / 7.5 W / 3.75 W /
OFF & low impedance operation

Transducers

Low Frequency 100 mm (4.00") mineral loaded
cone material
High Frequency 19 mm (0.75")

Physical

Enclosure
Back can Zinc plated steel | Painted steel
Baffle Reflex loaded UL 94V-0 rated ABS
Grille Steel, with weather resistant coating
Safety Features Safety ring located at rear of enclosure for
load bearing safety bond
Clamping Design Security toggle clamp

Back Can Options

Cable Entry Options Cable clamp & squeeze connector for
conduit up to 22 mm
Connectors Removable locking connector with screw
terminals with “loop through” facility
Safety Agency Ratings UL-1480, UL-2043, CE
Hole Cutout Diameter 180 mm (7.08")
Dimensions Bezel diameter 213.0 mm (8.39")
Front of ceiling to rear of back can 98.3mm (3.87”)
Front of ceiling to top of safety loop 214.9 mm (8.46")
Net Weight (ea) 2.8 kg (6.2 lbs)
Included Accessories C Ring, tile bridge, paint mask,
cutout template, grille
Optional Accessories Plaster (mud) ring
