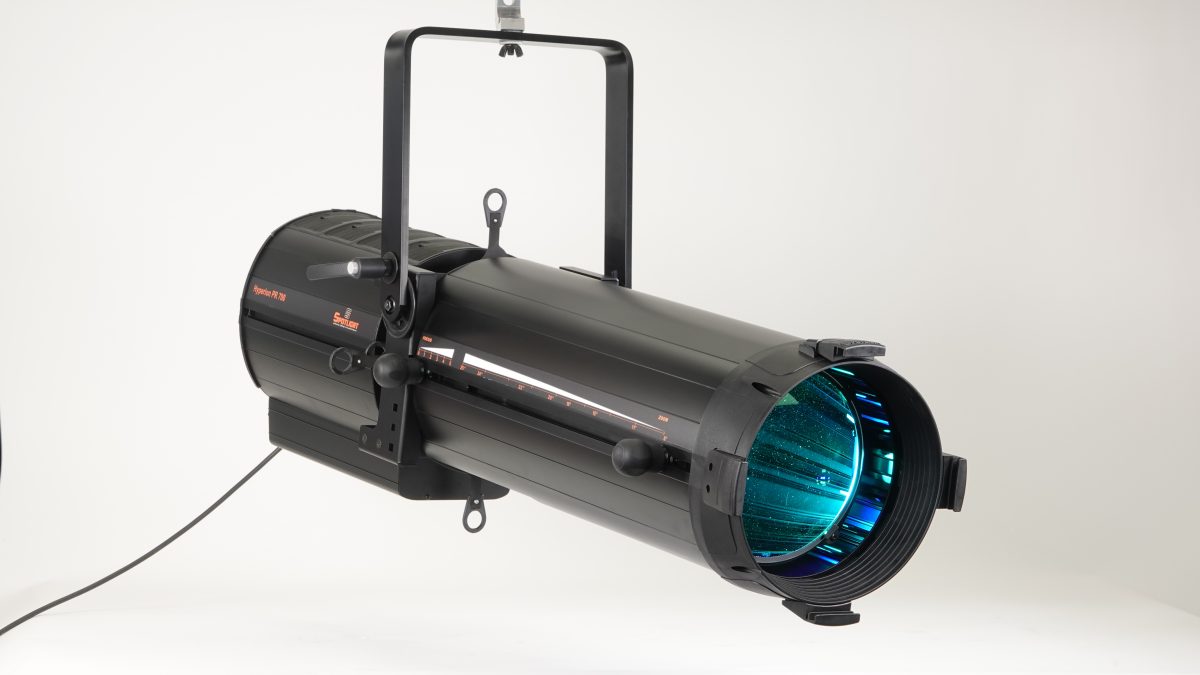

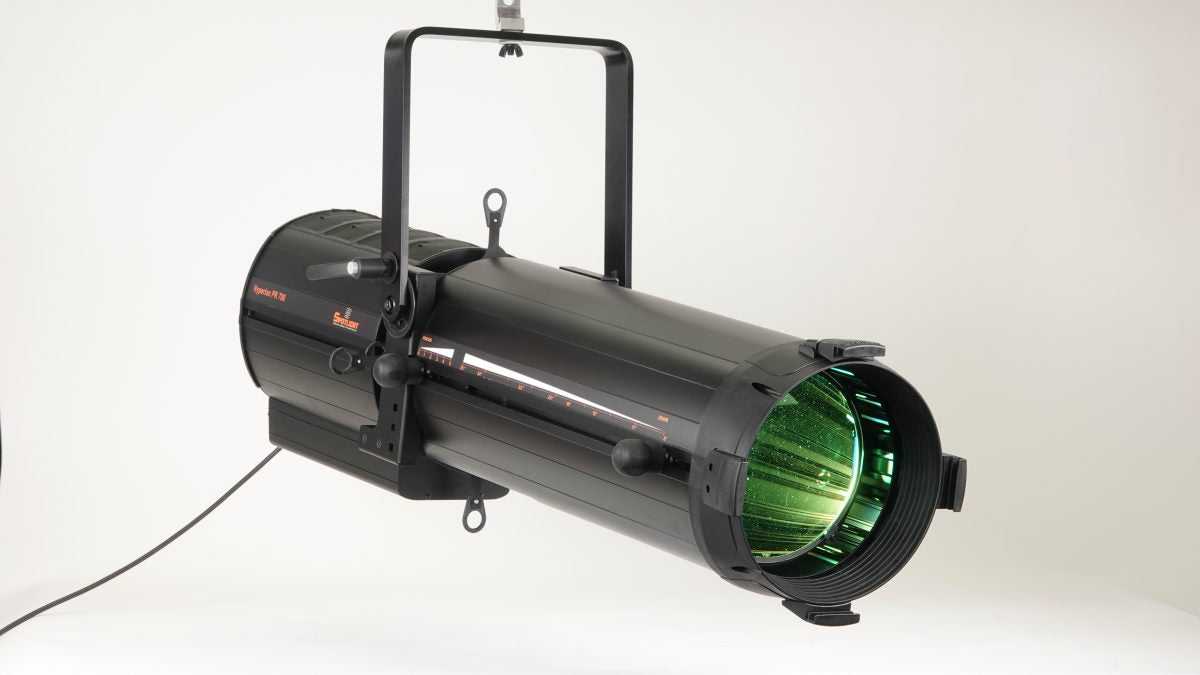

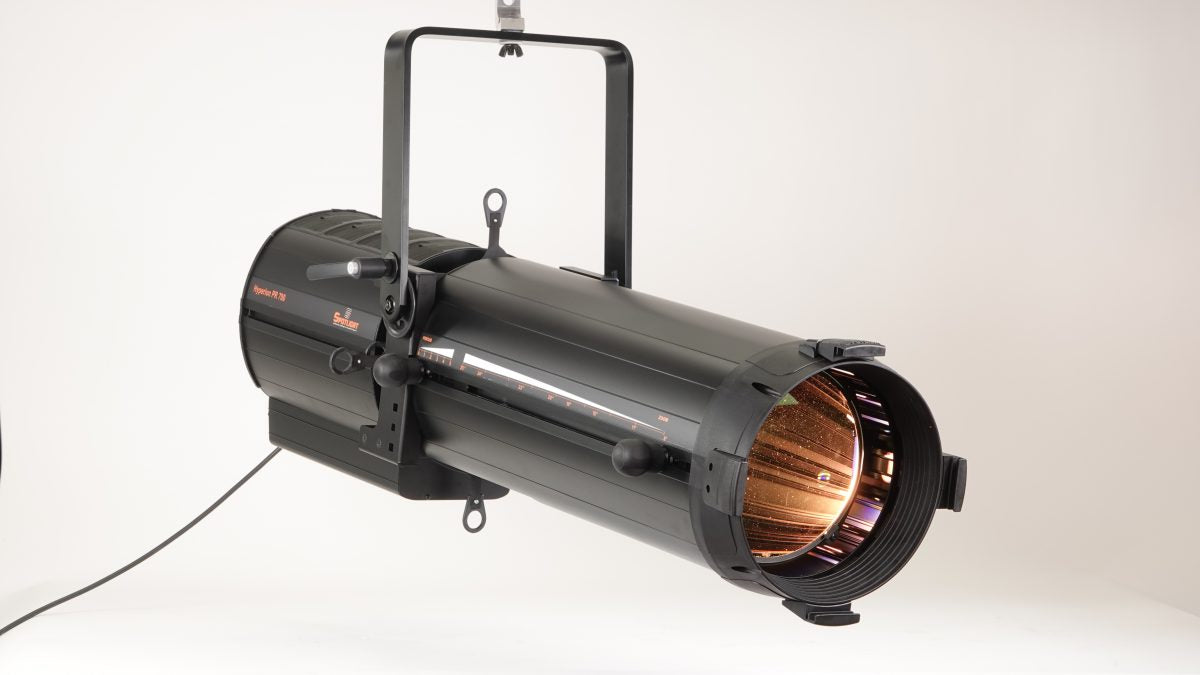

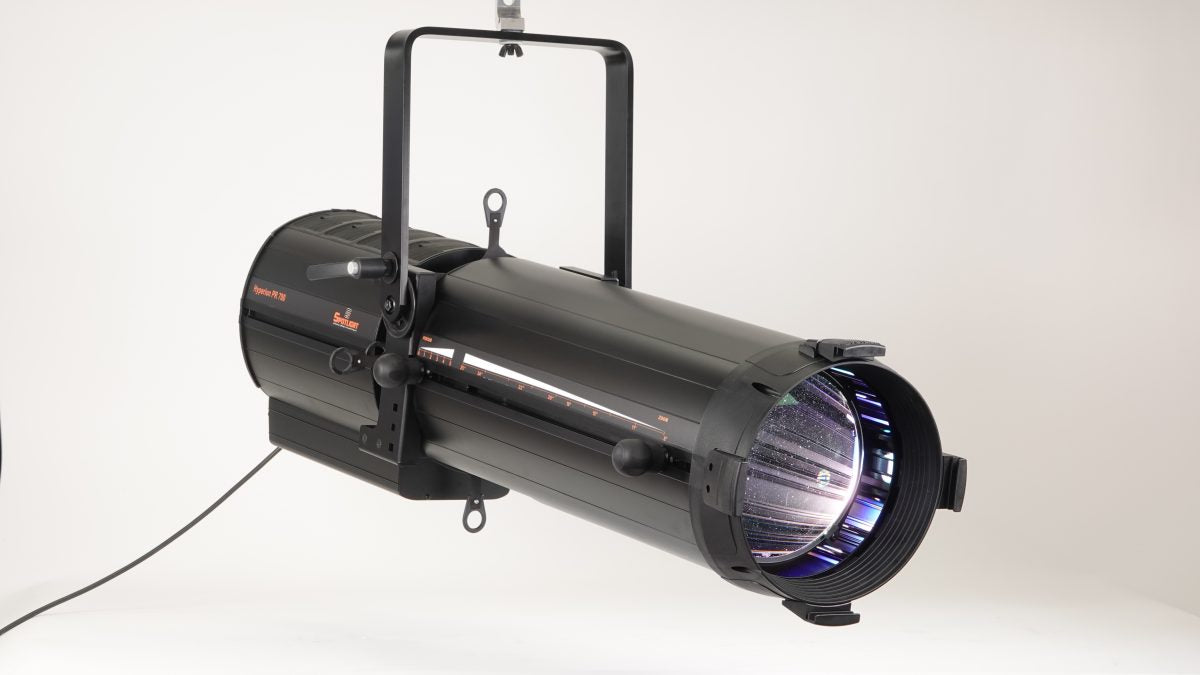

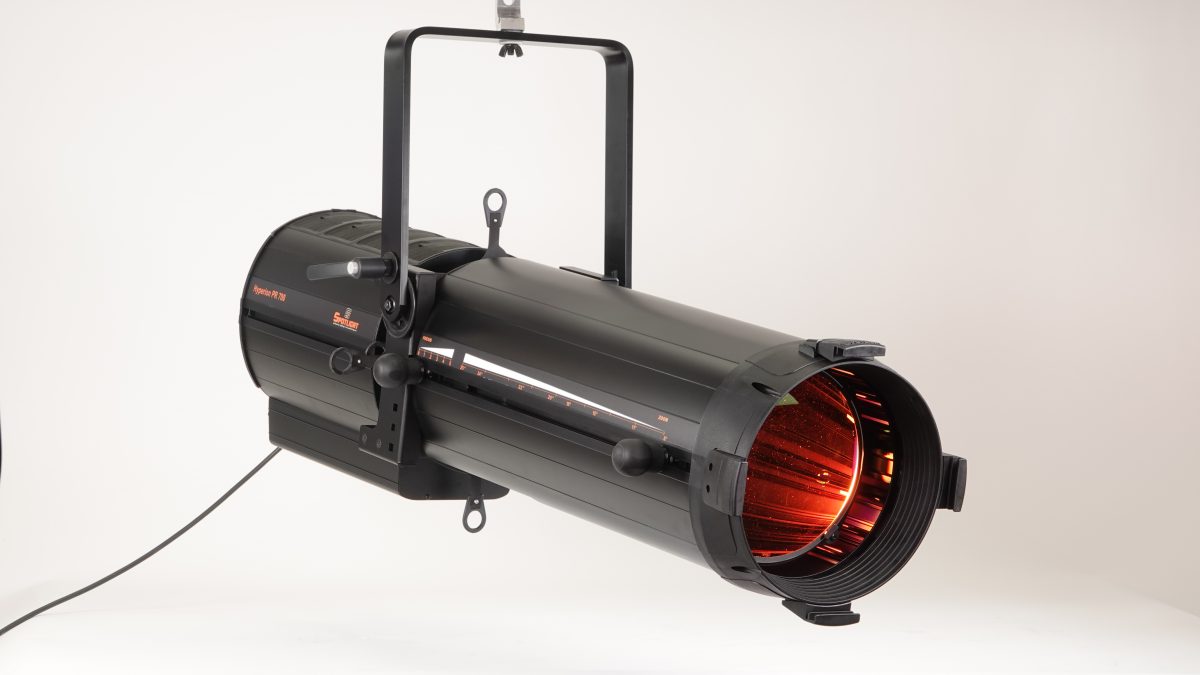

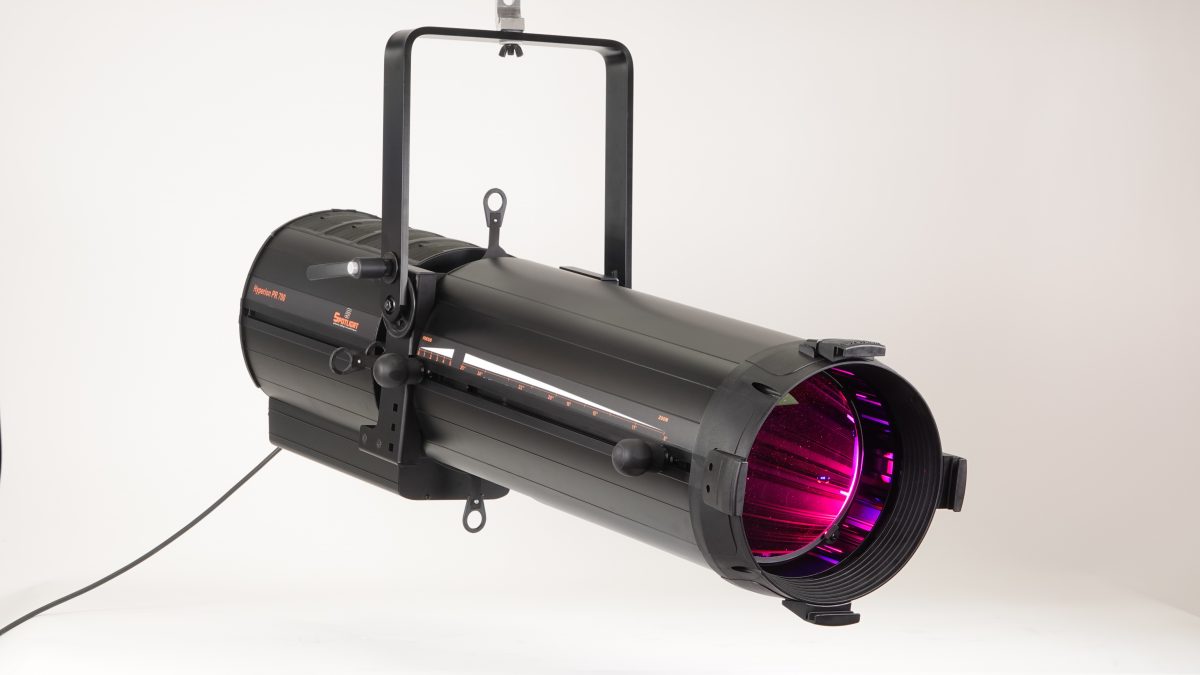

Spotlight Profiles Hyperion 700W

Sale price$ 6,659.00
SKU: SL-PR HY LED 700 ZS CW

Color Tempratures & Accessories: Profile LED 700W, zoom 08°-25°, white 5600K, DMX

Color Tempratures & Accessories

Call us at 1-877-223-8858 or Ask a Question below

Spotlight Profiles Hyperion 700W

Model

Spotlight Profiles Hyperion 700W

The Profile spot projects a circular beam of light. When using a zoom version, the size of the projected beam can be adjusted by simply moving the built-in objective lenses. The application of accent lighting is enriched by the flexibility of the profile zoom, due to the variable beam option of the optical zoom lens. The Profile zoom is ideal as a gobo projector with the added flexibility of the zoom optics, and again accepts standard or custom gobos.

  • Constant color temperature during dimming
  • Ultra-soft regulation of intensity through pre-set dimmer curves
  • Adjustable forced ventilation
  • Cooling system with high performance heat pipes
  • Adjustable fork for correct headlight balancing
  • LED temperature control and management system for maintaining the optimal operating ranges
  • Remote control of fixture functions (DMX-RDM)

Projectors equipped with two lenses (focus lens and zoom lens) both adjustable which allow to obtain projections with precise outlines (in focus) and adjustable width (zoom).

They are equipped with an adjustable fork and shaping slats, which allow you to cut the light beam and obtain not only circular projections.

They are used for accent and precision lighting, to shape geometric shapes and figures such as paintings or architectural elements and for the projection of logos and images, called gobos.

The housing is IP20 rating, made by rugged, highly resistant extruded aluminum, free of defects such as burrs, pits and malformations, in combination with lightweight fiber glass enforced hammer proof techno-polymer parts.

The housing doesn’t present any sharp edge and be made with a durable yet lightweight and rustproof construction with excellent mechanical strength for longer life also in presence of high humidity.

Finish is shockproof with anti-scratch epoxy raisin powder coating non-reflective black finish with electrostatic application.

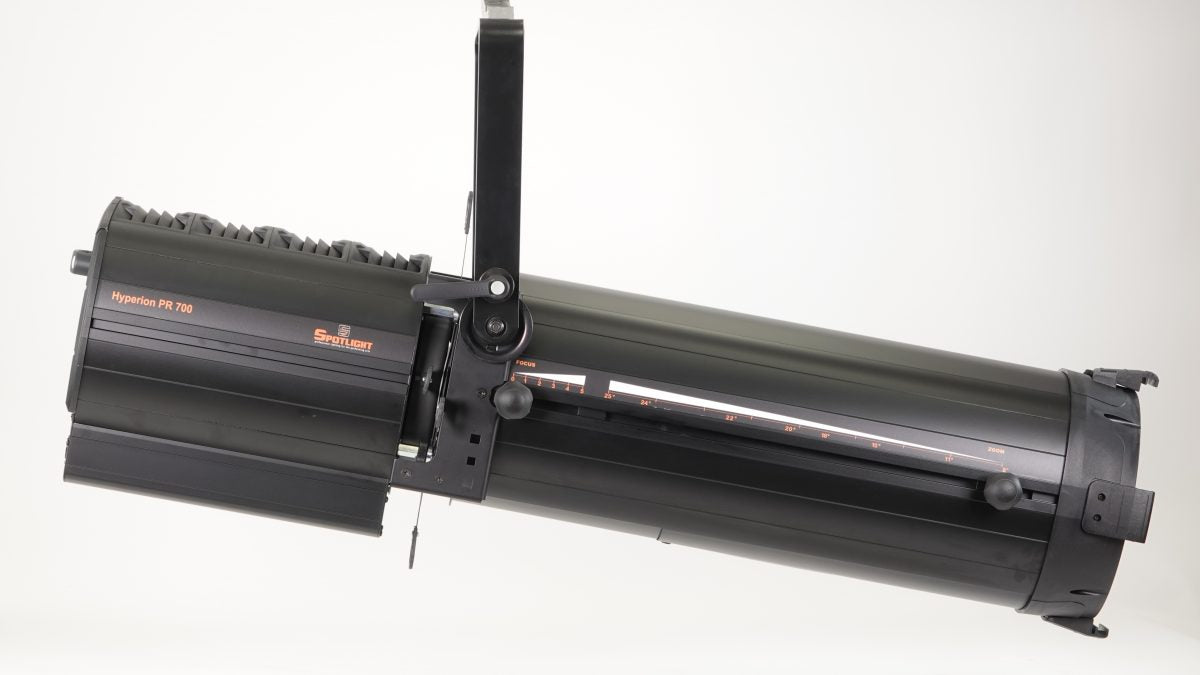

The fixture has a rugged rustproof aluminum yoke, reversible and adjustable in height, with fast balancing technology, mounted into extruded aluminum sliding rail for any positioning of the yoke.

The fixture can easily stand on the floor without other accessories thanks to a quick adjustable and extremely flexible yoke positioning.

The fixture has a display equipped with a 4 buttons for local control.

The fixture utilizes an advanced thermal management system to maintain LED life to an average of 70% intensity after 54,000 hours of use.

The thermal management system is based on the combination of two cooling systems:

– a passive natural heat convection and

– a super silent active cooling system, also controllable via lighting desk

The passive natural heat convection is guaranteed by excellent LED cooling due to very large and effective double labyrinth dissipation, which at the same time avoid any light spillage over the entire top and the back part of the fixture.

The active cooling system is guaranteed by a forced dissipation of heat using a fan, allowing to intervene on the speed and therefore on the noise of the fans.

The thermal management system includes multiple temperature sensors to avoid an early LED deterioration. In addition a fan speed software allows to override DMX fan speed setting or the current to the LED array in order to prevent heat damages of the fixture that brings lifespan at risk.

The focusing is made by very accurate soft fine-tuning endless screw zoom mechanism placed inside the housing in order to guarantee that the size and balance of the fixture remain stable in any position, even with barndoors and filter frames in front.

The projection has a very precise variable beam angle fine adjustment without jerkins.

The optical system guarantees a powerful uniform light output without pixilation thanks to a high-quality glass lenses with AR Anti Reflex coating and PMMA lenses.

The lense is mounted onto extended holders to allow the best ventilation.

Power supply:

The fixture has the PSU driver and dimmer electronic integrated on board.

The fixture is equipped with an internal auto sensing power supply with an input range from 100V to 240V – 50/60 Hz protect by on board fuse

The efficiency should be PF>0.94/230VAC PF>0.98/115VAC at full load

Power connector:

– lockable Neutrik® PowerCON True1 TOP main input connector

– lockable Neutrik® PowerCON True1 TOP main through connector

The fixture supports power in and thru operation up to 16A

Control (DMX signal):

– international standard with XLR 5-pole in/out connectors

The fixtures can be linked together with standard DMX cable

The Hyperion Series Spotlights are able to emulate the performance of a halogen lamp.

In the continuous search to satisfy “nostalgic” light designers of halogen light and to get closer to the natural perception that the human eye has of an object illuminated with LED, it is not enough that the static light simulates halogen light, but that it is also dynamic regulation. For an LED headlight to behave like a halogen headlight, there are three aspects to consider:

the dimmer curve which represents the inertia with which the light is returned by the source according to the signal it receives. It can be set up as linear or quadratic with “slow release” curvature.

the delay, i.e. the “delay” with which a filament begins to emit light after it receives the electrical stimulus. Shift the curve by milliseconds, adjustable.

the amber shift effect, it is a “defect” or imperfection typical of the halogen lamp which allows a slight amber/orange color change to which a halogen lamp tends when it is dimmed, reducing its emission.

All Hyperion Series fixtures include features to resolve or minimize these disturbances. For example:

Silent mode – in order to work properly, a lighthouse needs a cooling system, which can be passive (radiator type) or active (presence of fans that “blow” the hot air away to make the source work within a range temperature considered ideal). The silent mode function allows you to intervene on the speed and therefore on the noise of these fans: an algorithm detects the internal temperatures from the thermostat and controls the current to ensure continuous operation of the light, preventing damage or shutdowns. In some situations, for example in the lighting park above the symphony orchestra or in some art museums, “absolute silence” is required, therefore it is necessary to be able to deactivate the operation of the fans.

Flicker free – when filming a show with cameras or even simply with the smartphone video camera it is possible that annoying oscillations (flickering) appear on the screen due to the frequency conflict between the emission of the LED light and the scanning of the brush of the receiving camera. This conflict must be resolved by acting on the camera recording parameters or on the LED source parameters.

Booster – this is a function that allows the light emission of the individual channels to be increased up to +20%, when a tint or a CCT value is selected in which not all channels are at full. A microprocessor monitors the working temperature of the LED and updates the source control parameters in real time.

Stand alone – this funciotn allows to control one or more fixtures without using a console. In fact, the software allows you to create one or more static colors and to define the duration and sequence of each one.

The function can be set on a single fixture or on a group of fixtures. In this second case it is necessary to define the “master” fixture and the “slave” ones.

Additional advanced functions available in color versions:

Plus/Minus Green – this is a function that allows fine tuning of the green component of the selected CCT.

Calibration – when a group of fixtures is used, it may happen that one or more of them, with the same DMX values, have a color component (e.g.: red) to be “corrected” to make the tint uniform to that of the other fixtures. This function allows you to modify the spectrometric curve of a fixture, intervening on the contribution of the single color of the array.

Custom presets – in addition to a rich library of “factory” colors (standard presets), it is possible to create and save up to 10 colors within a second library (custom presets).

Two dedicated DMX channels, one for the main LEE filters (241 colors) and one for the main ROSCO filters (236 colors)

In tunable white and color versions, it is possible to set the color temperature of the white from the projector menu. The range varies depending on the source:

  • TW version: from 2,700K to 6,500K
  • RGBW version: from 2,700K to 8,000K

6/8 color version: from 1,500K to 20,000K

In white versions, it is possible to choose from the following color temperatures:

  • WW version: 3’000K
  • CW version: 5’600K

other color temperatures on request between 2’700K and 6’500K

The fixture offers the possibility to choose one of the following dimming curves, each of them optimized for smooth dimming at low intensities and over longer timed fades: linear, halo, quadratic, gamma 2.6, gamma 2.8 and curve s.

The fixture features control of intensity in 8bit or in 16bit mode (for high-resolution dimming) without any exhibiting flicker, stepping or jumping.

The fixture guarantees a very smooth dimming of intensity from 0% to 100% and vice-versa.

A special algorithm ensures that the color temperature remains constant during dimming.

In this version the DMX signal is transmitted via cable from the console (or splitter) to a transmitter which converts it into a radio signal which is transmitted again to a receiver mounted on the fixture. This solution is useful in those situations where the use of the cable is not possible or is not recommended for excessive distances.

Compatible with Multiverse ® by City Theatrical technology.

The fixture is provided with warranty of:

– 3 years for defect resulting from faulty materials or workmanship

– 5 years on the availability of its spare parts and components
