Spotlight Follow Spots Hyperion 700W

Name: Spotlight Follow Spots Hyperion 700W
Brand: Spotlight
SKU: SL-FS HY LED 700 CW
Price: 8899.0 USD
Availability: InStock

$ 8,899.00

SKU: SL-FS HY LED 700 CW

Color option & Accessories:

Followspot LED 700W, zoom 07°-14°, white 5600K, DMX, built-in colour changer

Variant

QTY:

Apply for Financing PADvantage

Call us at 1-877-223-8858 or Ask a Question below

Spotlight Spotlight Follow Spots Hyperion 700W

$ 8,899.00

Spotlight Follow Spots Hyperion 700W

Model

Spotlight Follow Spots Hyperion 700W

The fixture is available with only one LED engine and complies with the USITT DMX 512A and ANSI RDM E 1.20 protocol standard

The housing is IP20 rating, made by rugged, highly resistant extruded aluminum, free of defects such as burrs, pits and malformations, in combination with lightweight fiber glass enforced hammer proof techno-polymer parts.

The housing doesn’t present any sharp edge and be made with a durable yet lightweight and rustproof construction with excellent mechanical strength for longer life also in presence of high humidity.

Finish is shockproof with anti-scratch epoxy raisin powder coating non-reflective black finish with electrostatic application.

The fixture has a rugged rustproof aluminum yoke, reversible and adjustable in height, with fast balancing technology, mounted into extruded aluminum sliding rail for any positioning of the yoke.

The fixture can easily stand on the floor without other accessories thanks to a quick adjustable and extremely flexible yoke positioning.

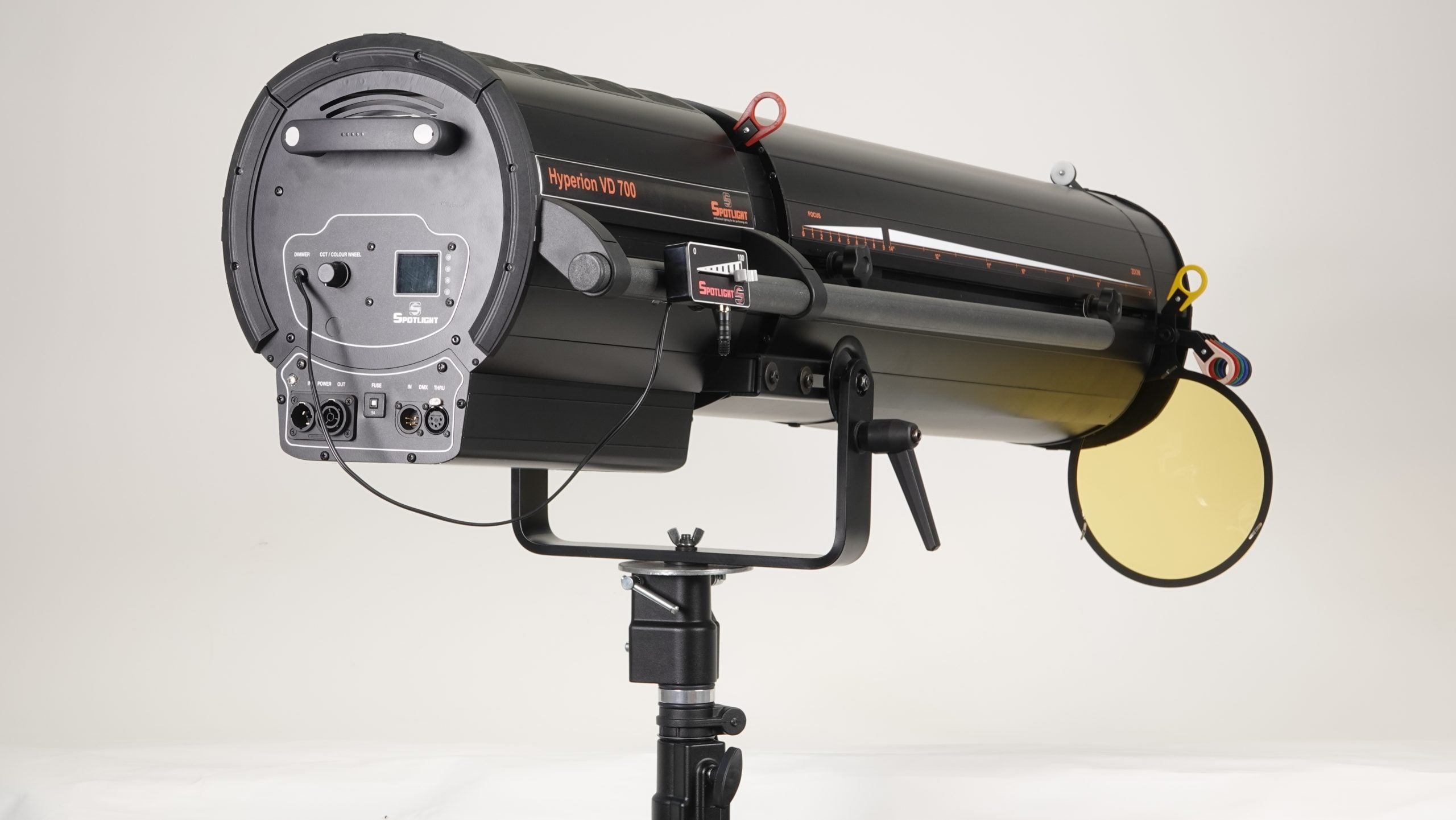

The fixture has a display equipped with a 4 buttons for local control.

The fixture utilizes an advanced thermal management system to maintain LED life to an average of 70% intensity after 54,000 hours of use.

The thermal management system is based on the combination of two cooling systems:

– a passive natural heat convection and

– a super silent active cooling system, also controllable via lighting desk

The passive natural heat convection is guaranteed by excellent LED cooling due to very large and effective double labyrinth dissipation, which at the same time avoid any light spillage over the entire top and the back part of the fixture.

The active cooling system is guaranteed by a forced dissipation of heat using a fan, allowing to intervene on the speed and therefore on the noise of the fans.

The thermal management system includes multiple temperature sensors to avoid an early LED deterioration. In addition a fan speed software allows to override DMX fan speed setting or the current to the LED array in order to prevent heat damages of the fixture that brings lifespan at risk.

The focusing is made by very accurate soft fine-tuning endless screw zoom mechanism placed inside the housing in order to guarantee that the size and balance of the fixture remain stable in any position, even with barndoors and filter frames in front.

The projection has a very precise variable beam angle fine adjustment without jerkins.

The optical system guarantees a powerful uniform light output without pixilation thanks to a high-quality glass lenses with AR Anti Reflex coating and PMMA lenses.

The lense is mounted onto extended holders to allow the best ventilation.

Power supply:

The fixture has the PSU driver and dimmer electronic integrated on board.

The fixture is equipped with an internal auto sensing power supply with an input range from 100V to 240V – 50/60 Hz protect by on board fuse

The efficiency should be PF>0.94/230VAC PF>0.98/115VAC at full load

Power connector:

– lockable Neutrik® PowerCON True1 TOP main input connector

– lockable Neutrik® PowerCON True1 TOP main through connector

The fixture supports power in and thru operation up to 16A

Control (DMX signal):

– international standard with XLR 5-pole in/out connectors

The fixtures can be linked together with standard DMX cable

The fixture is able to resolve or minimize the main disturbances.

Silent mode – in order to work properly, a lighthouse needs a cooling system, which can be passive (radiator type) or active (presence of fans that “blow” the hot air away to make the source work within a range temperature considered ideal). The silent mode function allows you to intervene on the speed and therefore on the noise of these fans: an algorithm detects the internal temperatures from the thermostat and controls the current to ensure continuous operation of the light, preventing damage or shutdowns. In some situations, for example in the lighting park above the symphony orchestra or in some art museums, “absolute silence” is required, therefore it is necessary to be able to deactivate the operation of the fans.

Flicker free – when filming a show with cameras or even simply with the smartphone video camera it is possible that annoying oscillations (flickering) appear on the screen due to the frequency conflict between the emission of the LED light and the scanning of the brush of the receiving camera. This conflict must be resolved by acting on the camera recording parameters or on the LED source parameters.fixture

The fixture offers the possibility to choose one of the following dimming curves, each of them optimized for smooth dimming at low intensities and over longer timed fades: linear, halo, quadratic, gamma 2.6, gamma 2.8 and curve s.

The fixture features control of intensity in 8bit or in 16bit mode (for high-resolution dimming) without any exhibiting flicker, stepping or jumping.

The fixture guarantees a very smooth dimming of intensity from 0% to 100% and vice-versa.

A special algorithm ensures that the color temperature remains constant during dimming.
