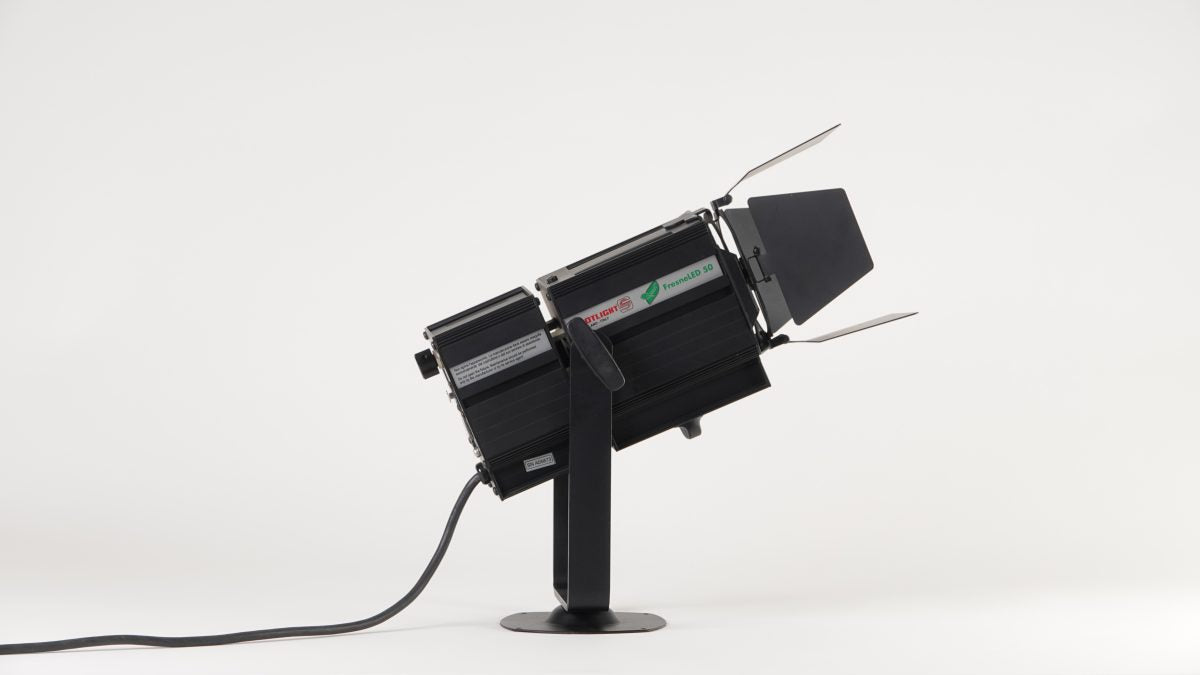

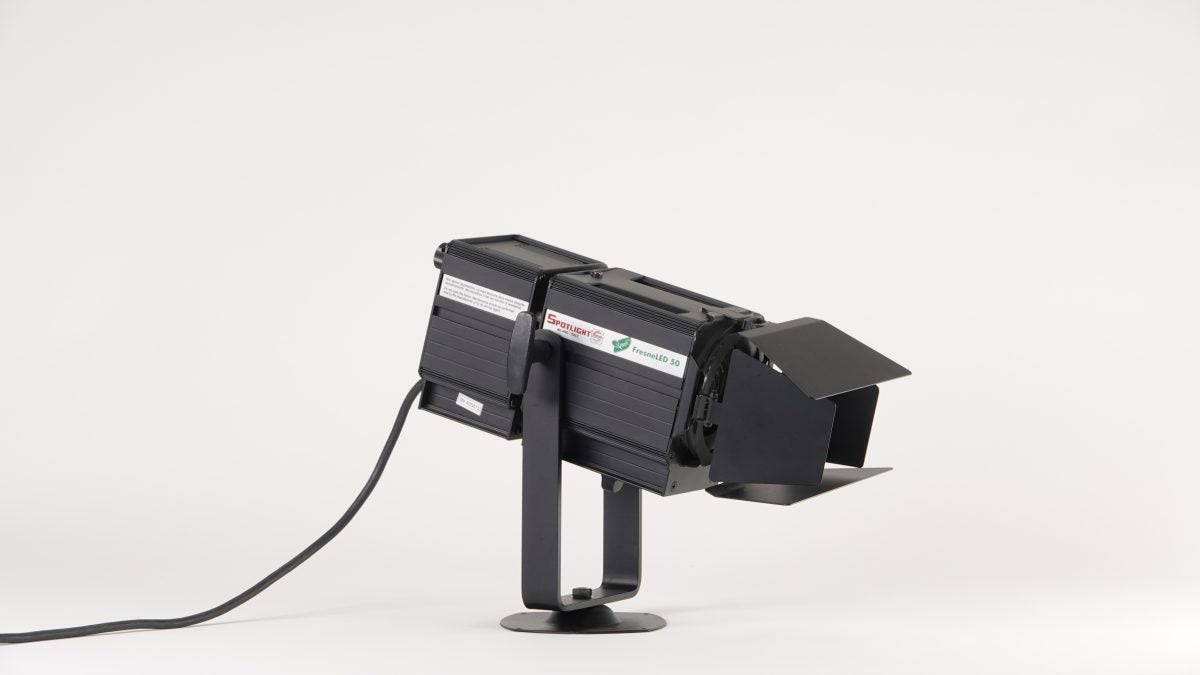

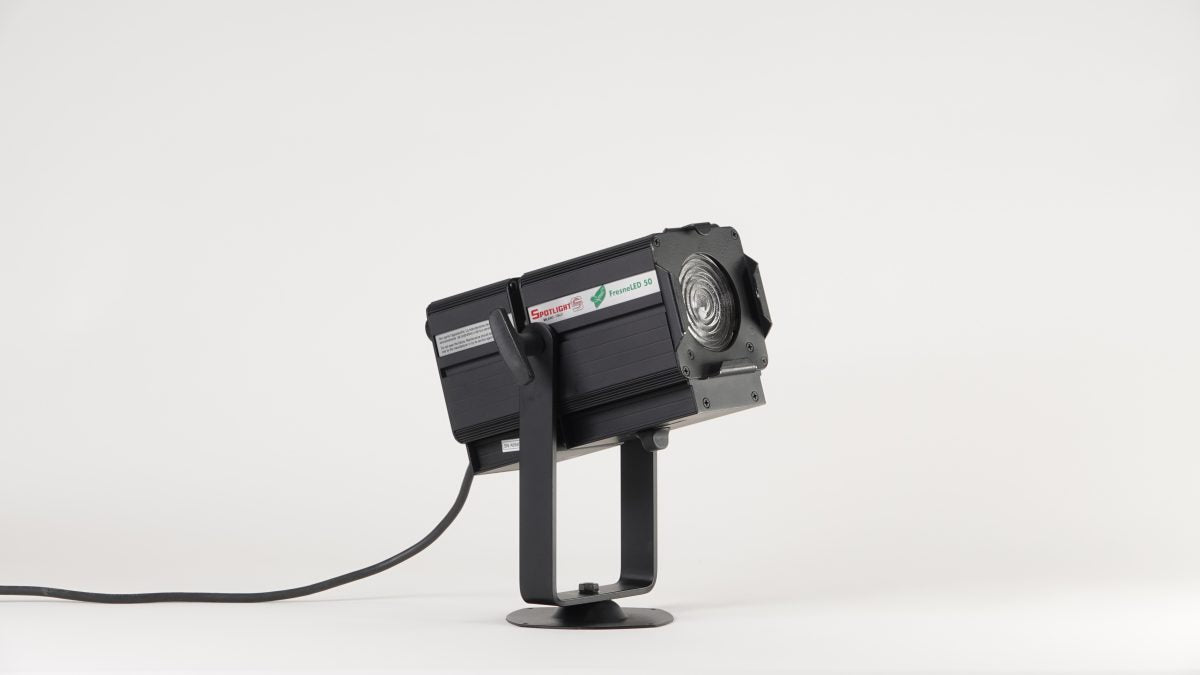

Spotlight Fresnels Green Line 50W

Name: Spotlight Fresnels Green Line 50W
Brand: Spotlight
SKU: SL-FNLED50-CW
Price: 899.0 USD
Availability: InStock

$ 899.00

SKU: SL-FNLED50-CW

Color Options:

Fresnel, LED, 50W, CW, zoom 12°-76°, 5600K, DMX

Variant

QTY:

Apply for Financing PADvantage

Call us at 1-877-223-8858 or Ask a Question below

Spotlight Spotlight Fresnels Green Line 50W

$ 899.00

Spotlight Fresnels Green Line 50W

Model

Spotlight Fresnels Green Line 50W

Light is an important element in the architectural design of space: it sets off details, it warms a room, it defines the edges of darkness, it creates and modifies shade, it shapes a thee-dimensional look to surface and it creates emotional situations for those who live in it.

The Architectural Series combines very high technological standards and contemporary design and it is suitable for several uses.

These lighting fixtures, due to their particular technical and design characteristics, are particularly suitable for use in Showrooms, Shops, Shop Windows, Clubs, Museums, Places of worship, Hotels, Fairs, Congresses and also TV Studios.

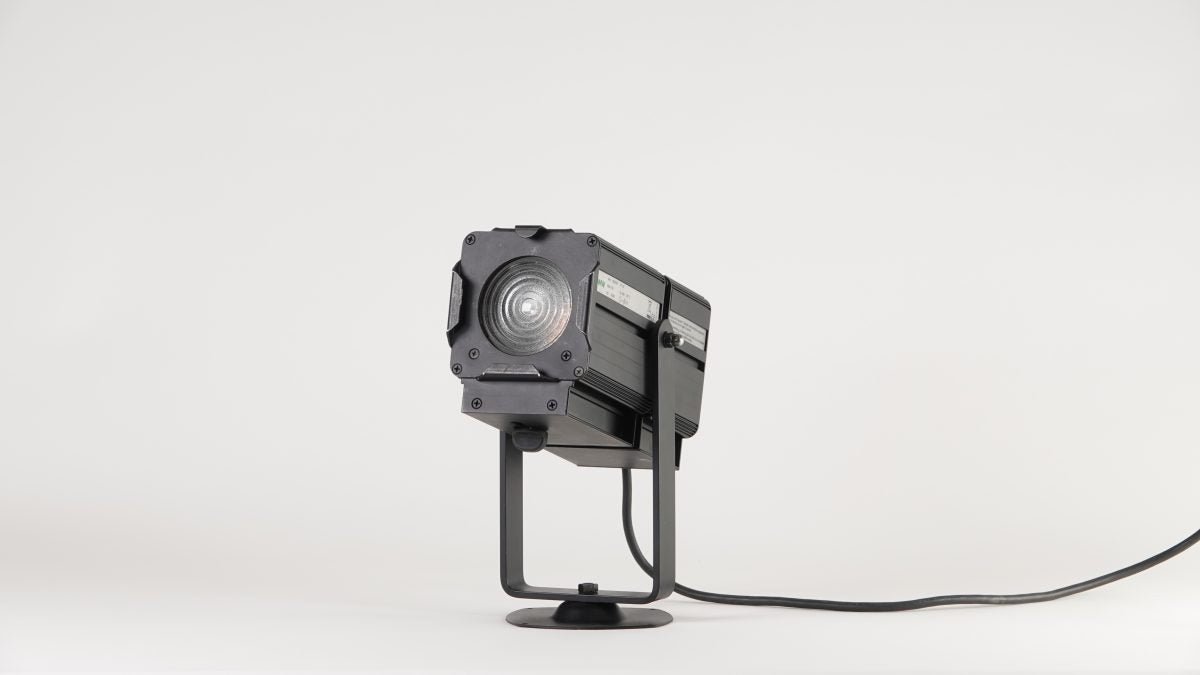

The Fresnel spot produces a cone of light that gives an even field of light with soft edges and allows accent lighting of almost any object without producing sharp contrasts between the surface being lit and the surrounding area.

The fixture is available with different LED engines and complies with the USITT DMX 512A and ANSI RDM E 1.20 protocol standard

The housing is IP20 rating, made by rugged, highly resistant extruded aluminum, free of defects such as burrs, pits and malformations, in combination with lightweight fiber glass enforced hammer proof techno-polymer parts.

The housing doesn’t present any sharp edge and be made with a durable yet lightweight and rustproof construction with excellent mechanical strength for longer life also in presence of high humidity.

Finish is shockproof with anti-scratch epoxy raisin powder coating non-reflective black finish with electrostatic application.

The fixture has a rugged rustproof aluminum yoke, reversible and adjustable in height, with fast balancing technology, mounted into extruded aluminum sliding rail for any positioning of the yoke.

The fixture can easily stand on the floor without other accessories thanks to a quick adjustable and extremely flexible yoke positioning.

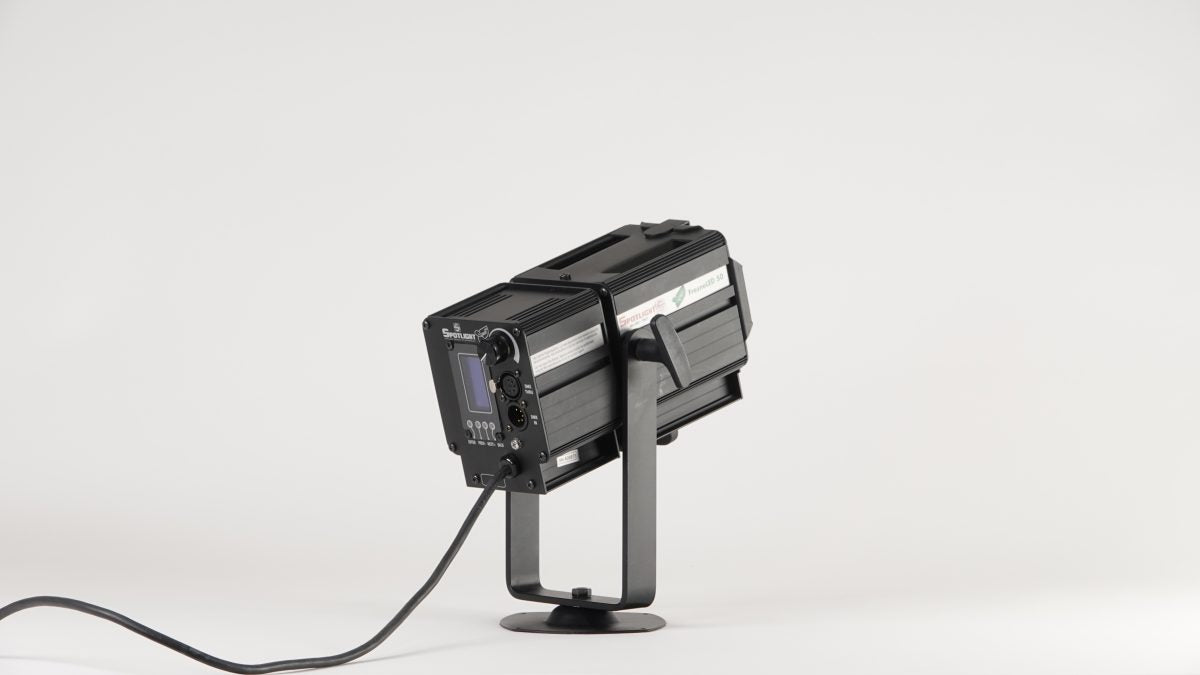

The fixture has a display equipped with a 4 buttons for local control.

The fixture utilizes an advanced thermal management system to maintain LED life to an average of 70% intensity after 54,000 hours of use.

The thermal management system is based on the combination of two cooling systems:

– a passive natural heat convection and

– a super silent active cooling system, also controllable via lighting desk

The passive natural heat convection is guaranteed by excellent LED cooling due to very large and effective double labyrinth dissipation, which at the same time avoid any light spillage over the entire top and the back part of the fixture.

The active cooling system is guaranteed by a forced dissipation of heat using a fan, allowing to intervene on the speed and therefore on the noise of the fans.

The thermal management system includes multiple temperature sensors to avoid an early LED deterioration. In addition a fan speed software allows to override DMX fan speed setting or the current to the LED array in order to prevent heat damages of the fixture that brings lifespan at risk.

The focusing is made by very accurate soft fine-tuning endless screw zoom mechanism placed inside the housing in order to guarantee that the size and balance of the fixture remain stable in any position, even with barndoors and filter frames in front.

The projection has a very precise variable beam angle fine adjustment without jerkins.

The optical system guarantees a powerful uniform light output without pixilation thanks to a high-quality borosilicate glass lense.

The lense is mounted onto extended holders to allow the best ventilation.

Power supply:

The fixture has the PSU driver and dimmer electronic integrated on board.

The fixture is equipped with an internal auto sensing power supply with an input range from 100V to 240V – 50/60 Hz protect by on board fuse

The efficiency should be PF>0.94/230VAC PF>0.98/115VAC at full load

Control (DMX signal):

– international standard with XLR 5-pole in/out connectors

The fixtures can be linked together with standard DMX cable
