Plug & Play Converter Module
This analog to digital 24 bit converter module offers an optional digital output for compatible SPL units.

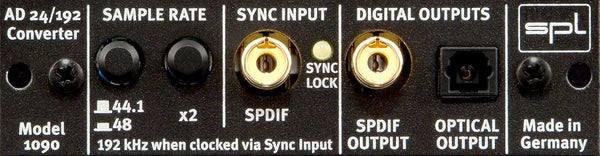

The AD 1090 converter module offers an SPDIF output with both coaxial and optical connectors.
The module sports a 24-bit converter and supports sample rates up to 192 kHz.
Highly accurate quartz oscillators ensure a clean, low-jitter master clock.
The internal sample rate can be switched between 44.1, 48, 88.2 and 96 kHz. Other sample rates (32, 176,4 and 192 kHz) are set by external syncronization.
The converter can be synced to other digital devices via a SPDIF input. The internal oscillators are automatically disabled when an external clock signal is present to prevent interference.
Units with optional features are usually built to order (BTO). Please ask your dealer for a BTO unit even if converter-equipped units are not offered (for example in an online store). If you or the dealer have any questions, let us know.
The AD 1090 can also be reinstalled after purchase by technically skilled personal or qualified technicians.
Read and follow all security and mounting instructions in the manual (see below)
AD 1090 fits into
- Channel One
- Track One
- Gold Mike Mk2
- GainStation 1
The GainStation1 Exception
The GainStation1 can only be upgraded by SPL or an authorized service partner.
Therefore we recommend to buy the GainStation 1 with a converter installed if you think that a digital output can be of use to you.
