A modern FET microphone with vintage vibes, streamlined body and the same S23 capsule as the 023 Bomblet.
The 1973 is a high-end yet affordable LDC microphone that features a handmade capsule and world-class build quality. Like the other mics in the Soyuz family, the 1973 is neither a copy nor a clone but rather a “modern classic”. It was developed and built in the old fashioned way: in-house with maximum attention to detail and no corners cut.

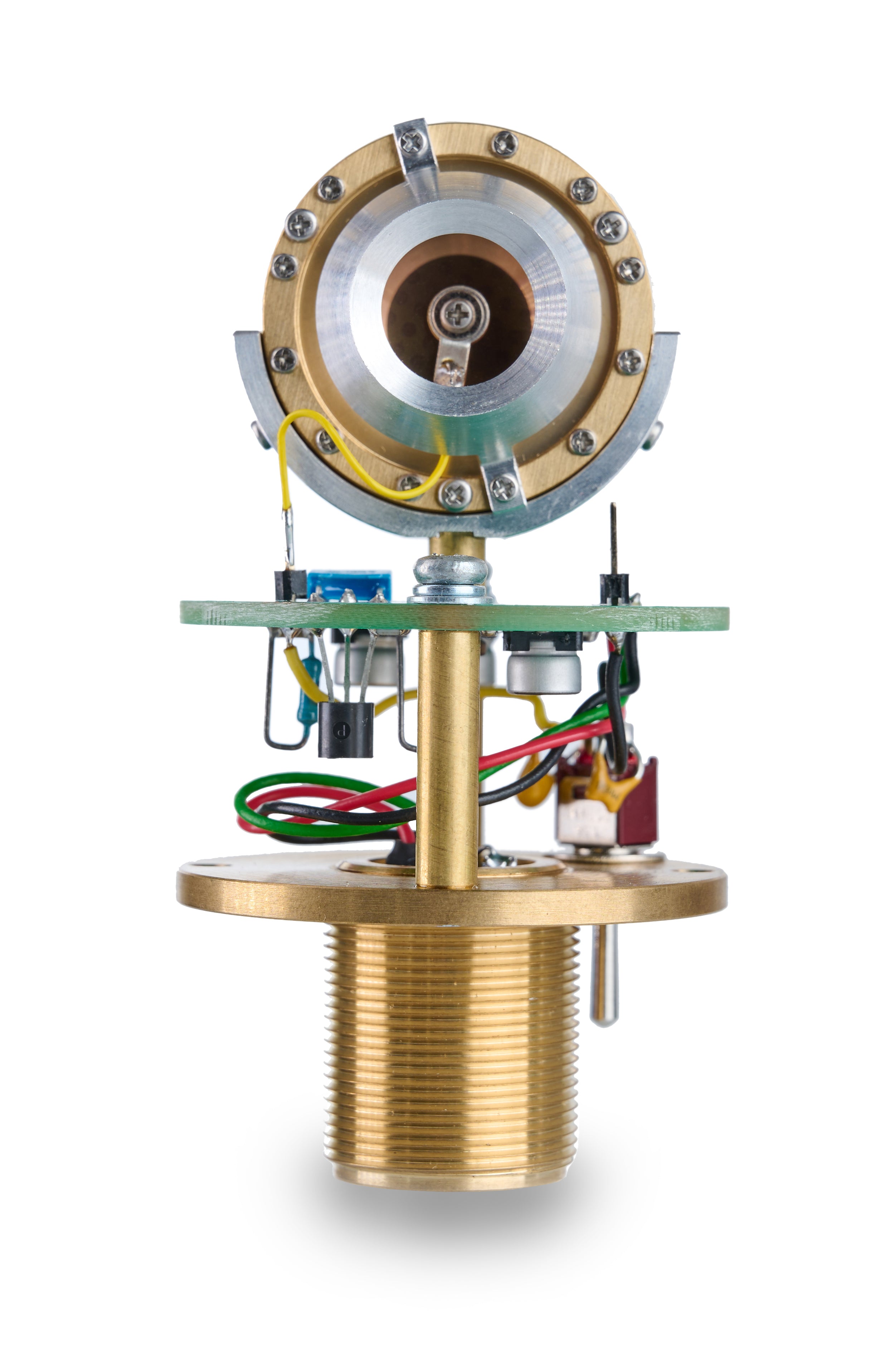

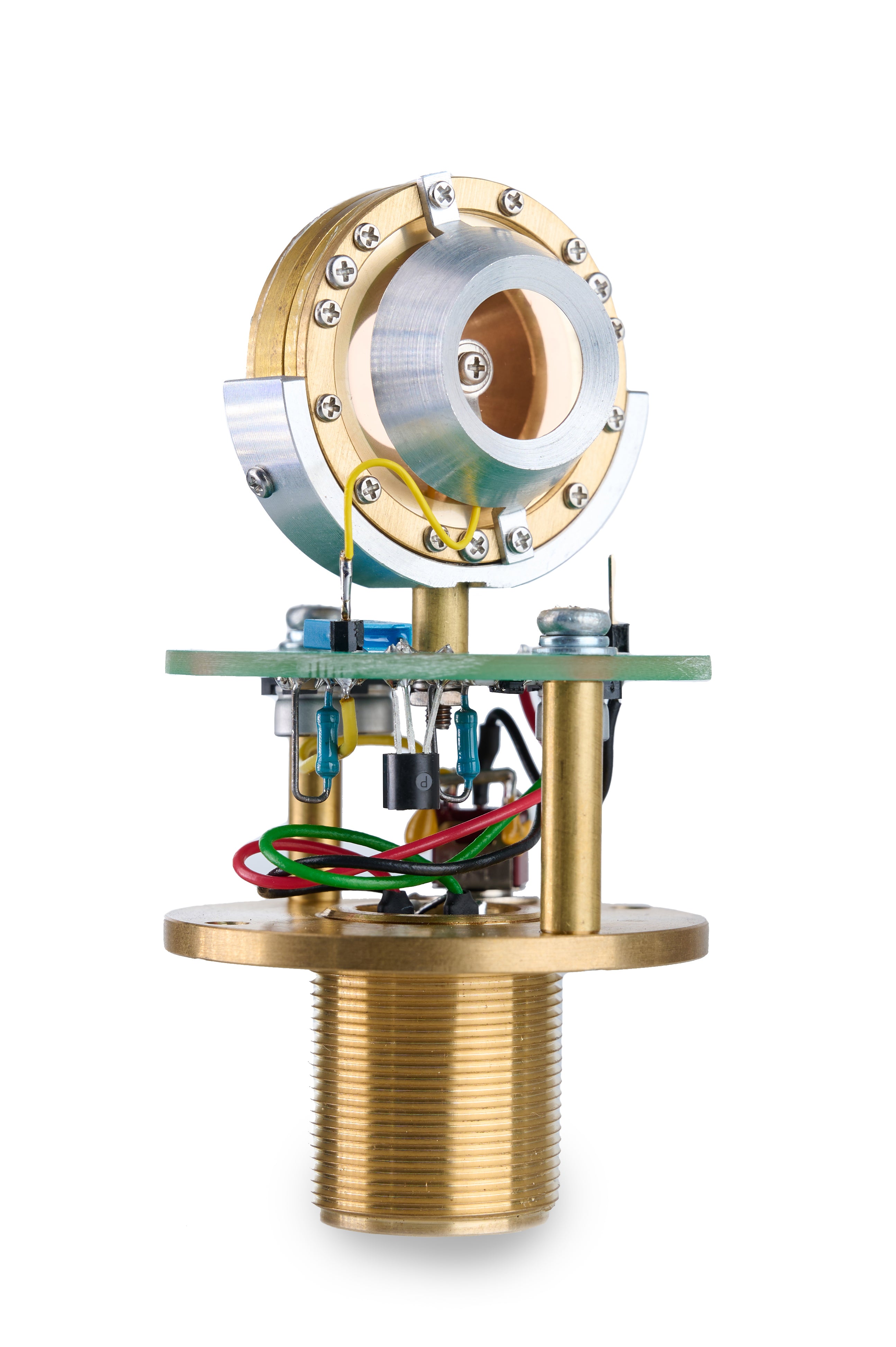

THE CAPSULE
The 1973 features a version of our own S23 capsule. The S23 is a completely unique capsule with a very interesting history. In the early 1970s LOMO redesigned an AKG CK12 capsule, giving it three backplates in order to increase consistency. In 2015 our Soyuz engineers redesigned it for the 023 Bomblet and have now further adapted it for the 1973.
THE RESONATOR
The 1973 features a custom resonator that reduces unwanted resonance and also adds a degree of plosive protection, making the 1973 extremely well suited for vocals, voiceovers and podcasts.
THE DESIGN
The form factor of the 1973 makes it perfect for miking those hard-to-reach places. The 1973 is solid, compact and extremely durable— built to last a lifetime.
THE PAD
The 1973 has both a -10 and -20 dB pad, making it well suited for high volume sources such as kick drums and amps.
THE SOUND
The 1973 features a transformerless design and has the lowest self-noise of any of our microphones. Nonetheless, it retains what many people call “the Soyuz Sound,” with lows that are present but not boomy, a midrange that’s forward but not boxy, and a high end that’s open and airy without being harsh.
KEY FEATURES:
- Features a version of our original S23 Capsule found in The 023 Bomblet microphone
- Completely hand-machined body and hand-machined capsule
- Includes a custom machined and built-in resonator to reduce unwanted resonance and minimize plosives
- Includes a switchable -10dB and -20dB pad on the bottom of the microphone
- Transformerless design
- Available in a polished silver finish and a matte black finish
Soyuz 1973 Microphone Tech Specs
-
Type: FET condenser microphone
-
Capsule: Two 33mm membranes (one gold sputtered)
-
Frequency Range: 30Hz / 18kHz
-
Polar Pattern: Cardioid
-
Pad: -10dB / -20dB
-
Sensitivity: 24.5 mV/Pa
-
Impedance: 150 Ohms
-
SPL: 140 dB
-
Equivalent Noise: 18 dB (a-weighted)
-
Power: Phantom 48V
-
Size: 100mm length x 55mm diameter
-
Weight: 300g (single microphone)
-
Extras: Mic holder
