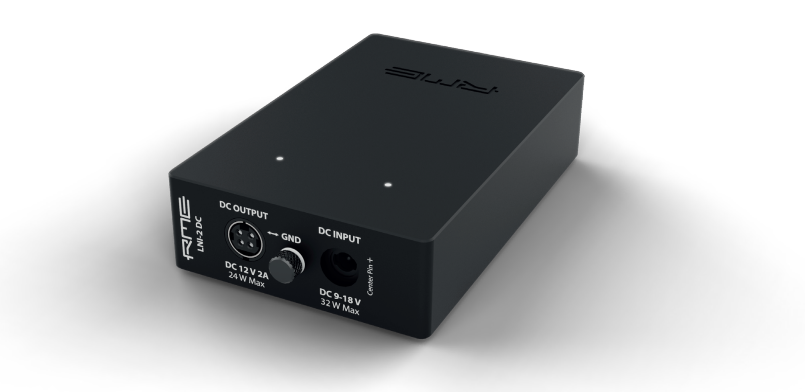

RME LNI-2 DC

Low Noise Isolating DC Filter, 12 Volt 2 Ampere, DC Input and output

RME’s unique and innovative active DC filter in a compact form factor filters the output signal of any power supply to HiFi high-end battery level while breaking ground/hum loops with two exclusive features: Galvanic isolation and RME’s µFilter.

The galvanic isolation removes the common leakage current of switching power supplies almost completely, with the coupling capacitance between input and output reduced from typically 1 nF (nano Farad) to less than 35 pF (pico Farad). The LNI-2 DC works with power sources of 9 V up to 18 Volt DC, always providing a fixed, perfect 12.0 V at its output.

RME's µFilter consists of a discrete low noise linear regulator with sensationally low noise, soft start, thermal and current overload protection, thus being 100% short circuit proof. Two status LED at the top of the unit signal existing input and output voltage and overload.

As further special feature the ground of the DC output can optionally be connected to PE, ground or other devices ground via a ground terminal screw to solve ground cabling issues.

Connectivity
• DC Input 9-18V, 32 W max
• DC Output 12V 2A, 3.2A peak
• Ground terminal screw
