$ 300.00 -13%
$ 259.99
Wishlist



  • Stereo isolator, withstands up to +21dB without distortion
  • Eliminates hum and buzz caused by ground loops
  • Suitable for balanced & unbalanced signals
  • Exceptionally linear response from 20Hz to 20kHz

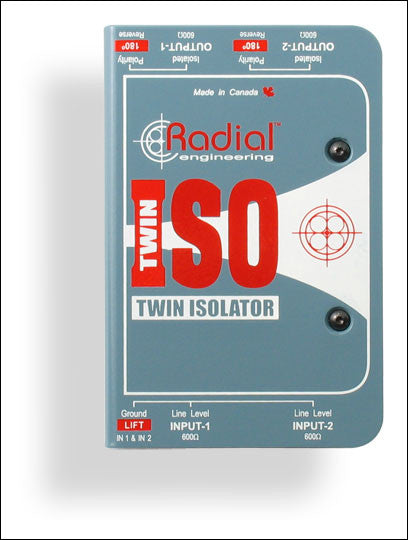

The Radial Twin-Iso is a high performance two channel balanced line-level isolator for professional touring, sound installation, broadcast and studio that provides isolation between various pieces of audio equipment such as consoles, amp racks, remote towers and recorders as a means of eliminating hum and buzz caused by ground loops.

Central to the Twin-Iso are two high performance Eclipse transformers. These stellar audio engines are modelled after Deane Jensen's original designs to deliver an exceptionally linear response at all frequencies and are capable of handling as much as +21dB without distortion. Placed in between the audio source and destination, they assure absolute signal integrity is retained no matter what the program material.

As with all Radial products, the Twin-Iso is road-ready to handle the most abusive environments. It features 14 gauge steel I-beam construction and an innovative book-end design that creates a protective zone around switches and connectors. A full bottom no-slip pad provides mechanical isolation from vibrations while adding electrical insulation between electrically charged devices. When combined with the J-Rak or J-Clamp, the Twin-Iso easily integrates into 19" rack systems or may be permanently mounted inside racks or under podiums.

The Twin-Iso solves noise problems with plug & play simplicity while delivering exceptional audio signal integrity.

Specifications
Audio circuit type:  Passive line-level isolation, transformer based
Number of channels: Stereo (dual mono)
Frequency response:  10Hz ~ 50KHz (± 1dB)
Dynamic range:  135dB
Maximum input:  +21dBu @ 1kHz, 1% THD+N
Total harmonic distortion:  0.001% @ 1kHz, +4dBu output
Phase deviation:  0.5° @ 100Hz; 3° @ 20Hz
Input impedance:  600 Ohms, balanced
Output impedance:  600 Ohms, balanced
Features
Transformer: Custom wound Eclipse ET-LD2
High pass filter:  -3dB @ 100Hz (12dB.Oct.)

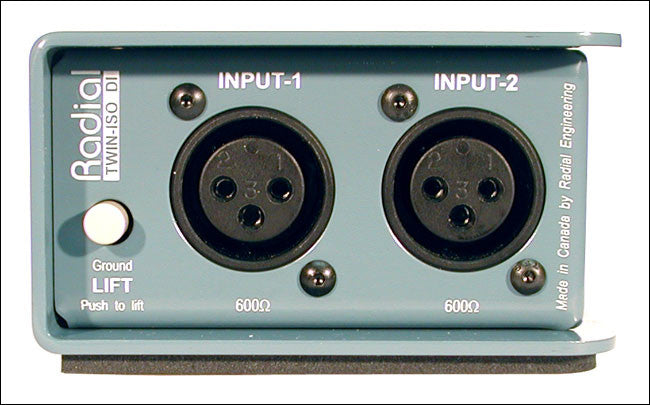

Ground lift:  Disconnects XLR pin-1 at isolated output
XLR configuration:  AES standard (pin-2 hot)

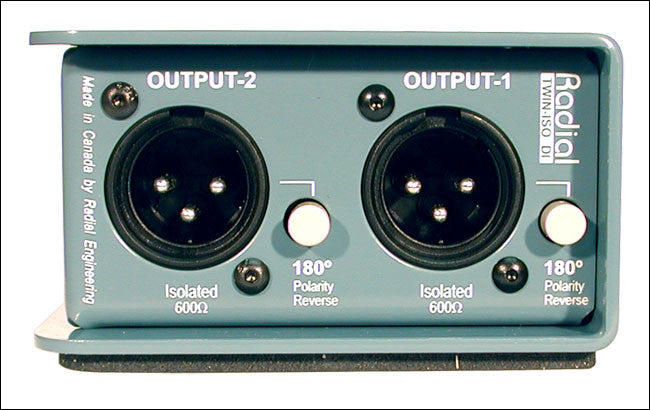

Connectors: XLR-F inputs; XLR-M outputs
General
Construction:  14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size:  (W x H x D)  84 x 127 x 48mm (3.3" x 5.0" x 2")
Weight:  0.70 kg (1.55 lbs)
Shipping size: W x H x D: 102 x 76 x 165mm (4" x 3" x 6.5")
Shipping weight: .87 kg (1.92 lbs)
Power:  Passive, no power required
Conditions:  For use in dry locations only between 5°C and 40°C
Warranty:  Radial 3-year, transferable
Specifications are subject to change without notice.
