  • Switch between two playback systems automatically
  • Expandable 'link' with remote control contact closure
  • Balanced or unbalanced mic and line level operation
  • Transformer isolated DI output on each channel

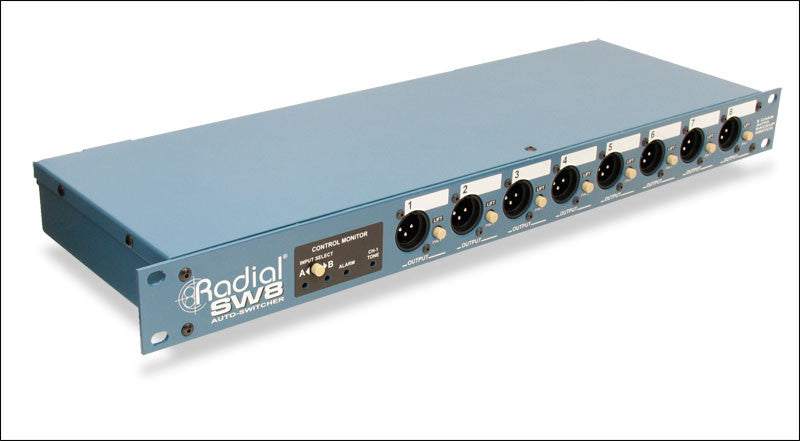

The Radial SW8 is an 8 channel auto-switcher that allows you to set up a redundant backup system by automatically switching between two sources such as a pair of digital recorders, computers or network systems.

Designed primarily for live concerts and stage shows where backing tracks are used for orchestration, vocals and sound effects, the SW8 employs an adjustable gate to detect a machine malfunction and automatically switch to a second backup machine to deliver a seamless performance. Switching can also be manually performed using a remote latching switch or via the front panel A~B switch. For larger systems, the SW8 is easily linked using a standard ¼" guitar type cable. This enables the unit to expand to 16, 24 or 32 channels with all systems switching simultaneously.

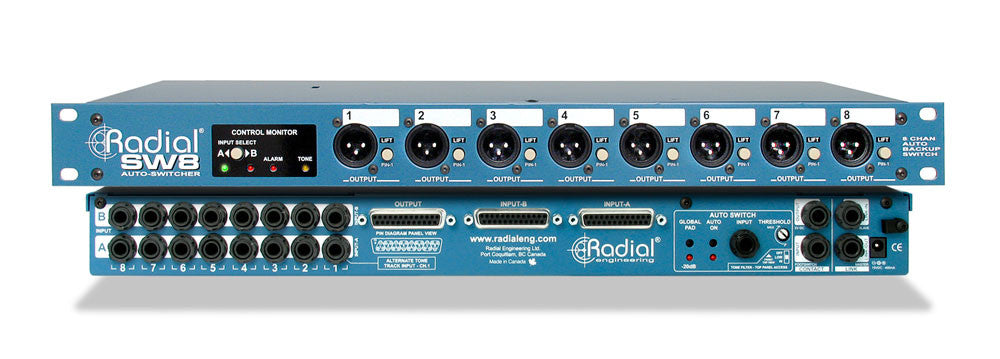

Housed in a heavy duty 14-gauge steel 19" enclosure, the Radial SW8 is equipped with choice of 25-pin D-sub or ¼" TRS connector input sets. A third D-Sub provides straight through balanced output while the front panel is equipped with XLR outputs. Inside, eight Radial direct box transformers come factory assigned to the XLR outputs for easy patching from the stage to the mic splitter. The isolation transformers help eliminate hum and buzz caused by ground loops may be re-patched internally to the D-Subs if required.

The Radial SW8 eliminates embarrassing system malfunctions by providing an easy to implement and easy to use system that will ensure each and every show will go on!

Specifications
Audio circuit type:  Passive signal path with active relay switching
Input impedance:  140k Ohms, balanced
Output impedance:  150 Ohms, balanced
Frequency response:  20Hz ~ 20KHz
Gain: -20dB
Dynamic range:  >120dB
Total harmonic distortion:  0.002%
Noise floor: -115dBu
Signal to noise ratio: >94dB
Equivalent input noise: -95dBu
Maximum input:  26dBu
Phase deviation:  -2° @ 20Hz
Intermodulation distortion: >0.002%
Common mode rejection ratio: -112dB at 50/60Hz
Features
Number of channels: Eight channels
Switching: Local, remote, and auto-switching with gate
Transformer: Eclipse ET-DB2
Pad -30dB
Ground lift:  Disconnects XLR pin-1 at isolated output
XLR configuration:  AES standard Pin-1 ground, Pin-2(+), Pin-3(-)
Connectors: ¼" TRS, DB-25 inputs; XLR-F, DB-25 outputs
General
Construction:  14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size:  (W x H x D) 17.5" x 6" x 1.75" (44.5 x15.25 x 1.75cm)
Weight:  9.2 lb (4.2kg)
Shipping size: W x H x D: 10.25" x 4.5" x 22.5" (260 x 114 x 572mm)
Shipping weight: 9.7 lb (4.4 kg)
Power:  Two +15VDC/400mA power supplies included
Conditions: For use in dry locations only between 5°C and 40°C
Warranty:  Radial 3-year, transferable
Specifications are subject to change without notice.
