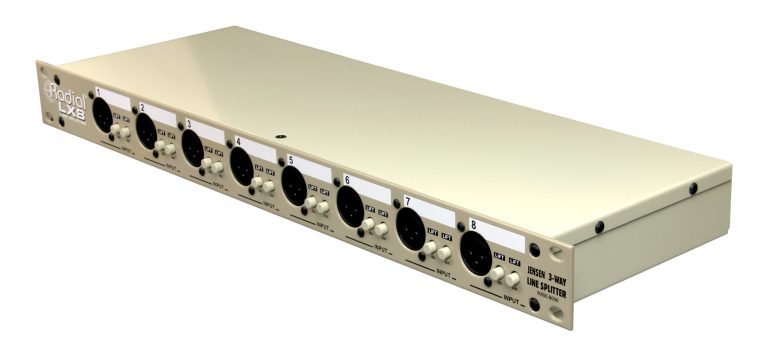

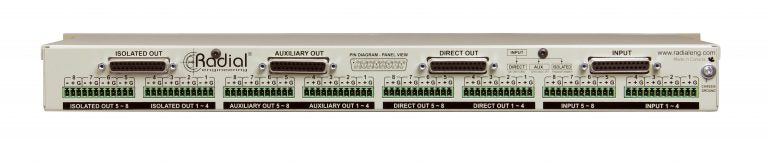

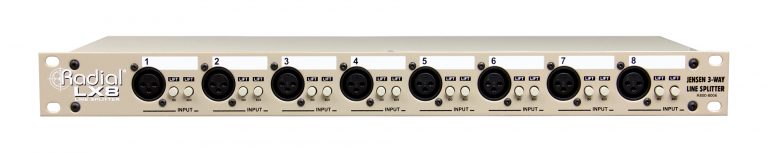

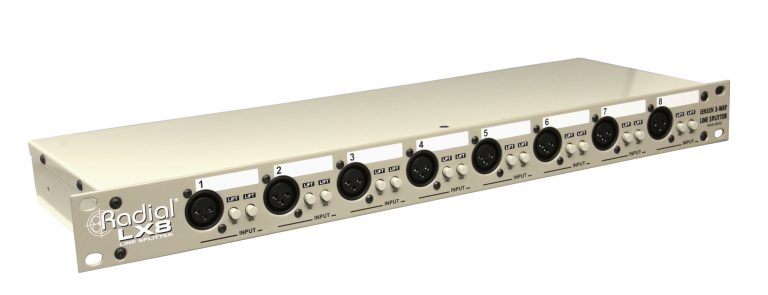

Radial Engineering LX8 - 8-channel Line-Level Splitter

The Radial LX8™ is an eight channel passive line-level splitter designed to send multiple channels to three destinations at once, while providing transformer isolation and eliminating hum and buzz caused by ground loops.

• 8-Channel balanced line level splitter & isolator
• Handles +26dB signals without distortion or noise
• Jensen transformer-equipped for exceptional audio quality
• Eliminates buzz and hum caused by ground loops

The professional touring signal splitter

The Radial LX8 is designed specifically to manage balanced signal splitting in professional audio systems. The single rack space design begins with a 100% passive circuit which means it does not require any power to operate. Inside, each of the eight channels is equipped with a premium Jensen® JT-123-SLPC transformer that is able to handle transients in excess of +26dB at all frequencies right down to 20Hz without audible distortion. This results in an accurate signal transfer with minimal phase shift or distortion. When used in larger systems, you benefit from significantly lower noise, making the LX8 the best choice for any demanding multi-channel audio system.
