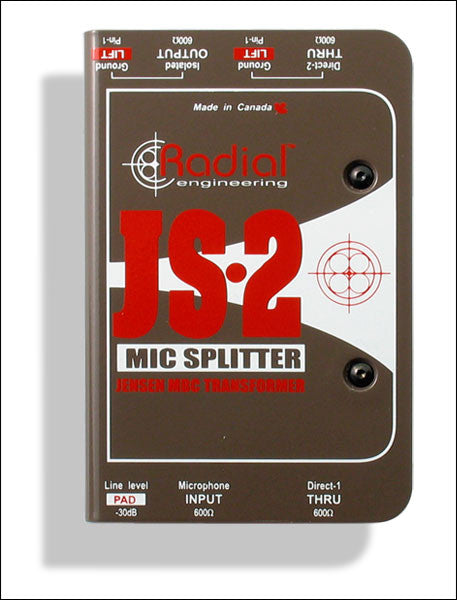

Radial Engineering JS2

SKU: Radial Engineering JS2
$ 250.00 -12%
$ 219.99
Wishlist
  • Jensen transformer-equipped for optimal signal transfer
  • Choice of 2-way or 3-way designs for extra flexibility
  • Compact design , up to 8 may be rack mounted in J-Rak
  • Ultra rugged 14-gauge steel construction for added durability

The Radial JS2 and JS3 are high performance balanced mic level splitters that let you to split a signal and feed multiple destinations at the same time. Typical applications include splitting a signal in the studio to feed more than one preamp, feeding a stage mic to more than one mixing console, or even splitting the signal to a live PA during a broadcast event.

Two units are offered: The JS2 is equipped with one isolated output while the JS3 has two. The engine inside both units is a premium Jensen transformer. It features a nickel laminated core for exceptionally low harmonic distortion without the usual phase shift and limited bandwidth typically introduced by lesser designs. The JS2 and JS3 deliver better than 90dB of noise rejection, eliminating troublesome noise caused by stray DC voltage and hum & buzz caused by ground loops. The signal path is 100% discrete and incorporates RF filtering for even greater noise suppression. These 'problem-solvers' offer a simple yet highly effective interface for microphones or direct boxes, and by engaging the built-in -30dB pad, consumer and line level devices may also be connected without distortion or fear of overload due to saturation.

As with all Radial products, both mic splitters feature rugged 14-gauge steel construction for maximum durability. A unique book-end design creates a protective zone for switches and connectors against the harsh environment of concert touring while the internal I-beam frame makes it virtually impossible to torque the PC board which could otherwise compromise the sensitive solder joints. The innovative design also has the unique advantage of allowing up to 8 units to be rack-mounted using the Radial J-Rak.

The Radial JS2 and JS3... split the mic signal without compromising your sound.

Specifications
Audio circuit type:  Passive mic/line splitter, transformer based
Number of channels: Three-way splitter (one in/three out)
Frequency response:  20Hz ~ 20KHz (+0dB/ -2dB)
Dynamic range:  140dB
Maximum input:  +25dBu @ 1kHz
Total harmonic distortion:  0.0005% @ 1kHz
Phase deviation:  0.7° @ 100Hz; 2.8° @ 20Hz
Common mode rejection ratio:
Input impedance:  2.4k Ohms, unbalanced
Output impedance:  150 Ohms, balanced

Features
JS2 transformer: JT-MB-CPC, 1:1 ratio
JS3 transformer: JT-MB-DPC, 1:1:1 ratio
Shield: Dual Faraday, MuMETAL® can
Input pad:  -30dB (allows line-level sources)
Ground lift:  Disconnects XLR pin-1 at direct-2 and isolated output
XLR configuration:  AES standard (pin-2 hot)

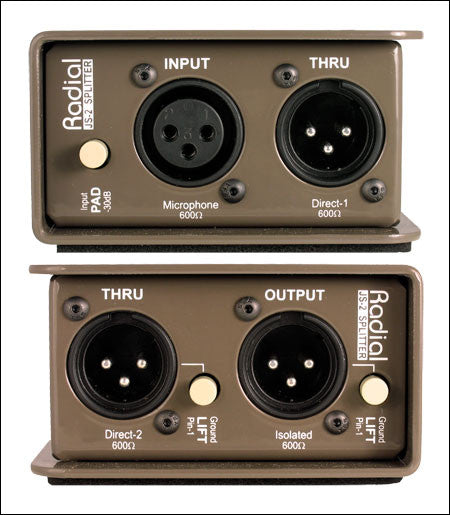

Connectors: XLR-F in, XLR-M direct; direct-2; isolated outputs

General
Construction:  14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size: (W x H x D) 84 x 127 x 48mm (3.3" x 5.0" x 2")
Weight:  0.70 kg (1.55 lbs)
Shipping size: W x H x D: 102 x 76 x 165mm (4" x 3" x 6.5")
Shipping weight: .87 kg (1.92 lbs)
Power:  Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty:  Radial 3-year, transferable
Specifications are subject to change without notice.
