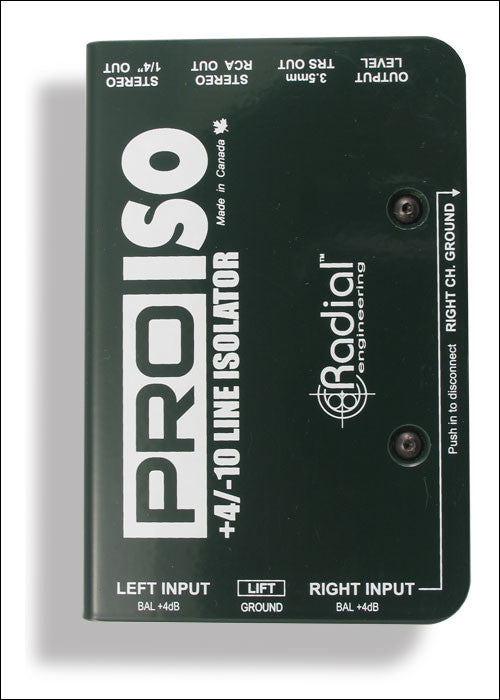

The Radial J-Iso and Pro-Iso are stereo line isolators designed to convert a professional +4dB line level balanced signal to an unbalanced -10dB consumer level device. This enables you to take the balanced output of a mixer and feed a consumer level recorder or audio input on a computer.

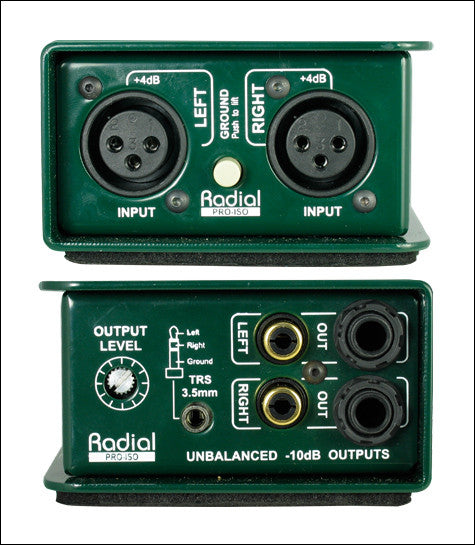

The passive design begins with 100% discrete components throughout. A set & forget level control lets you attenuate the input signal to prevent it from overloading the destination device. Output connections include a stereo pair of ¼" connectors, a set of RCAs and a mini 3.5mm (1/8") for interfacing to a mini recorder or lap-top computer. Transformer isolation helps eliminate hum and buzz caused by ground loops while eliminating stray DC currents from flowing.
Construction begins with 14 gauge steel throughout utilizing Radial's unique bookend construction. This creates a protective zone around the connectors and controls for added durability. The steel construction also assists by shielding the transformers from outside magnetic fields. Inside, the J-Iso features an innovative I-beam skeletal insert that makes it virtually impossible to torque the PC board. This reduces potential stress which could cause premature solder joint failure.
Designed for full range applications, the J-Iso combines exceptional signal handling with the type of durability that has made Radial famous.
|Specifications||Radial J-ISO||Radial Pro-ISO|
|Audio circuit type:||Passive, transformer based||Passive, transformer based|
|Number of channels:||Stereo (dual mono)||Stereo (dual mono)|
|Frequency response:||20Hz ~ 20KHz (+0dB/ -1.5dB)||20Hz ~ 18KHz (+0dB/ -3dB)|
|Maximum input:||+20dBu @ 1kHz/1% THD+N||+20dBu @ 1kHz/1% THD+N|
|THD + Noise:||0.001% @ 1kHz||0.005% @ 1kHz|
|Phase deviation:||0.5° @ 100Hz; 1° @ 20Hz||1.5° @ 100Hz; 3° @ 20Hz|
|Input impedance:||1.3k Ohms, unbalanced||1.3k Ohms|
|Output impedance:||520 Ohms, balanced||1.9k Ohms|
|Transformer:||Jensen JT-11-YMPC||Radial transformer|
|Ground lift:||Disconnects XLR pin-1 at XLR input||Disconnects XLR pin-1 at XLR input|
|XLR configuration:||AES standard (pin-2 hot)||AES standard (pin-2 hot)|
|Connectors:||Balanced XLR-F in; ¼", RCA and 3.5mm TRS unbalanced outputs|
|Construction:||14 gauge steel chassis||14 gauge steel chassis|
|Finish:||Durable powder coat|
|Size:||84 x 127 x 48mm (3.3" x 5.0" x 2")||84 x 127 x 48mm (3.3" x 5.0" x 2")|
|Weight:||0.70 kg (1.55 lbs)||0.70 kg (1.55 lbs)|
|Shipping size:||102 x 76 x 165mm (4" x 3" x 6.5")||102 x 76 x 165mm (4" x 3" x 6.5")|
|Shipping weight:||.87 kg (1.92 lbs)||.87 kg (1.92 lbs)|
|Power:||Passive, no power required||Passive, no power required|
|Warranty:||Radial 3-year, transferable||Radial 3-year, transferable|
|Conditions:||For use in dry locations only between 5°C and 40°C||For use in dry locations only between 5°C and 40°C|
|Specifications are subject to change without notice.|
