Quested VH3208 - Passive 3 way 8" (200mm) & 3" (75mm) & 1.10" (28mm) Black

Sale price$ 4,299.00
SKU: VH3208

Call us at 1-877-223-8858 or Ask a Question below

Quested VH3208 - Passive 3 way 8" (200mm) & 3" (75mm) & 1.10" (28mm) Black

Model

Quested VH3208 - Passive 3 way 8" (200mm) & 3" (75mm) & 1.10" (28mm) Black

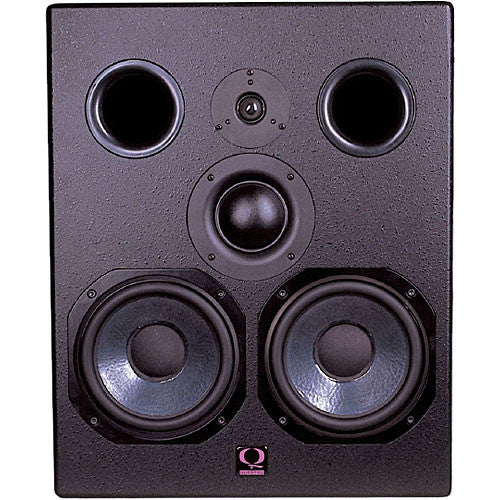

The VH3208 is one of the most recognisable Quested Monitors and our most compact passive three way monitor. The dual custom 8” drivers along with a 3” soft dome mid and a silk soft dome high ensure every little detail is revealed. As with all the passive Quested monitors a hand built crossover network is employed that offers a very efficient and transparent performance. Maintaining a linear response and able to reproduce high SPLs, the VH3208 is a favourite within the dance community due to its clean but extended bass response. Tuned front firing ports ensure the VH3208 is forgiving of its environment if placed close to a wall and the flat impedance response make it a very easy three way monitor to drive.

TECHNICAL SPECIFICATION

Dimensions: 485(w) x 612(h) x 324(d) mm

Weight: 38 kg / 83.5 lb

Drivers: Bass cone – 2 x 200 mm (8 ”)

Mid Frequency: Soft dome – 1 x 75 mm (3”)

High Frequency: Soft dome – 1 x 28mm (1⅛”)

Maximum SPL: 112 dB continuous pink noise @ 1m LEQ 1 minute. 117.5 dB continuous pink noise per pair @ 1m Leq 1 minute

Frequency Response: 40 Hz-20 kHz ± 2 dB / 37 Hz-22 kHz -6 dB

Connector: Triple-pair binding posts

Impedance: 8 ohms

Sensitivity: 92 dB @ 1 meter

Power Requirements: Amplifier rated at 8 ohms delivering between 200 and 700W RMS per channel
