Model

NTP PENTA721sBASE

Dante® Multi-Format Converter and Router

PENTA 721s is a new generation audio router and audio distribution interface from NTP Technology, which provides a versatile and flexible interface for signal distribution of analog, and digital audio via AES/EBU and MADI, as well as routing via IP Gigabit Ethernet and optical fibre networks including Dante. It has all the features of the Penta 721 with the addition of a card slot that can accept one of the 7 Penta interface cards to exactly match your I/O requirements.

PENTA 721s is a compact 1U digital audio interface designed for stand-alone use in recording studios, radio stations and stage venues.

It comes as standard with the following I/O:

Eight channel AES/EBU input/output channels
MADI in/out
Two IP Audio Ethernet in/outs connected to a 64-channel Dante interface, with support for AES67 with SAP & Dante Domain Manager

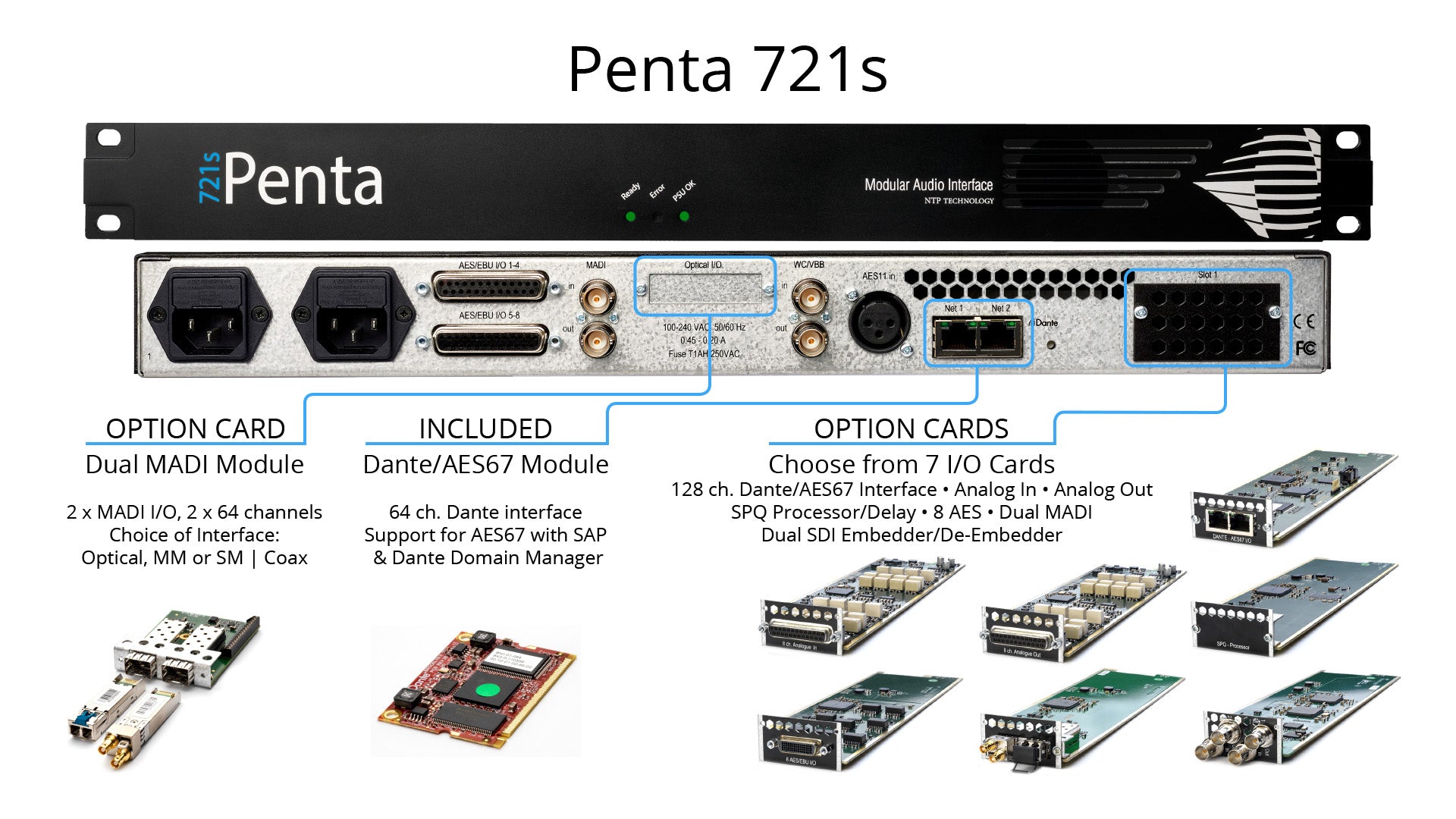

Card slot for one of seven optional NTP I/O and processing cards, and a slot for optional Dual MADI Module

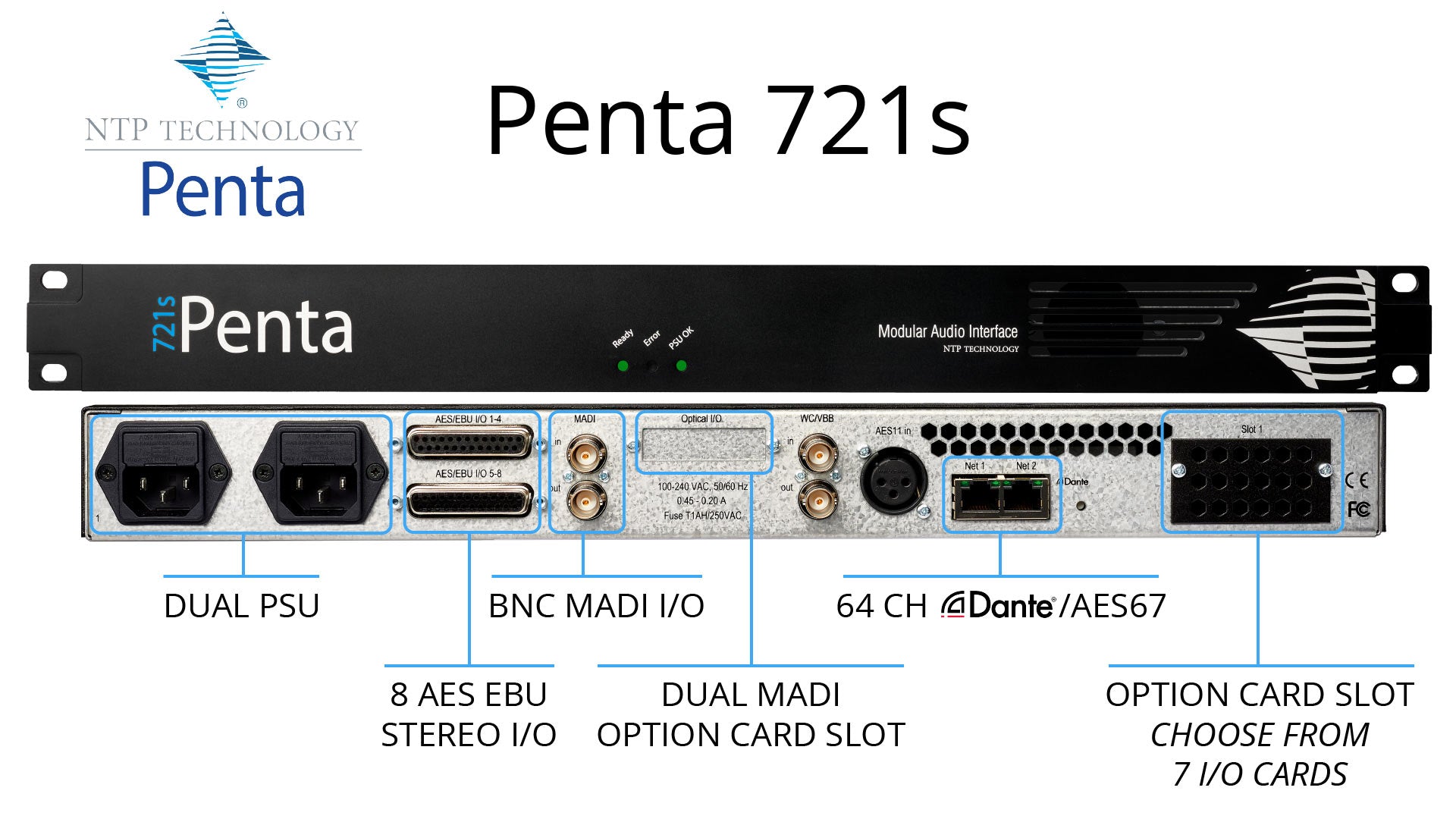

Key Features

64 MADI / BNC
2 IP Audio RJ45 Ethernet Ports ( DANTE Brooklyn 2 card included as standard)
8 AES/EBU I/O and 1-3 MADI I/O
Word clock and VBB in and out
AES11 Sync Input ( clock)
512 x 1512 routing
IP audio L3 Ethernet I/O powered by Dante
TCP/IP control via NTP Router Control System and Stand alone control applications for PC Single or Dual power supply
1 Card Slot – choose from one of the seven Penta Option Cards
D–slot mini-module slot for optional ST optical MADI connection or dual SFP MADI optical in/out. 128 MADI

Key Benefits

Flexible patching and routing of digital audio signals providing
Stand alone IP audio interface and format converter
Interface for NTP TDM router systems
Low latency, tightly synchronised, transport of uncompressed audio over IP networks using off the shelf switches
DADman control software and compatible with Dante Domain Manager
