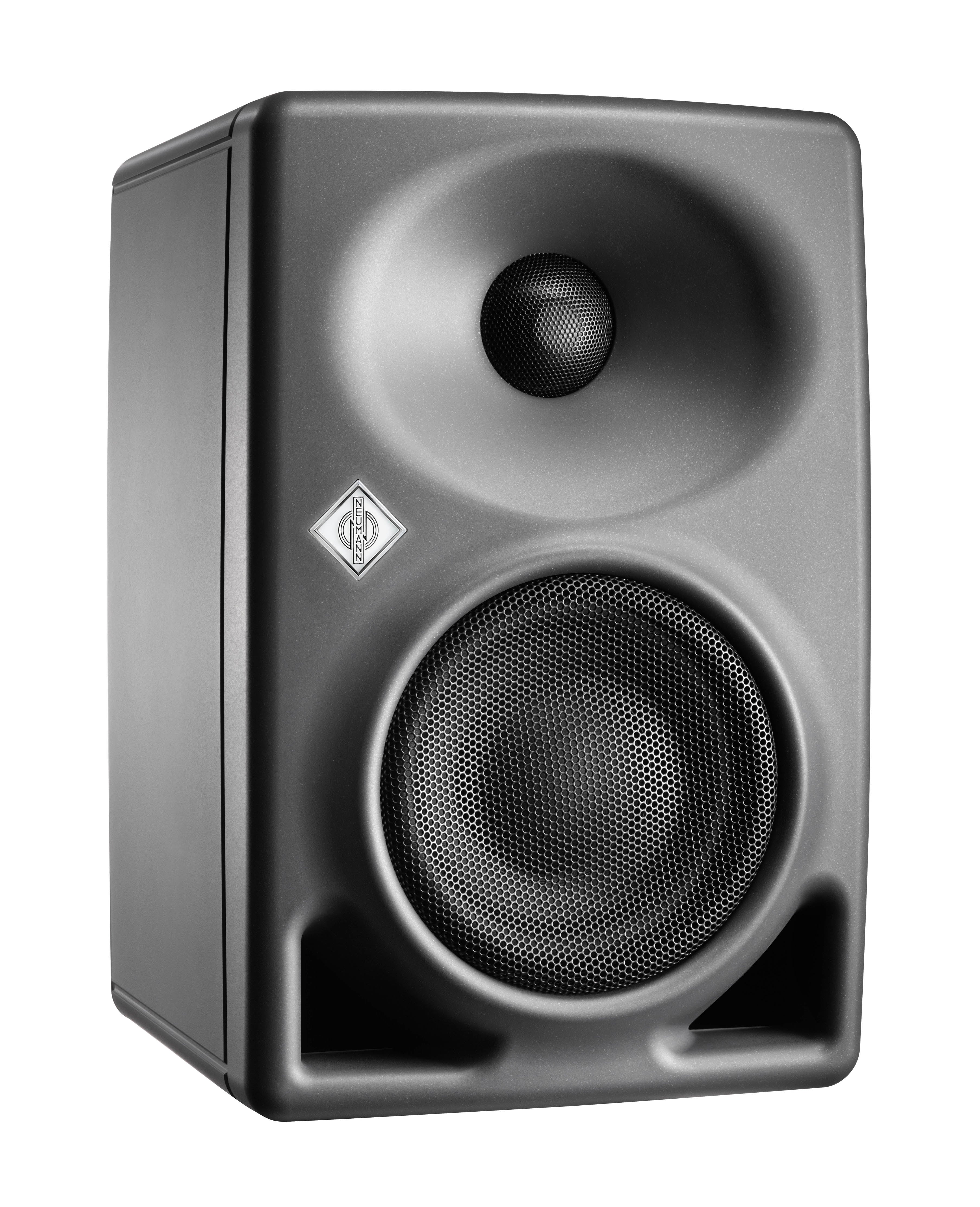

The KH 80 DSP two-way active bi-amplified monitor features a DSP engine with network control, a Mathematically Modeled Dispersion™ Waveguide (MMD™), an analogue input and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems, or as a rear loudspeaker in a compact multi-channel systems. It can be used in project and music studios, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering. It is also well suited for use in domestic environments.
Product Feature Benefit to the Customer
  New in-house simulated drivers with metal grilles
Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion  Driver cones protected from accidental physical damage by robust metal grilles
  Powerful alloy fabric tweeter dome
Low-distortion high-frequency reproduction
  Elliptical Mathematically Modeled Dispersion™ (MMD™) waveguide, with wide horizontal and narrow vertical dispersion
Smoother off-axis response, More forgiving of diverse acoustical environments Freedom of movement across the mixing console Reduces reflections off the mixing console
  Long throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™)
Damping of break-up modes and low distortion at high sound levels Linear pistonic motor gives a very low harmonic distortion even at high excursions
  Two-color + dimmable Neumann logo
Displays operation status and activation of the extensive protection system
Dimmable for low lighting level conditions or behind the screen applications
  Compact polycarbonate composite cabinet
No standing wave resonances,
Fastest bass transient response,
Reduced intermodulation distortion in midrange
  Large front panel ports
Reduced bass compression and easier to mount in tight spaces such as OB vans and small studios
  One-piece front panel with no discontinuities
Reduced diffraction and smoother frequency response
  Powerful highly efficient amplifiers with large headroom
Improved transient response
Low heat dissipation
  Independent thermo limiters for woofer and tweeter to protect the voice coils and power amplifiers. Woofer soft clip and excursion limiters
Fast acting, high reliability and allows extraction of the maximum performance from the system
  Production consistency due to individual alignment in final test
Any one KH 80 DSP unit is “pair-matched” to any other KH 80 DSP unit
  4-position low-mid acoustical control
Fast acoustical set up in mobile applications
  8 x Precision Alignment acoustical controls accessible via control network
Accurate and flexible alignment of the loudspeaker in the room and within systems
  Lipsync delay (0 … 70 ms)
To align audio and video signals up to 1.75 frames
at 50 Hz or 2.1 frames at 60 Hz
  Time-of-flight delay (0 … 70 ms)
To compensate for listening distance differences up to 24 m (79 ft)
  Linear phase crossover, with bypass
Flat phase response and can by bypassed to give a similar phase response to an analog loudspeaker
  Wide range input gain and output level controls
Easier interfacing with signal sources
  Control network used standard Ethernet components
No additional special equipment needed.Brings setup, alignment and operation functions via the Neuman.Control software*
  Completely symmetrical internal signal chain
Minimizes noises caused by external electromagnetic interference
  Double insulated electrical design
Ground loops are impossible
  Universal switched-mode power supply (100 … 240 V)
One version works in any country and robust to poor quality mains supply
  Auto Standby mode
Saves energy when the product is not in use
  Extensive mounting hardware options
More flexibility in mounting cabinets in more diverse locations and backwards compatibility with previous models
Acoustics
-6 dB free field frequency response 53 Hz … 22 kHz, ± 6 dB
-3 dB free field frequency response 57 Hz … 21 kHz, ± 3 dB
Pass band free field frequency response 59 Hz … 20 kHz, ± 2 dB
Self-generated noise
(with input gain set to 100 dB for 0 dBu)
< 20 dB(A) at 10 cm
Sine wave output with a
THD < 0.5 % at 1 m
90 dB SPL (>200 Hz)
Max. SPL in full space / calc. in half space
at 3% THD at 1m
102.8 / 108.8 dB SPL
(averaged between 100 Hz and 6 kHz)
Bass capability: Max. SPL in half space
at 3% THD at 1m
92.1 dB SPL
(averaged between 50 Hz and 100 Hz)
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions 104 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair) 93 dB(C) SPL (full range)
100 dB(C) SPL (with subwoofer)
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) 88 / 93 dB(C) SPL (full range)
91 / 96 dB(C) SPL (with subwoofer)
Electronics
Bass amplifier output power
(THD+N: 10%, 0.1%)

120 W, 90 W
Treble amplifier output power
(THD+N: 10%, 0.1%)

70 W, 50 W
Controller design Digital, active
Crossover Frequency 1.8 kHz
Crossover Slope 48 dB/oct, 8th order with phase correction
Equalization - Low Mid 0, -1.5, -3, -4.5 dB
Equalization – via Neumann.Control
software
8 x full parametric IIR + low / high shelf global balance
FIR phase correction Linear phase (170 Hz ... 16kHz, +/- 45°), Analog emulation
Latency A-D-A – linear phase, analog emulation mode 2 ms, 0.65 ms
Protection circuitry Independent soft clip, peak and thermo limiters for woofer and tweeter. Woofer excursion limiter.
Infrasonic filter - frequency; slope 61 Hz; 12 dB/oct.
Input

XLR / 6.3 mm (¼”) Jack, analog electronically balanced

Impedance 14k Ohms
Input gain control (sensitivity) 0 dB to -15 dB
Output level control 94, 100, 108, 114 dB SPL
CMRR >56 dB @ 15kHz
Max. input level +24 dBu for 94 dB SPL setting
Digital converter: resolution, design 24-bit DAC, Δ∑
Digital internal sampling rate 48 kHz
Dynamic range D-A; woofer, tweeter 114 dB, 117 dB
User adjustable delay range 0 … 70 ms
Audio-video/lip sync max. frames 1.75 (40 ms frames) or 2.1 (33 ms frames)
Time-of-flight max. distance 24 m (79 ft)
Resolution – time/distance 0.1 ms / 3.44 cm (1 3/8”)
Displays and indicators:
Normal operation
Identification
Limit / clip / errors

Neumann logo “White”
Neumann logo “Rosé”
Neumann logo “Red”
Mains Power Supply, voltage; frequency 100-240V; 50/60 Hz
Power consumption (230 V / 100 V):
Standby
Idle
Full output

<330 / <50 mW
9 / 8 W
180 W
Standby Disabled, 90 mins (default), or user defined in software
Mechanics
Cabinet surface finish, color (front / back) Painted composite polycarbonate material, Anthracite (RAL 7021) / Black (RAL 9005)
Operating conditions +10° C to +40° C (+50° F to +104° F), <75% RH, non-condensing
Transport/storage conditions −25° C to +60° C (−13° F to 140° F),
<90% RH, non-condensing
Woofer 100 mm (4") with integrated black metal grille
Tweeter 25 mm (1") with integrated black metal grille

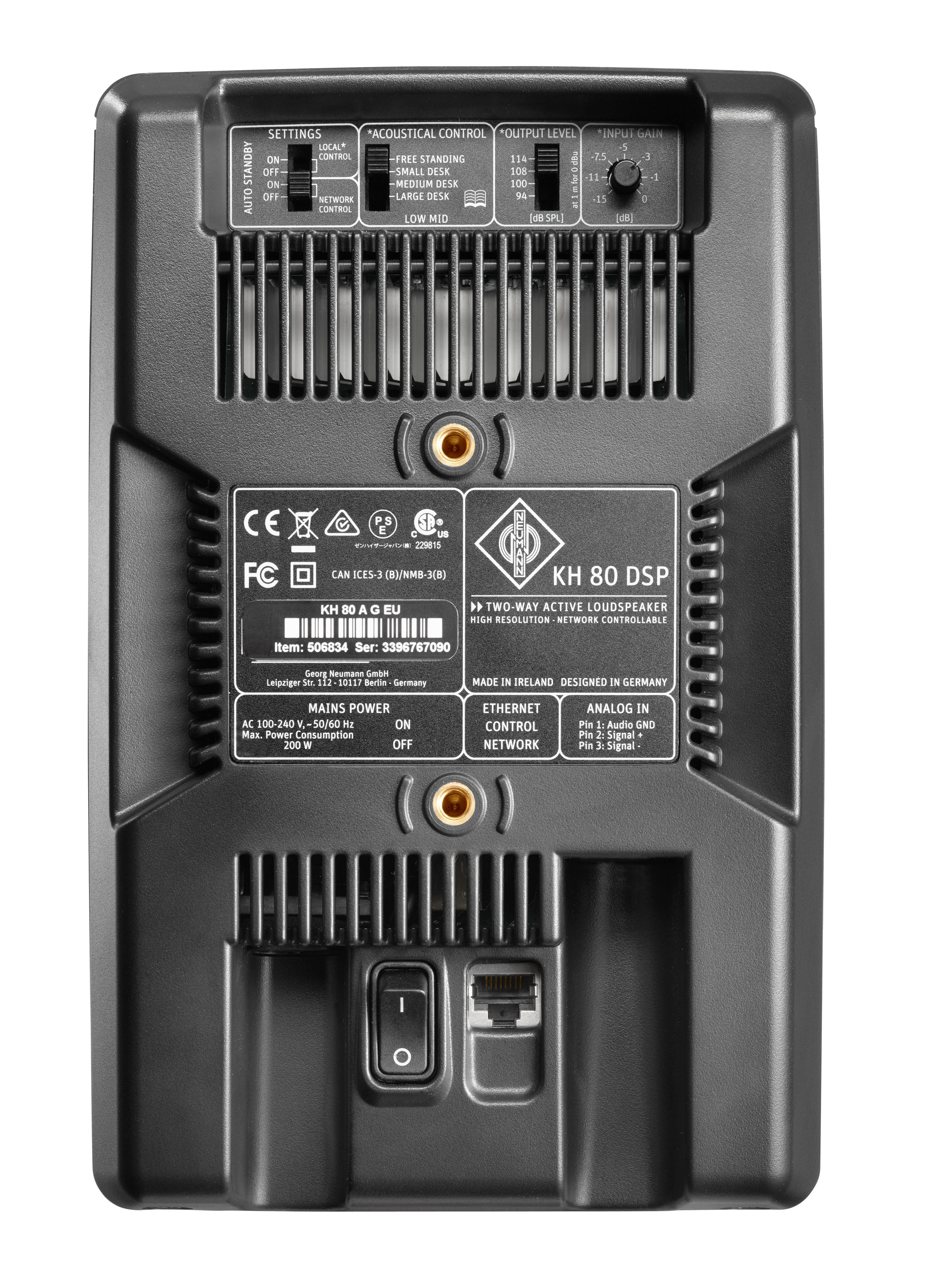

Mounting points 2 x M6 threaded inserts with 70 mm spacing on back panel, depth from outside of cabinet 16 mm (5/8”).
Product dimensions
(height x width x depth), mm (inches)
233 x 154 x 194 mm (9 1/8" x 6" x 7 5/8")
Net volume, internal / external 3.7 liters / 7.0 liters
Product weight 3.4 kg (7 lbs 8 oz)
Packed dimensions
(height x width x depth), mm (inches)
345 x 277 x 243 mm (13 5/8" x 10 7/8" x 9 5/8")
Packed weight and cube 4.1 kg (9 lbs 1 oz), 0.023 m3
Delivery includes

1x KH 80 DSP A
1x Mains cable
(European, UK, US, or CCC and KC)
4x Self-adhesive feet
1x Getting Started Quickly guide
1x Safety booklet
