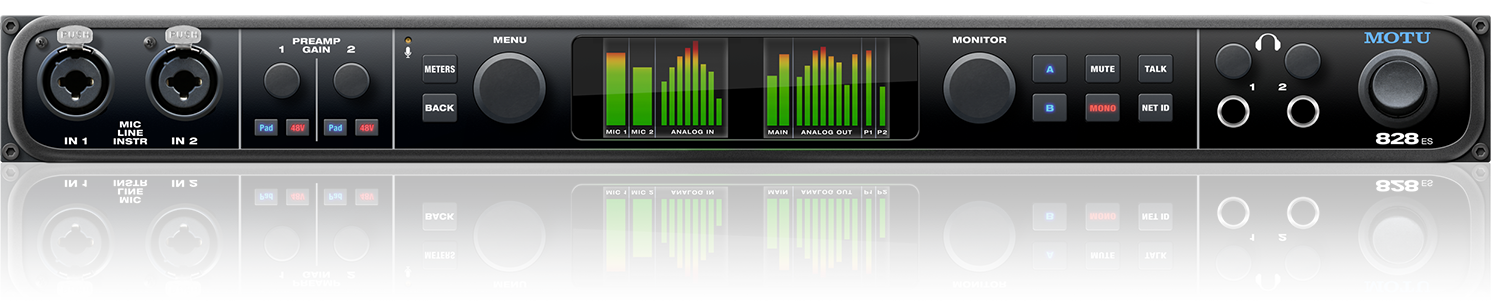

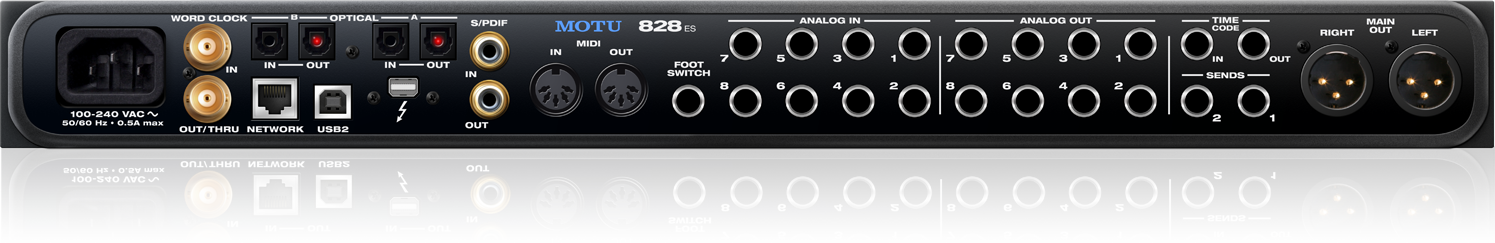

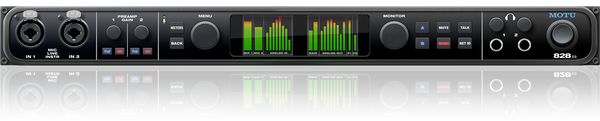

Motu 828es

Universal connectivityUSB and Thunderbolt for Mac, PC and iOSConnect to your Mac or PC with Thunderbolt™ or Hi-speed USB 2.0, with up to 256 audio channels (128 in and 128 out) over Thunderbolt. Or stream dozens of audio channels to and from your Mac over AVB/TSN Ethernet using a standard, affordable CAT-5e cable up to 100 meters long. Class-compliant firmware and industry standard drivers work with any audio apps. Connect to your iPad™ with a standard camera connection kit (adapter).

Redesigned mic channels

Cutting-edge components deliver ultra-transparent sound

Capture your recorded material in its truest, most natural form with -108 dB THD+N, 118dB dynamic range and -128dBu EIN performance. Each mic channel has individual preamp gain, pad, 48V phantom power and digital remote control. Do you work with outboard EQs and compressors? Each 828es mic input offers a pre-converter, hard-wired send for mono or stereo mic channel outboard processing.

Control room features

Take control of your recording sessions

Take control of your recording sessions with the built-in talkback mic and front-panel talk button. Connect two sets of speakers and check your mixes instantly with front-panel A/B speaker select buttons.

DSP mixing and effects

Console-style mixing with 48 channels and 12 busses

A full-fledged 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects including reverb, 4-band EQ, gate and compression. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours.

Modeled vintage effects processing

Vintage processing with 32-bit float precision

Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs. The 828es DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

Flexible matrix routing and splitting

Route your audio anywhere with one-click ease

Send any input to any output, or multiple outputs. Includes routing
to and from the computer, plus any devices on the audio network.

Web app control from any device

Control everything from your laptop, tablet and smartphone

The software that you use to control the 828es doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the 828es on-board DSP, mixing, device settings, and network audio routing from your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network. Use any web client on any platform - Mac, Windows, Linux, iOS, Android - as long as it shares the same network.



Touch Console

The art of the mix on your touchscreen

Designed specifically for touchscreen operation, Touch Console™ delivers a whole new mixing experience. Access Touch Console from your tablet or smartphone to effortlessly control the powerful 48-channel mixer and effects in the 828es. With large targets for your fingers, multi-touch operation and intuitive design, you can tap, swipe and pinch your way to a perfect mix, every time.



Stand-alone operation with wireless control

No computer or laptop neededConnect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.
