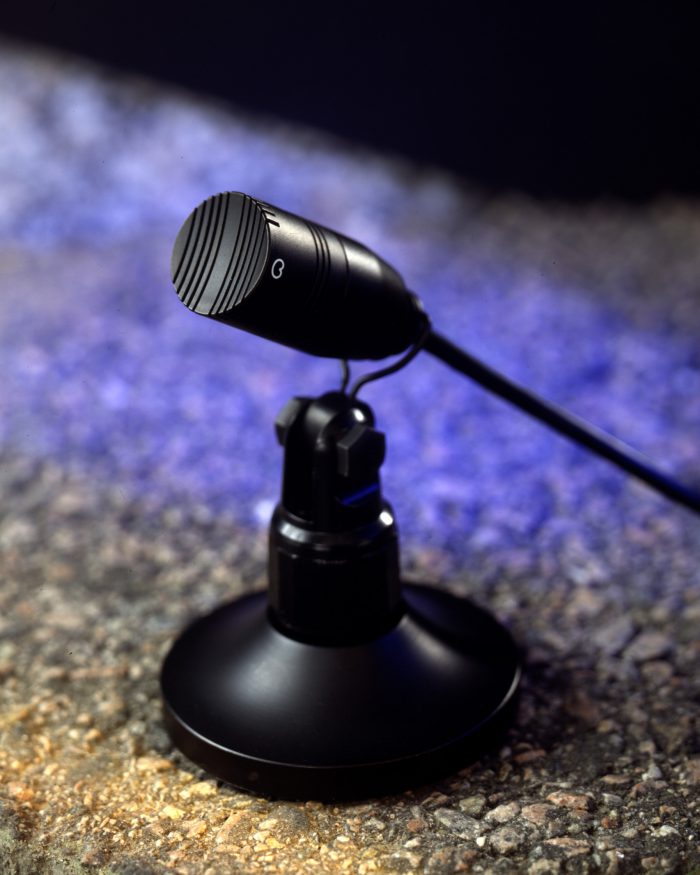

Milab VM-44 Link - Small Diaphragm Condenser Microphone

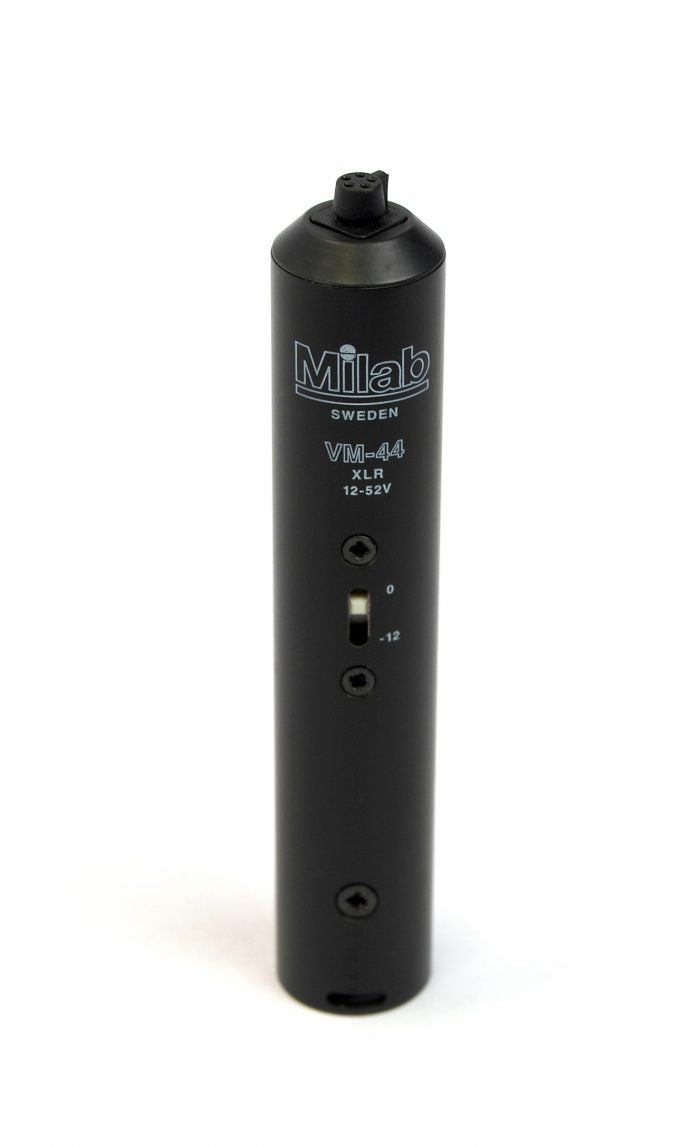

The VM-44 Link is an “active cable” version of the VM-44 where the capsule and the first stage of the amplifier is separated from the main amplifier by a cable. The standard length is 3 meters (ca 10 feet), but it can be customised. The main amplifier connects directly to an XLR-input with no need for an XLR-cable.

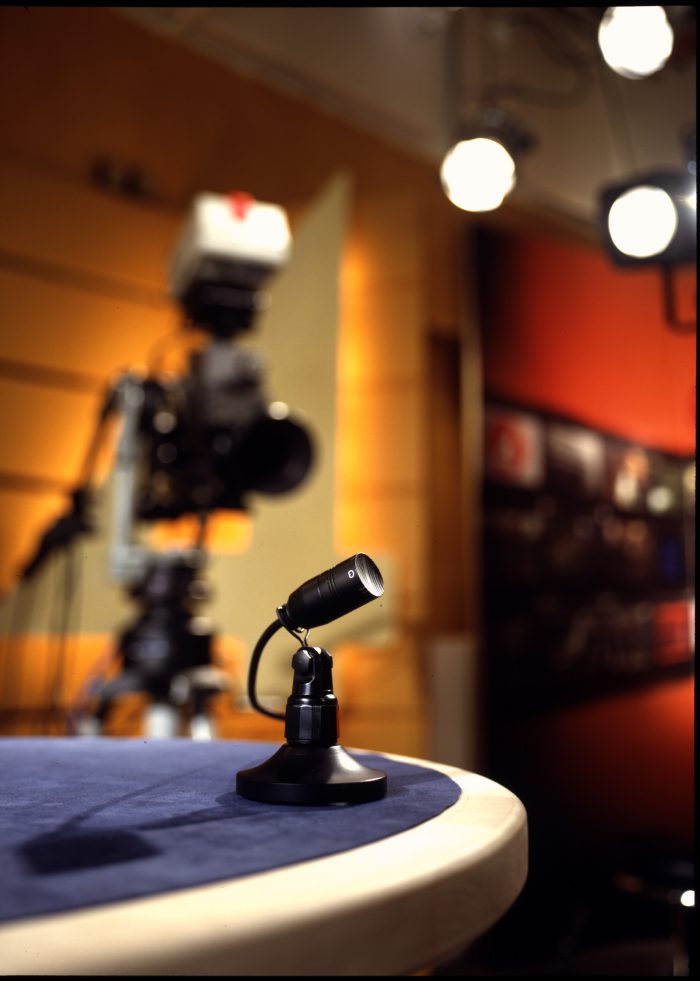

The separation of the amplifier means that the capsule end of the VM-44 Link is extremely compact and light, making it excellent for field recordings, stereo setups or as a discreet podium microphone when used in combination with the TS-44 table stand.

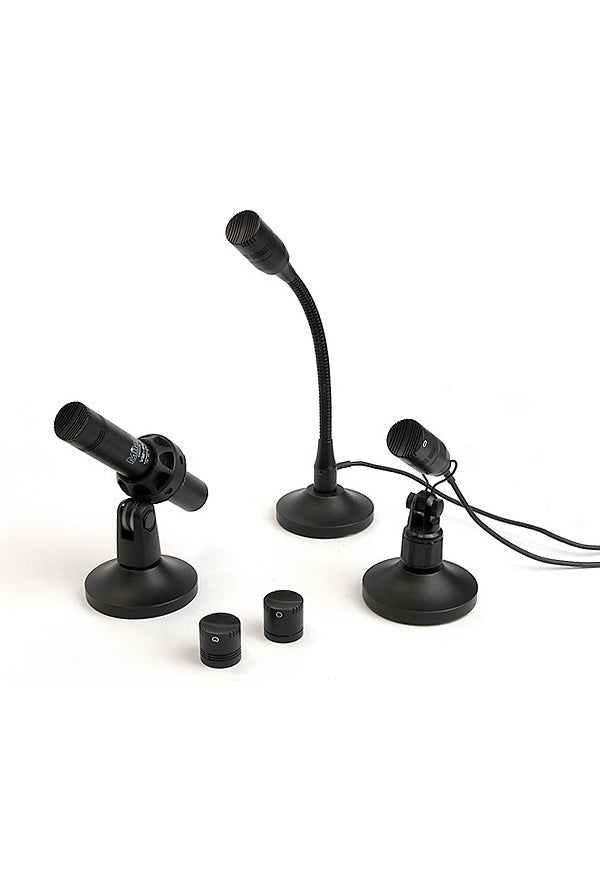

There are currently three different (interchangeable) capsules available for the VM-44 Link: Cardioid, omni and supercardioid.

Package includes: Stand holder, 3406 windscreen and an individual frequency graph.

Features

• Interchangeable capsules
• Transformerless
• 12 dB attenuation pad
• 12-52 V phantom
• XLR-amp fits direct to mixer
• Gold plated XLR connector

Specifications

• Product name

  Milab VM-44 Link

• Type

  Condenser

• Article number

  1128

• Frequency response

  20 to 20,000 Hz

• Polar pattern

  Cardioid*

• Pre-attenuation pad

  -12 dB (switchable)

• Max SPL (1 % THD at 1 kHz)

  128 dB*

• Max SPL with 12 dB pad

  140 dB*

• Sensitivity at 1 kHz

  15 mV/Pa (± 1 dB)*

• A-weighted noise level (IEC 179-A)

  18 dBA (typical); 19 dBA (max)*

• Power supply

  12-52 V Phantom (DIN/IEC)

• Current consumption

  4 mA

• Output impedance

  <200 Ω

• Minimum load impedance

  1 kΩ

• Connection

  3-pin XLR

• Cable length

  3 m or customer specified

• Length (active capsule)

  49 mm

• Diameter (active capsule)

  21 mm

• Net weight (active capsule)

  50 g

• Length (XLR amplifier)

  105 mm

• Diameter (XLR amplifier)

  19 mm

• Net weight (XLR amplifier)

  85 g
