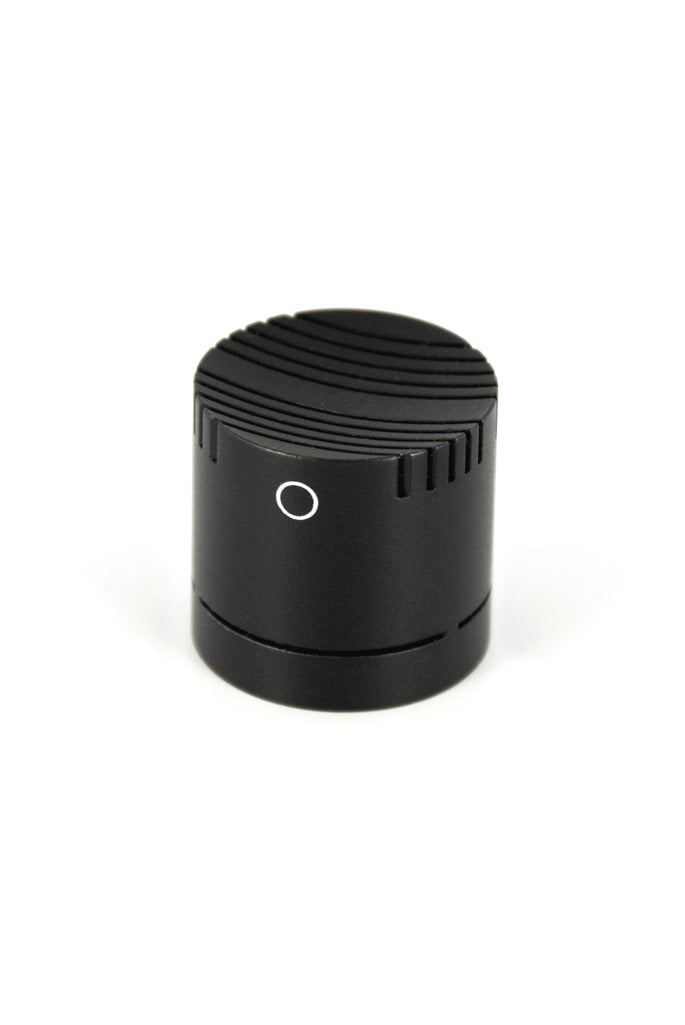

Milab VM-44 Replacement Omni Capsule

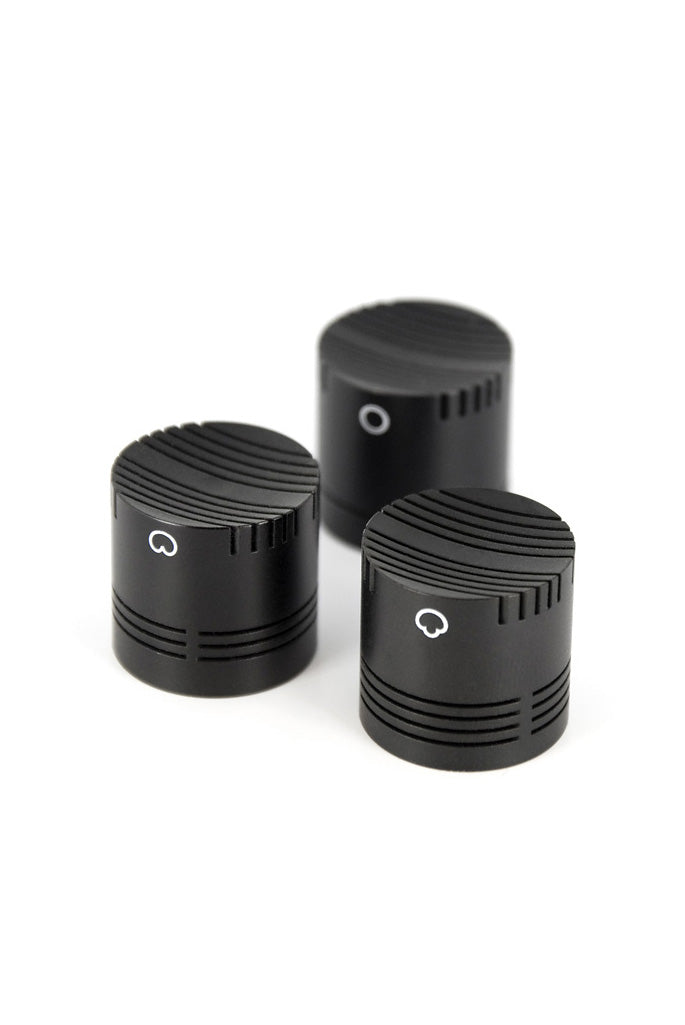

The VM-44 Omni is an interchangeable capsule for the VM-44 system and has been designed to provide the same natural sound that has made the VM-44 the best selling Milab product ever. The VM-44 is also available with a cardioid (standard) and a supercardioid capsule.

Suitable for: VM-44 Classic, VM-44 Link & VM-44 Gooseneck

Specifications

• Product name

  Milab VM-44 Omni Capsule

• Type

  Condenser

• Article number

  1145

• Frequency response

  20 to 20,000 Hz

• Polar pattern

  Omni

• Pre-attenuation pad

  -12 dB (switchable)

• Max SPL (1 % THD at 1 kHz)

  124 dB

• Max SPL with 12 dB pad

  136 dB

• Sensitivity at 1 kHz

  20 mV/Pa (± 1 dB)

• A-weighted noise level (IEC 179-A)

  16 dBA

• Power supply

  12-52 V Phantom (DIN/IEC)

• Output impedance

  <200 Ω

• Minimum load impedance

  1 kΩ

• Diameter

  21 mm
