PRO SERIES DL152
DL152 is a 2U 19" fixed-configuration rack I/O unit with 24 line level outputs and delivers legendary Midas sound quality utilising our time-tested and road-proven technologies. Featuring two AES50 network ports providing dual redundancy, the DL152 is the ideal partner to all Midas PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.
Digital Audio Networking
SuperMAC (AES50-Compliant) digital audio networking technology from Klark Teknik simultaneously provides high channel counts, ultra low and deterministic latencies, sample-synchronous and phase-aligned networked clock distribution, error detection and correction, network redundancy, and ease of deployment and use – to meet the demanding requirements of live concert touring.
DL152 is compatible with all Midas digital consoles and audio system engines, as well as with any other AES50-equipped devices.
High Output Drive Line Outputs with Mute

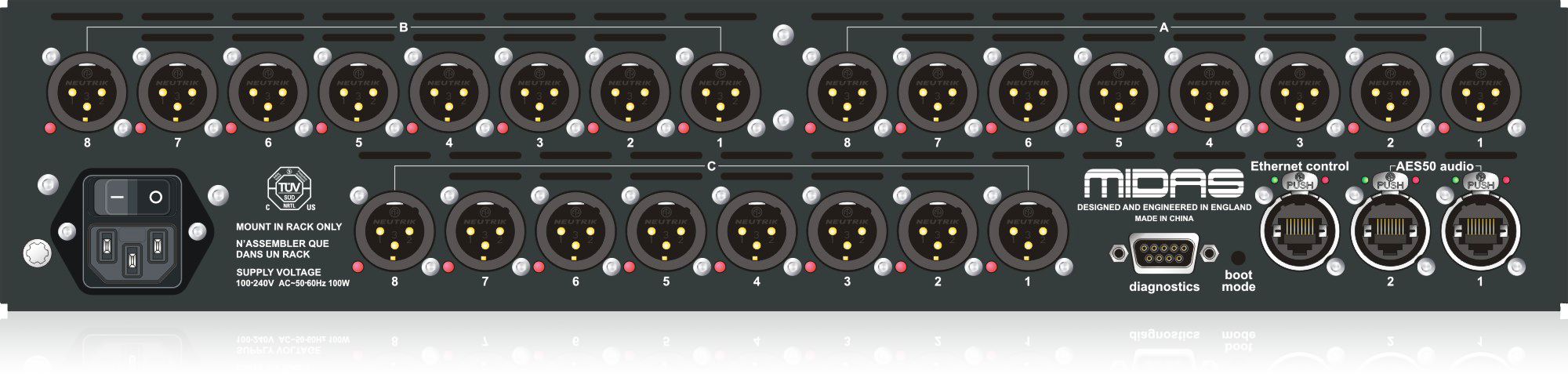

DL152 features 24 active servo-balanced low impedance line level outputs with high output current capability for driving long cable runs.
The outputs feature an automatic mute facility if the audio signal path is muted by the mixing console operator, and individual LED indicators are provided for each output connector.
24 electronically balanced low impedance line level outputs
Remote operation up to 100 m via CAT5/5e cable
Selectable 96 kHz or 48 kHz sample rate operation
All settings programmable from front panel controls or console

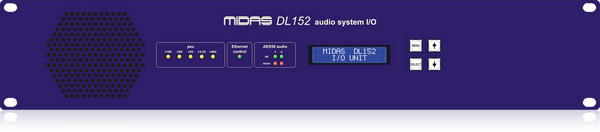

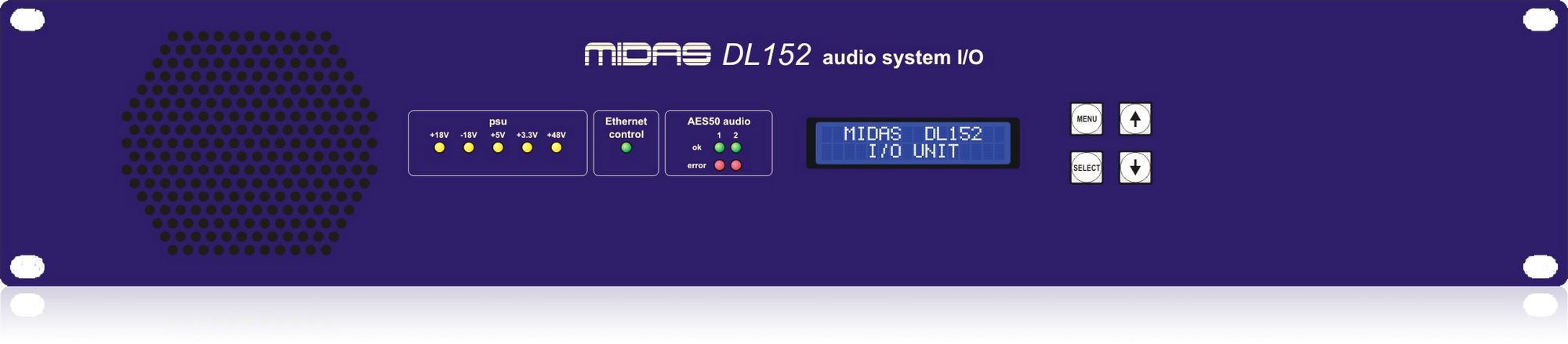

PSU status indicator LEDs and configuration LCD display on front panel
Supports dual redundant AES50 networks
Features Neutrik etherCON* AES50 network ports
Rugged 2U rackmount chassis for durability in portable applications
Auto-ranging universal switch-mode power supply
