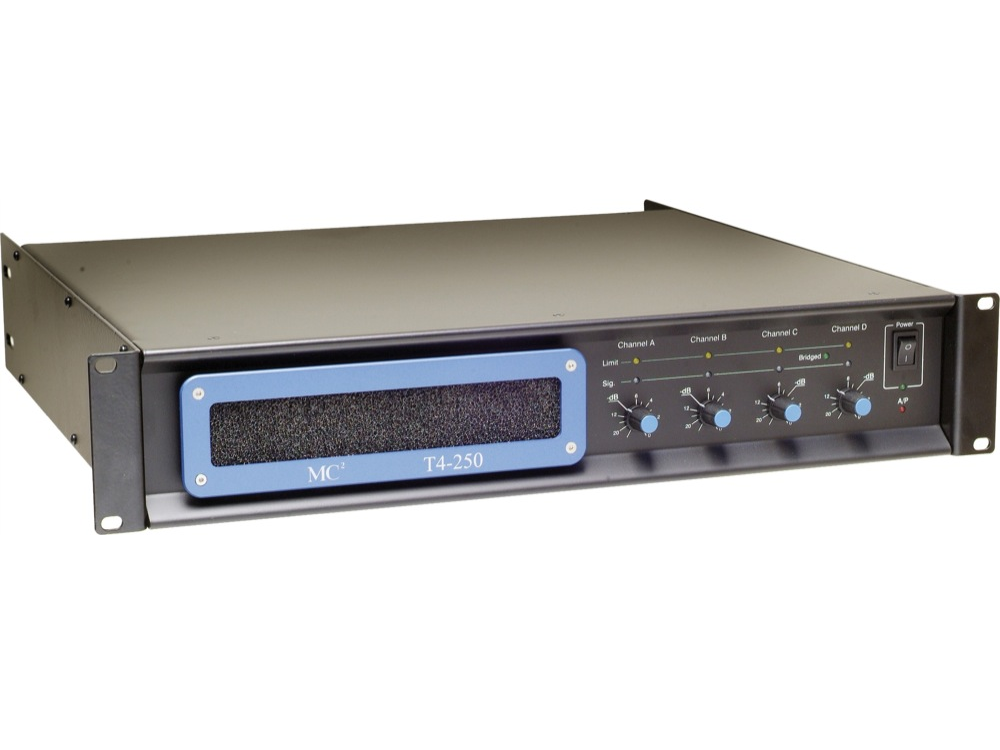

Designed for the fixed installation market, the high performance T Series features MC² Audio’s complementary Class AB bipolar topology and the unique MC² Audio current driven floating drive stage.
Conventional analogue level controls help deliver the cleanest sound available coupled with ultra-high standards of reliability. The T Series’ proprietary control and protection circuitry continuously checks for fault conditions including shorted outputs, DC on outputs, excessive temperature, and component failure. If such an event occurs the outputs are disconnected, saving expensive driver repair bills.
Sophisticated 'side chain' limiters prevent distortion and speaker damage but are out-of-circuit until the onset of clipping. The control circuitry provides full protection against inrush current limiting with delayed 'turn on'. Low noise vari-speed fans are utilized to minimize mechanical noise, making the T Series an ideal choice for live theatre. Optional internal crossover cards available.
All MC² Audio products are covered by a 5 year warranty.
|Number of Channels:
||20Hz to 20kHz
(+ 0/- 0.5dB)
|Output Power: (per channel)*C&D only||Power Consumption:|
|8 ohms||160W||Nominal @ 240v into 4 ohms||1.5A|
||300W||Nominal @ 120v into 4 ohms||3.0A|
||Dimensions: (2U) (mm)|
|Output Power: (bridged)*C&D only||Amplifier||88(h) x 482(w) x 428(d)|
||600W||Single Box (UK shipping)||230 x 580 x 560
||Double Box (outside UK)
||250 x 610 x 600|
|THD%: (@1dB below max output)||Weight:
|20Hz to 20kHz
||Boxed (shipping weight)
|Gain / Sensitivity:||
|Sensitivity (for max power)
