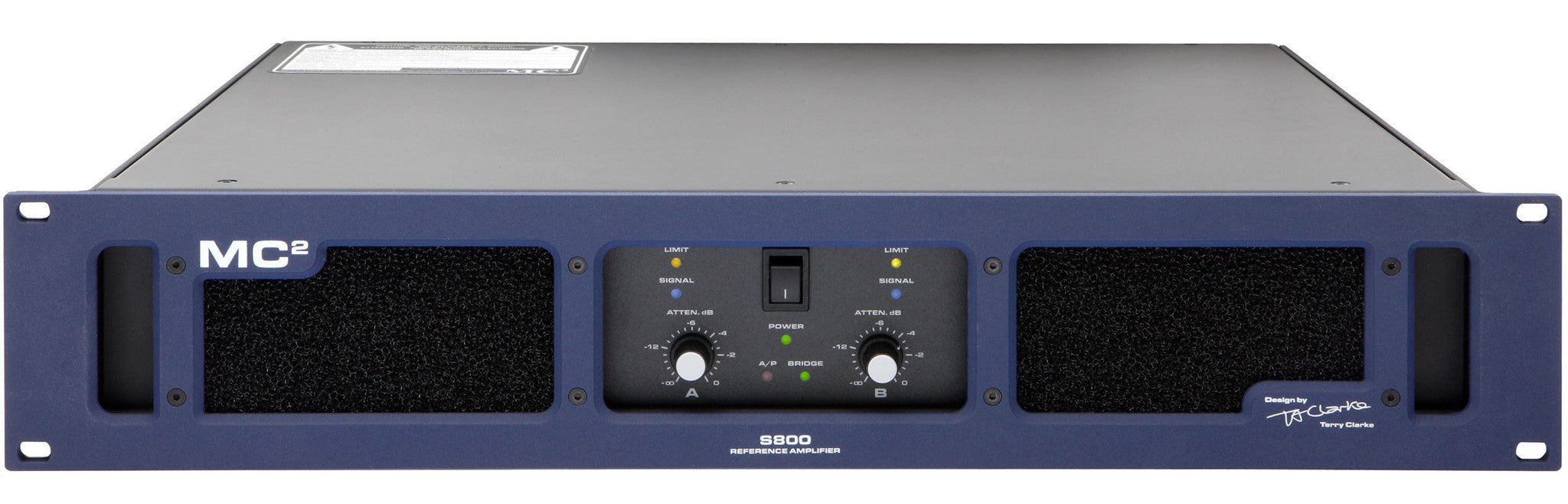

MC2 Audio S800

SKU: S800
$ 3,600.00



Designed for use in the best studio monitoring environments, but equally at home in any application where transparency and “no compromise“ performance are the focus, the S Series deliver the sound quality and reliability expected from MC².

The S Series utilise the best complimentary AB bipolar output stages, combined with the unique MC² current driven floating drive stage along with analogue level controls for minimal signal degradation.

Sophisticated “side-chain” limiters prevent distortion and speaker damage, but are out-of-circuit until the onset of clipping so do not compromise the signal path under normal working conditions.

A bespoke high fidelity shielded toroidal power supply combined with intelligently controlled low noise fans provide optimum conditions for the output stages, ensuring the only thing you will ever hear is your sound.

All MC² Audio products are covered by a 5 year warranty.

Number of channels 2
Output Power: (per channel)
8 ohms 475W
4 ohms 950W
2 ohms 1550W
Output Power: (bridged)
8 ohms 1900W
4 ohms 3100W
THD%: (@1dB below max output)
@ 1kHz <0.007%
20Hz to 20kHz < 0.03%
Gain / Sensitivity:
Gain 32/36dB
Sensitivity (for max power) +5.5/1.5dBu
(1.4/0.9V)
Frequency Response: 20Hz to 20kHz
(+ 0/- 0.5dB)
Power Consumption:
Nominal @ 240v into 4 ohms 2.1A
Nominal @ 120v into 4 ohms 4.2A
Dimensions: (2U) (mm)
Amplifier 88(h) x 482(w) x 428(d)
Single Box (UK shipping) 230 x 580 x 560
Double Box (outside UK) 250 x 610 x 600
Weight:
Amplifier 20.5kg
Boxed (shipping weight) 22.3kg
