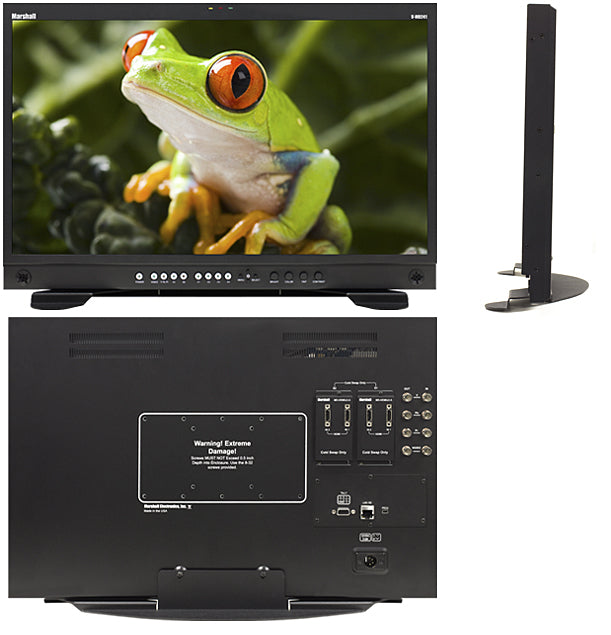

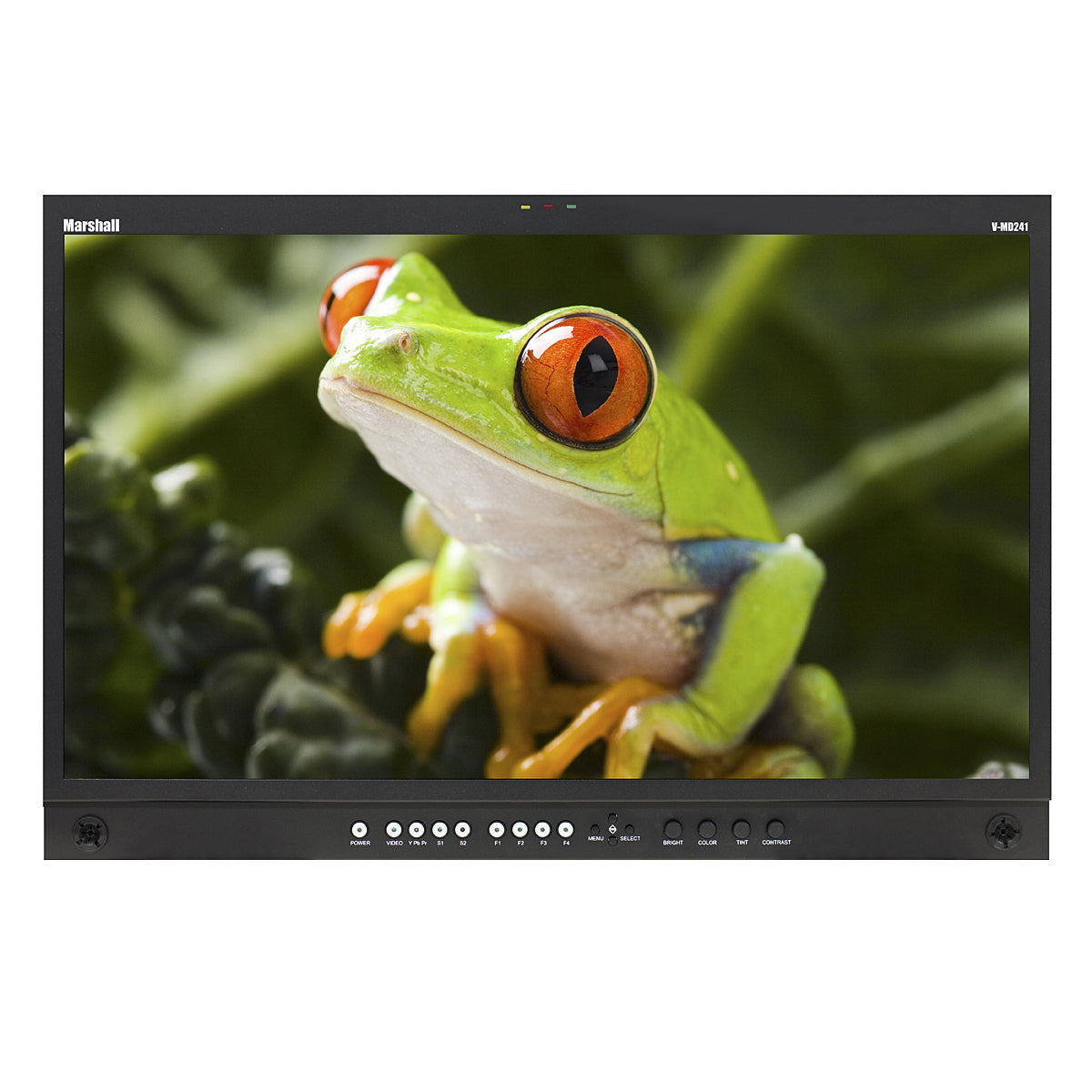

Marshall V-MD241 - 24" Monitor

Model

Marshall V-MD241 - 24" Monitor

24", 1920x1080 Resolution Desktop Monitor with Modular Inputs and Network Control

Swap and interchangeable video modules
Native 1920 x 1080 resolution screen
Two available input slots

Network Control

V-MD series rack LAN port built-in web server Each V-MD series rack includes a LAN port with a built-in web server. This allows the operator to visually monitor and control any or all V-MD series units that are connected to the LAN. Any function that is addressable from the front panel of a V-MD series monitor can be accessed via any Firefox® web browser -- even on a wireless device.** The rear panel LAN 100 port connects the unit to the LAN.

Once connected, the user simply locates the IP address of any one of the units connected to the LAN. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This will then display the IP address of that unit. V-MD units are shipped with the DHCP mode enabled.

MD Network Control IP Address on screen sample Simply type this IP address into the address bar of your browser and the home page for that unit will appear. It is possible to poll your LAN for all other MD units connected by accessing the NETWORK tab from the Top Menu.

MD Network Control Power and Input The user can then control multiple networked MD monitors at once using a single browser page. The user may select which monitor(s) they wish to control and send commands to those particular monitors. The browser provides real-time status of any connected monitor, ensuring consistent signals / feeds and so forth.

** A wireless hub must be part of the LAN to have this function.

False Color Filter

The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people).

IMD and Tally

Use the "Text Enable" function to turn the MD Text feature ON. This will cause the "Text String" to appear on the lower portion of the screen. This provides the user with a 16 character on-screen text string. The color, background (opacity), and alignment of text can also be managed by the operator. This same menu allows control of Tally Source. Tally lights (both LED and on-screen) can be enabled/disabled and also set to match "Text String" color.
