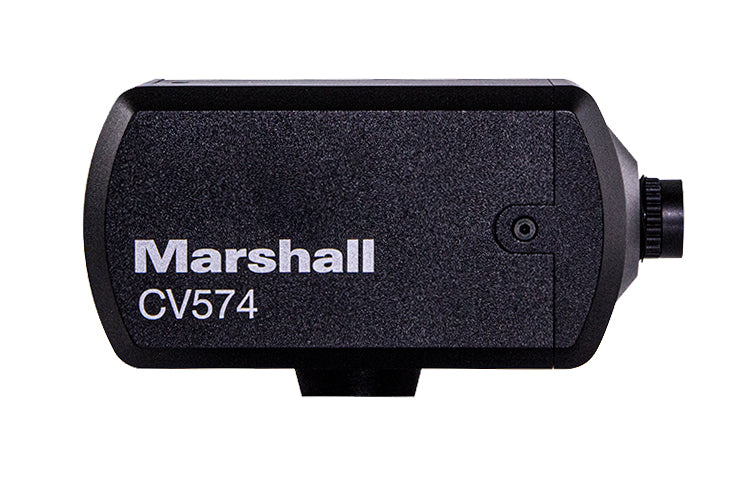

Marshall CV574 - Miniature UHD Camera NDI HX3 and HDMI

Sale price$ 949.00 Regular price$ 999.00
Save $ 50.00
SKU: CV574

Call us at 1-877-223-8858 or Ask a Question below

Marshall CV574 - Miniature UHD Camera NDI HX3 and HDMI

Model

Marshall CV574 - Miniature UHD Camera NDI HX3 and HDMI

The Marshall CV574 network streaming POV camera is built around a Sony UHD sensor with over 8.46 million pixels. The miniature CV574 delivers exceptional 4K (Ultra-HD) video performance via HDMI and ethernet IP interface supporting the ultra-efficient NDI HX3, SRT, HEVC codecs from a durable aluminum alloy build with rear I/O protection wings. The Ultra-HD Sony sensor offers crystal clear and rich color accurate video with improved low light sensitivity, refined remote adjust capability and flexible interchangeable lenses.

NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec

Featuring the extremely efficient NDI HX3 codecs gives the miniature CV574 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.

Interchangeable M12 Lenses

Marshall CV574 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.

Durable, Flexible, Powerful

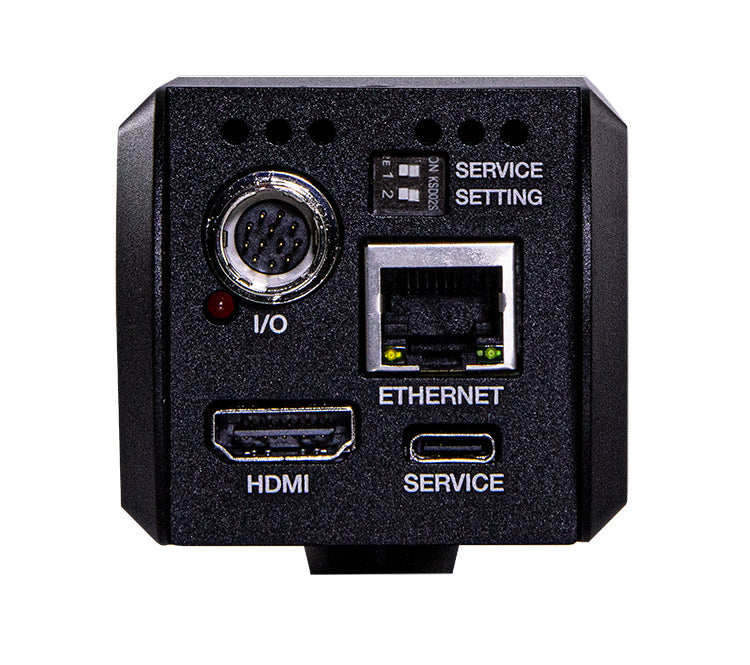

The miniature CV574 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet miniature size with rear I/O protection. CV574 operates with exceptional low-light sensitivity, ensuring a clear Ultra-HD picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows.

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
  • 8.46 Megapixel 1/2.8" Sony solid-state image sensor
  • Interchangeable M12 lens mount comes with 4.0mm – 85° H.AOV lens
  • 3840x2160p, 1920x1080p, 1920x1080i & 1280x720p resolutions available
  • Framerates: 60, 59.94, 50, 30, 29.97, 25fps
  • HDMI + network support for NDI HX3, RTSP, RTMP, SRT with H.264 and HEVC streaming codecs
  • One-cable to camera option for power (PoE), video, audio, and remote setting control
  • Remote adjust & match via Visca over IP, NDI|Tools, and camera control webpage
  • PoE over Cat cable or 12V power with included power supply

Applications:

The Miniature CV574 is suitable for use in AV over IP or HDMI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.
