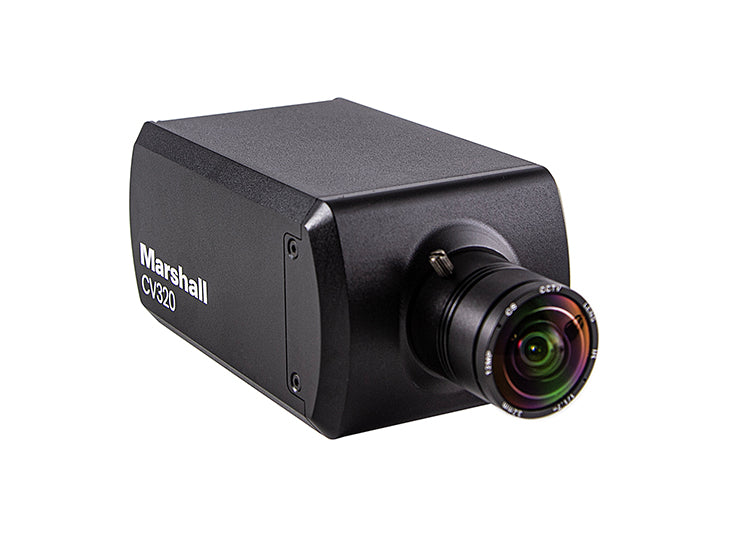

Marshall CV320 Compact Full HD IP & 3G-SDI Camera
The Marshall CV320 is a compact professional camera built for broadcast, streaming, AV-over-IP, live production, sports, corporate video, and other applications where high-quality video needs to fit into a discreet, durable form factor.
Its 2.12-megapixel 1/2.86" progressive CMOS sensor delivers Full HD video with strong low-light performance and 10-bit 4:2:2 output over 3G-SDI. The camera can simultaneously deliver 1920x1080p60 over 3G-SDI and IP, with network streaming support for SRT, RTSP, and RTMP using H.264 or HEVC codecs.
The interchangeable CS/C lens mount allows the CV320 to be configured with a wide range of prime and varifocal lenses, making it suitable for both wide-angle and longer-throw applications.
Key Features
-
2.12MP 1/2.86" progressive CMOS sensor
-
Full HD 1920x1080 video up to 60fps
-
Simultaneous 3G-SDI and IP output
-
10-bit 4:2:2 video over 3G-SDI
-
SRT, RTSP, and RTMP streaming
-
H.264 and H.265/HEVC encoding
-
Interchangeable CS/C lens mount
-
Lens sold separately
-
Low-light sensitivity down to 0.005 lux in night mode
-
Audio input for embedding audio into IP output
-
VISCA over IP and VISCA over RS485 control
-
Web-based camera control interface
-
PoE capability
-
Compact aluminum-alloy construction
-
1/4"-20 mounting point
Technical Specifications
Sensor: 1/2.86" Progressive CMOS
Effective Pixels: 1920 × 1080
Resolution: Up to 1920 × 1080p60
Video Output: 3G-SDI and Ethernet/IP
SDI Color: YCbCr 4:2:2, 10-bit
IP Codecs: H.264 / H.265 HEVC
Streaming: SRT / RTSP / RTMP
Lens Mount: CS/C mount
Lens: Sold separately
Minimum Illumination: 0.01 lux Day / 0.005 lux Night
Audio: Line-level input, 22.05kHz / 44.1kHz
Control: VISCA over IP / VISCA over RS485 / Web GUI
Power: 12V DC or PoE
Dimensions: 113.54 × 64 × 53 mm, without lens
Weight: 0.85 lb, without lens
Professional Applications
Ideal for broadcast, live production, streaming, AV-over-IP, sports, eSports, corporate video, courtroom capture, government assemblies, concerts, houses of worship, reality television, and POV camera installations.
