Lavry Engineering SAVITR (MWC)

Sale price$ 8,600.00
Sold out

Call us at 1-877-223-8858 or Ask a Question below

Lavry Engineering SAVITR (MWC)

Model

Lavry Engineering SAVITR (MWC)

The AD-24-200 Savitr provides improved quality, and ease of use for the most technically demanding recording and mastering studios.

This frankly astonishing converter outperforms our previous AD122 series converters across the board. The Savitr grants low distortion which redefines the industry standard.  It extends the clock range to include 192 kHz, and automates the search for external clock signals.

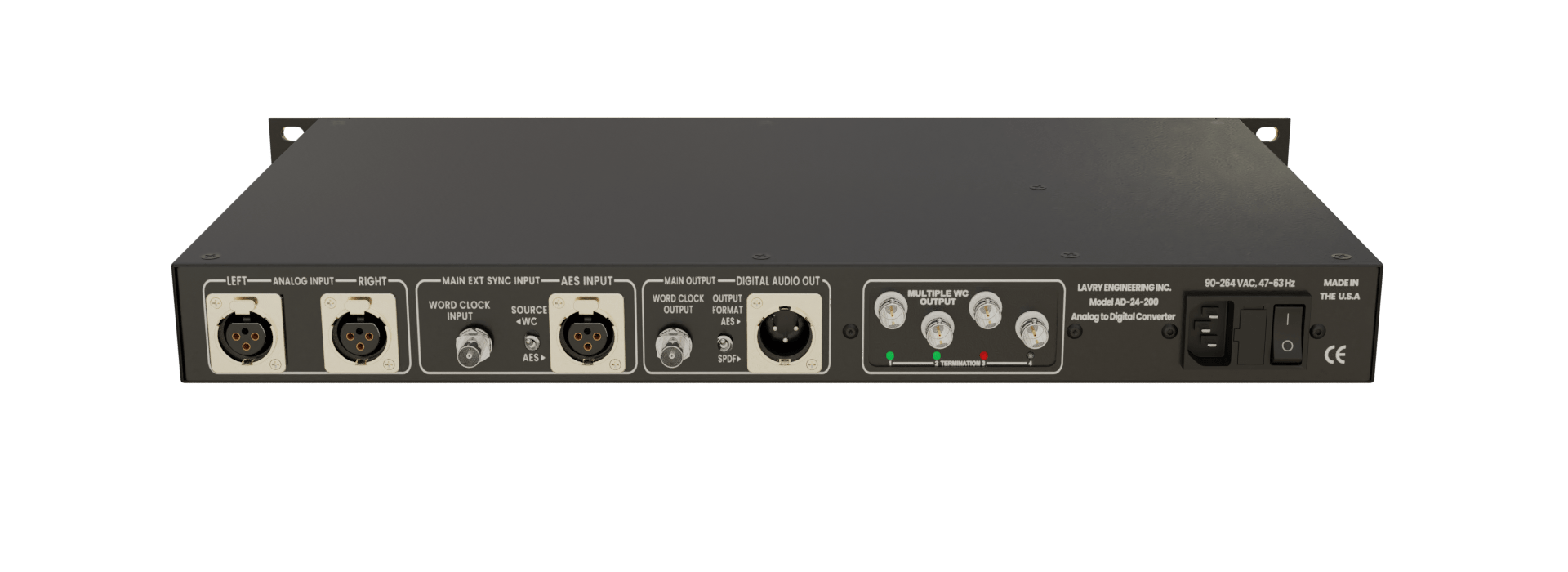

*The Multiple WordClock configuration of the Savitr includes 4 additional WordClock outputs with termination sensing and indication LEDs.  Proper termination reduces clock jitter, providing lower distortion.  These outputs transform the Savitr into a superb masterclock for professional audio work.



COMPARISON TO LEGACY PRODUCTS

AD-24-200 AD122-96MKIII AD122-96MX
MX soft clipping User setting Unavailable fixed
THD+N Lower
Dynamic Range 126 dB (unweighted), 128 dB (A weighting)
Digital Outputs 1 1 1
Jitter Lower
Sample Rates 32-200kHz 44.1-96kHz 44.1-96kHz
Sample Locking Automatic Manual Manual
Normal Latency 130-471 µs 7-8 ms 7-8 ms
Low Latency Mode 86-153 µs Unavailable Unavailable
Soft Saturation 0, L1, L2, L3 0, L1 0, L1
Calibration Automatic External Signal External Signal
Power Dissipation Lower



Key features

FEATURES INCLUDE:

  Pristine audio performance (THD+N) up to 200 kHz sample rate

  Intuitive operation

  High-resolution meter display

  Stereo digital output

♪   Independent audio formats (AES/SPDIF)

♪   Independent clocking (Search & Lock/ Internal)

 Multiple WordClock Module

♪   WC outputs (4) with termination sensing and red/green LED indication

  User Select-able

♪   MX clipping (on/off)

♪   Soft saturation levels (4)

♪   Low Latency mode (on/off)

PERFORMANCE

THD+N (0 dB Internal Gain)

Analog Input Level Source Frequency Gain 20 kHz Bandwidth 40 kHz Bandwidth
-1 dBFS 1 kHz 0 dB -110 dBFS 0.00032 %FS -107 dBFS 0.00045 %FS
-0.1 dBFS 20 Hz to 20 kHz 0 dB -109 dBFS 0.00035 %FS -103 dBFS 0.00071 %FS
-1 dBFS 20 Hz to 20 kHz 0 dB -109 dBFS 0.00035 %FS -106 dBFS 0.00050 %FS
-3 dBFS 20 Hz to 20 kHz 0 dB -113 dBFS 0.00022 %FS -110 dBFS 0.00032 %FS

THD+N (with Internal Gain)

6 dB of Internal Gain:  Increases THD+N by less than 2dB of the values above.

Dynamic Range

Sample Rate Bandwidth Unweighted A-Weighted
44.1 kHz 20 kHz 126 dBFS 128 dBFS
96 kHz 40 kHz 122 dBFS 128 dBFS
192 kHz 80 kHz 104 dBFS 128 dBFS

Channel Separation

  • 1 kHz:                      123dBFS
  • 20-20 kHz:              108dBFS

Latency

Main Output
Conversion Rate Best Quality Low Latency
44.1 kHz 471 µs 153 µs
48 kHz 440 µs 150 µs
88.2 kHz 267 µs 109 µs
96 kHz 249 µs 103 µs
176.4 kHz 137 µs 89 µs
192 kHz 130 µs 86 µs
