Lab Gruppen E2:2

Sale price$ 869.00
SKU: LAB-E2:2

Call us at 1-877-223-8858 or Ask a Question below

Lab Gruppen E2:2

Model

Lab Gruppen E2:2

200 Watt Amplifier with 2 Flexible Output Channels

Product Features

  • 200 W amplifier carrying 2 flexible output channels in a high power density 1 rack unit form factor saves rack space and system cost

  • Energy efficient with Energy Star certification for supreme green credentials and exceptionally low lifetime running costs

  • Flexible IntelliDrive permits delivering the 2 x 100 W at constant voltage 70 V or low impedance (2, 4 and 8 Ohms) on any channel

  • Asymmetric channel loading allows mixing and matching loads with different impedances to maximize overall system efficiency and inventory utilization

  • High efficiency amplifier with low power consumption and minimized heat generation lowers demands on the installations' mains distribution and cooling systems

  • IDEEA outputs stage based on proprietary, state-of-the-art Class-D amplifier technology for superior performance

  • Comprehensive fail safe circuit protection ensures continued operation even under reduced operating conditions

  • Auto-standby and auto-power-on reduces power consumption to below 1 W in non-operating cycles

  • Rail Sense Limiter (RSL) greatly reduces signal clipping and ensures simple configuration for constant voltage and low impedance loads

  • Built in 50 Hz high pass filter selectable per channel available on rear panel switch

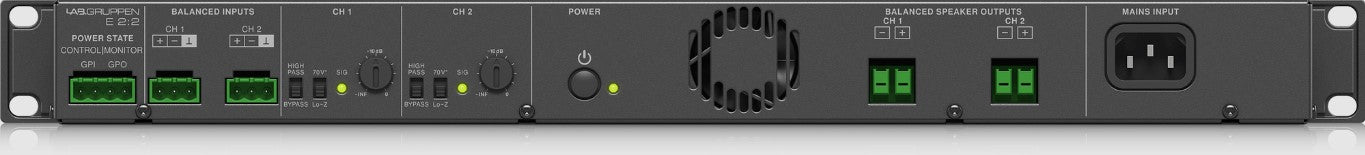

  • Per-channel attenuation knob and signal LED on rear panel for simple commissioning

  • Efficient cooling with temperature controlled fan with front to back airflow

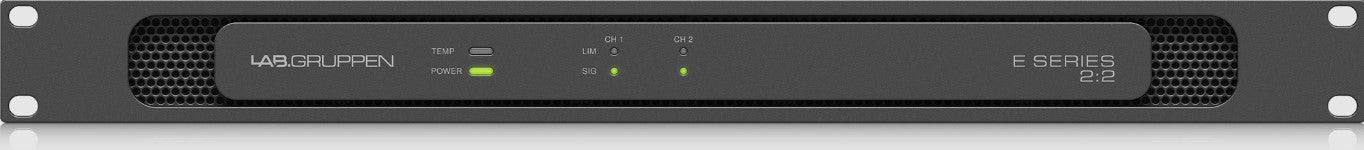

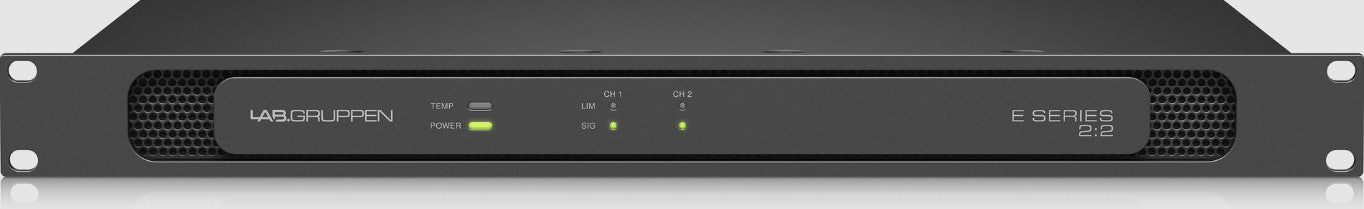

  • Aluminum front panel with power and temperature LEDs and per channel signal and limit LEDs

  • GPIO connector with power control and indication for further system integration

  • Balanced high-quality analog inputs and amplifier outputs on detachable screw terminals
