Lab Gruppen E10:4

1,000 W amplifier carrying 4 flexible output channels in a high power density 1 rack unit form factor saves rack space and system cost

Flexible IntelliDrive permits delivering the 4 x 250 W at constant voltage 70 V or low impedance (2, 4, 8 and 16 Ohms) on any channel

Asymmetric channel loading allows mixing and matching loads with different impedances to maximize overall system efficiency and inventory utilization

High efficiency amplifier with low power consumption and minimized heat generation lowers demands on the installations' mains distribution and cooling systems

IDEEA outputs stage based on proprietary, state-of-the-art Class-D amplifier technology for superior performance

Comprehensive fail safe circuit protection ensures continued operation even under reduced operating conditions

Auto-standby and auto-power-on reduces power consumption to below 1 W in non-operating cycles

Rail Sense Limiter (RSL) greatly reduces signal clipping and ensures simple configuration for constant voltage and low impedance loads

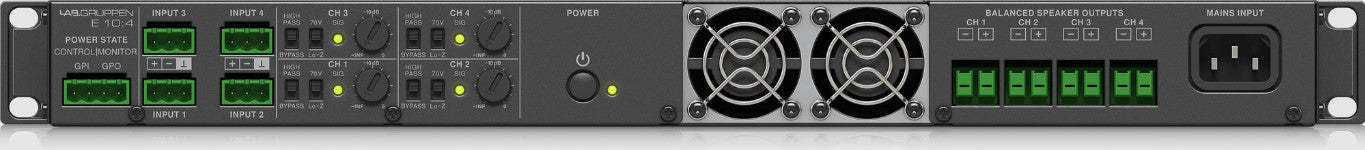

Built in 50 Hz high pass filter selectable per channel available on rear panel switch

Per channel attenuation knob and signal LED on rear panel for simple commissioning

Efficient cooling with temperature controlled fans with front to back airflow

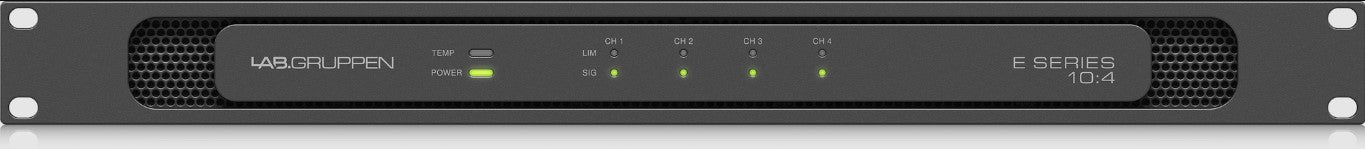

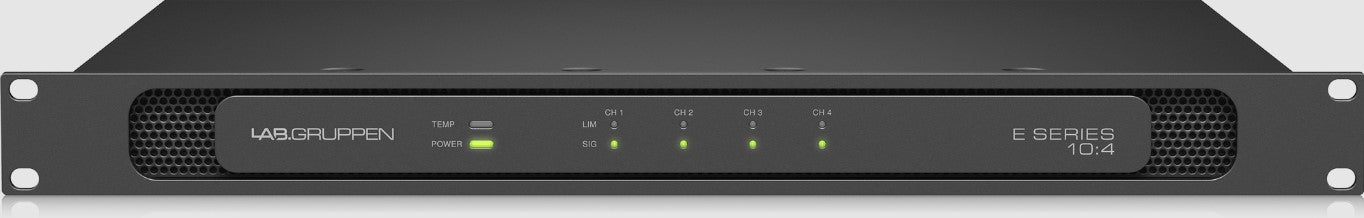

Aluminum front panel with power and temperature LEDs and per channel signal and limit LEDs

GPIO connector with power control and indication for further system integration

Balanced high-quality analog inputs and amplifier outputs on detachable screw terminals
