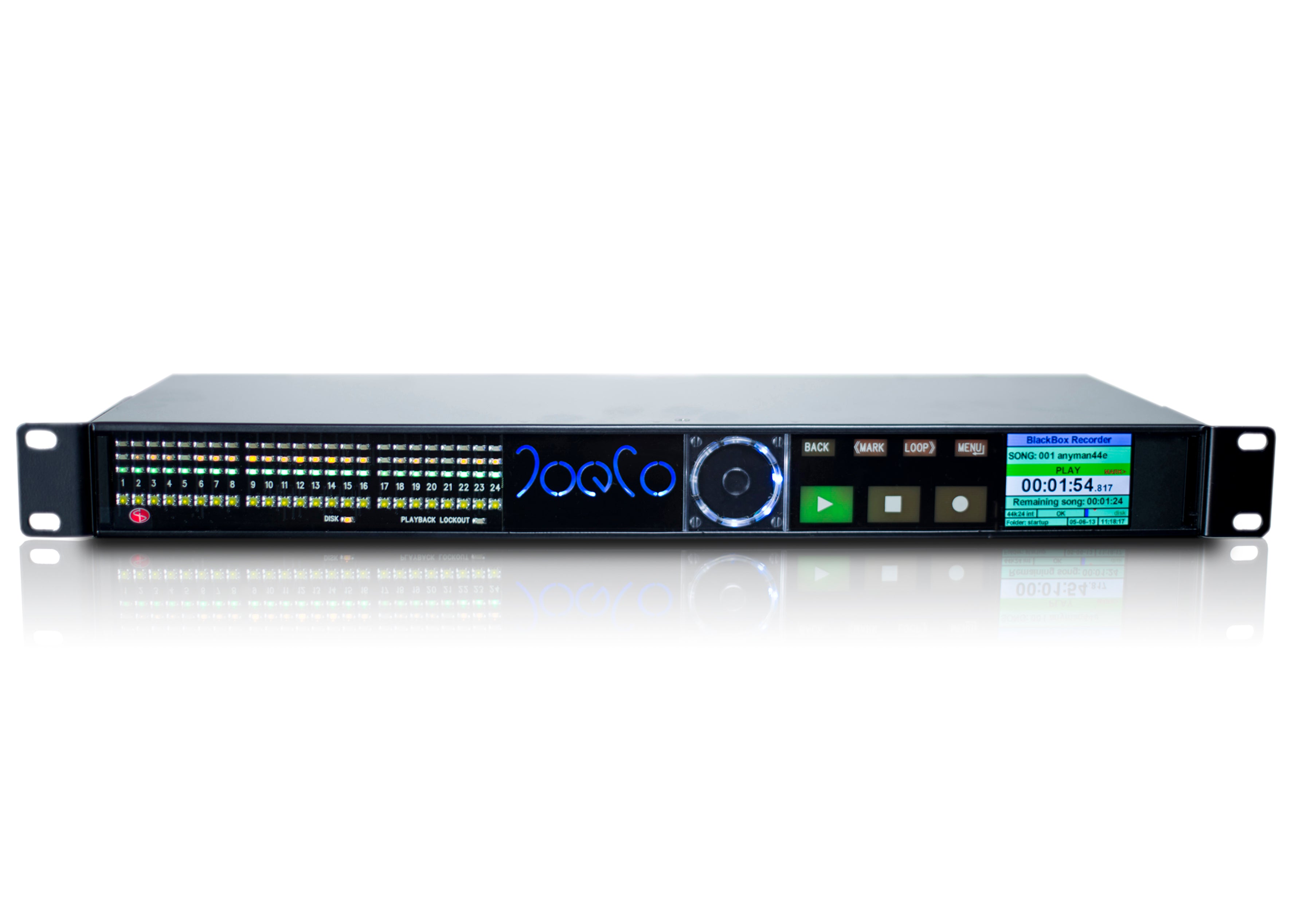

Joeco BBR1-A - BLACKBOX Recorder Hardware

The 24 channel BBR1A multi-track ADAT recorder brings the benefits of multi-track audio capture with the BLACKBOX Recorder to digital desks and D-A converters which are equipped with Lightpipe (TOSlink) inputs and outputs.

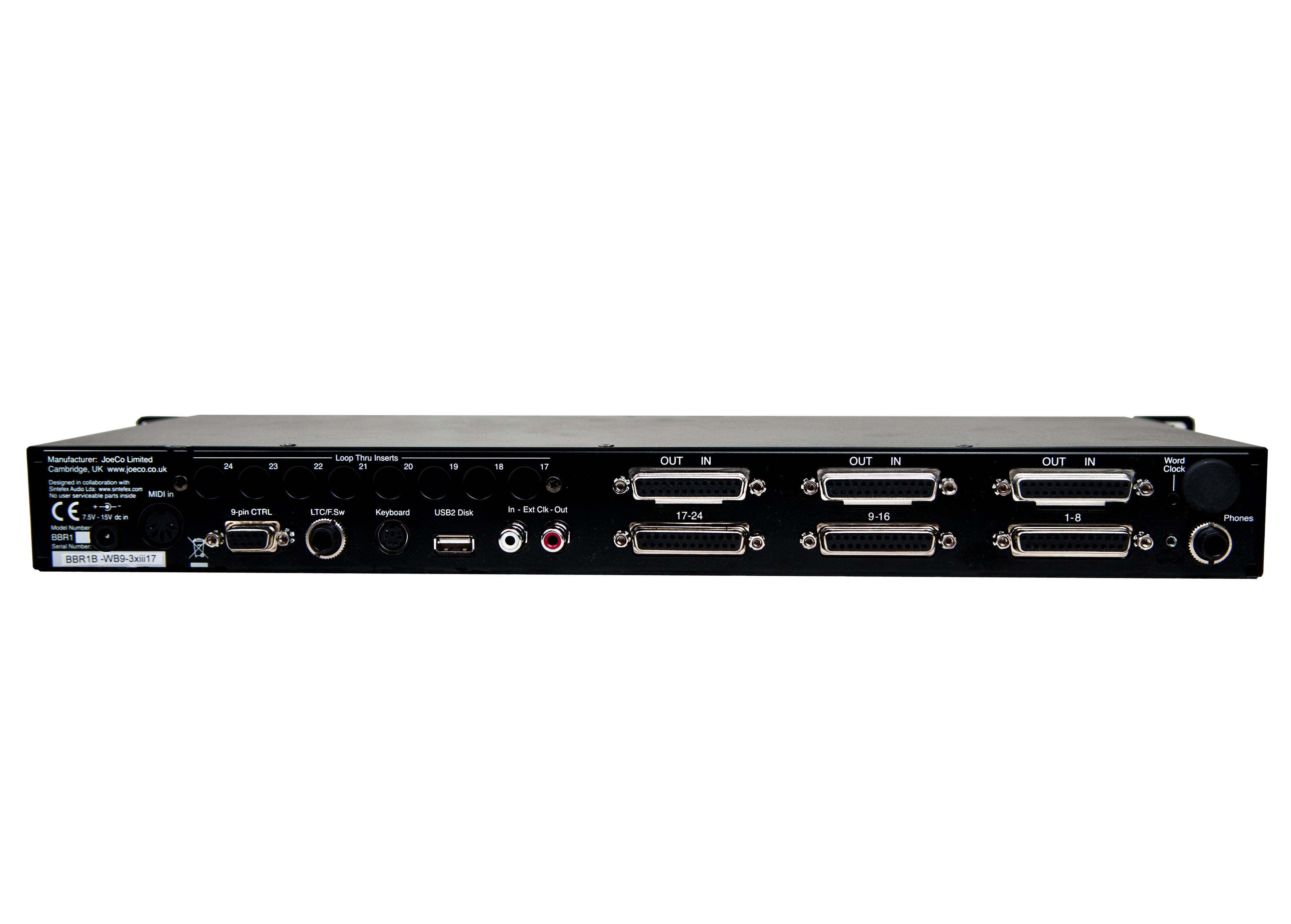

Three 8-channel Lightpipe inputs can be connected from the mixer while three Lightpipe outputs can return the signals back to the mixer. All other BLACKBOX multi-track recorder features remain unchanged, and the full analogue I/O capability of the standard BBR1 is still available for situations where the Lightpipe interface is not suitable.

All BLACKBOX recorders are designed and built to exacting standards with rugged construction and a suite of unique features. The choice of professional users, the BBR1A multi-track recorder is the solution the professional audio industry chooses and trusts. For more information, see below to download the BLACKBOX ADAT Recorder brochure, for full information on the entire BLACKBOX range.

Note: Due to limitations in the Lightpipe format, use of this option restricts 24-track recording to single speed sample rates (44.1kHz and 48kHz). At double sample rates the unit employs the SMUXII protocol reducing the I/O count to 12 channels. However, the full 24/24/96kHz facility is still available in the analogue domain.

BBR1A Specifications
