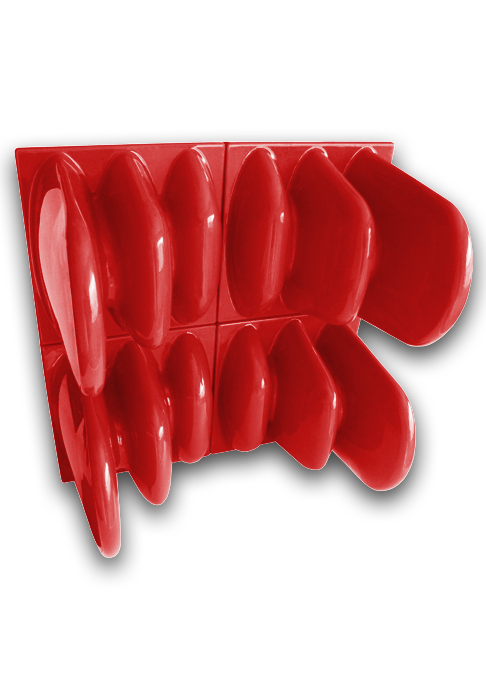

JOCAVI EFFECTFUSER Diffuser Panel

Sale price$ 625.00
SKU: EFX060

Size: EFX060 (D: 60x60x30cm W:5.4Kg)

Size

Call us at 1-877-223-8858 or Ask a Question below

JOCAVI EFFECTFUSER Diffuser Panel

Model

JOCAVI EFFECTFUSER Diffuser Panel

Diffusion shells are acoustic treatment elements used in large volume rooms, such as theatres and auditoriums, where orchestral concerts or mere recitals take place.

The installation of these acoustic diffusion components aims to project the natural sound from the instruments and maintain some liveliness in the room's acoustics. JOCAVI™’s EFFECTFUSER has been designed at the scale of these needs. It is a large-sized diffuser that provides a very homogeneous diffusion within the diffuse sound spectrum. Due to its shape and depth, the EFFECTFUSER has a high diffusion coefficient on medium/low frequencies, thus making it more balanced when compared with other diffusers. This piece can be coupled and multiplied in order to suit each room's project.

When mounted, several modules must be grouped in order to obtain a diffusion area that is proportional to each space. They are properly positioned on ceilings or walls in order to obtain sound diffusion at the intended angles.

EFFECTFUSER may also be used, like any other JOCAVI™ diffusion model, in combination with other models of absorption panels.

Features

  • Manufactured with recycled HIPS
  • Average diffusion: 0.61/m2 [>500Hz;<5KHz]
  • Fire-resistance: VO - UL94 standards (similar to M2)
  • 100% recyclable
  • Installation: accessories included

Tech drawings and Dimensions

Product Dimensions

 Model Height Width Depth Weight
EFX060 60 cm (23.62") 60 cm (23.62") 30 cm (11.8") 5.4 kg (11.9 lbs)
EFX120 120 cm (47.24") 60 cm (23.62") 30 cm (11.8") 10.8 kg (23.8 lbs)
EFXcombi 180 cm (70.87") 120 cm (47.2") 40 cm (15.7") 55.5 kg (122.4 lbs)



Absorption Coefficients



Colors and Finishings





Please give us a call and we can help you with what Panel and Color!
