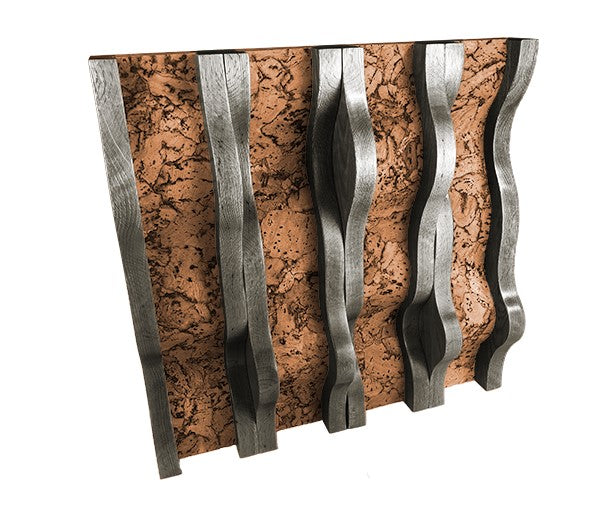

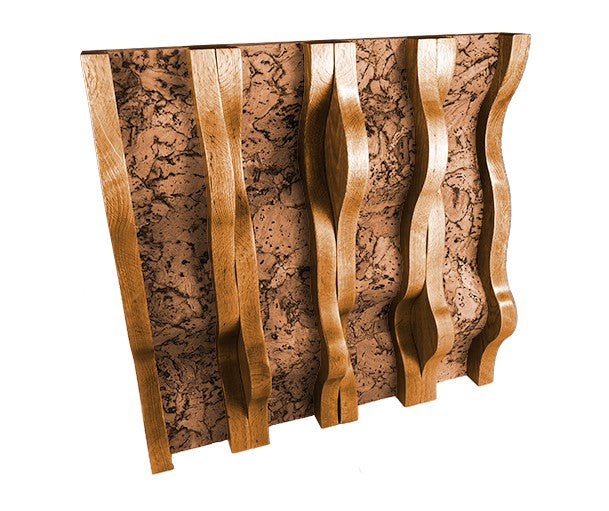

CORKoak is a wooden diffusion panel resulting from a combination process of oak wood with cork, which is one of the options concerning JOCAVI™'s 2D diffusion panels.
The use of 2D diffuser panels is one of the classic standards in the construction of music rooms, being extremely efficient to control primary reflections and floating echoes, thus improving the balanced sound atmosphere in the room.
Due to the absorption properties of the cork applied to the low reliefs of this piece, it makes the diffusion curve and the absorption curve closer to each other, thus revealing some interesting absorption coefficients.
This panel is made of solid oakwood and cork with a finish of five different colors of natural varnish. The wood and cork’s natural appearance stands out inside the rooms, providing this product a very attractive look, both acoustically and aesthetically.
FEATURES
- Manufactured with self-sustainable oak wood and cork
- Average diffusion: 0.59/m2 [>500Hz;<5kHz]
- NRC: 0.30/m2 [>250Hz;<10kHz]
- Finished with ecological varnishes
- 100% recyclable
- Installation: wall and ceilings accessories included
- Fire resistance: B-s1, d0 (Similar to old M3)
- Package: 2 units
Tech drawings
| Model | Height | Width | Depth | Weight |
| CCK060 | 60 cm (23.62") | 60 cm (23.62") | 12.75 cm (5 1/48") | 14 kg (30 lbs 14 oz) |
| CCK120 | 120 cm (47.24") | 60 cm (23.62") | 12.75 cm (5 1/48") | 28 kg (61 lbs 12 oz) |
| CCK180 | 180 cm (70.87") | 60 cm (23.62") | 12.75 cm (5 1/48")) | 42 kg (92 lbs 10 oz) |
Absorption Coefficients
Colors and Finishings
Standard Cork
Engineered wood:
Whether you’re looking to match your existing décor, or are in search of something truly unique to reflect your distinctive personality, there are myriad color options and materials to choose from. Save time and simplify your search by talking to a PAD representative about stock and customized treatment options for your studio.
These items are highly customizable, so give us a call at 1-877-223-8858 for a quote!
