BASMEL is a low-cost acoustic panel set to be applied in large quantities on ceilings and walls. It’s made of flexible open-cell melamine resin foam or of regular acoustic foam, a thermoset polymer and a fire-resistant fabric-finishing surface. The sound waves penetrate the open-cell structure, thus reducing the reflected energy and giving this product an excellent sound absorption capacity and simultaneously improving soundproofing, thereby providing safety in accordance with environmental standards.

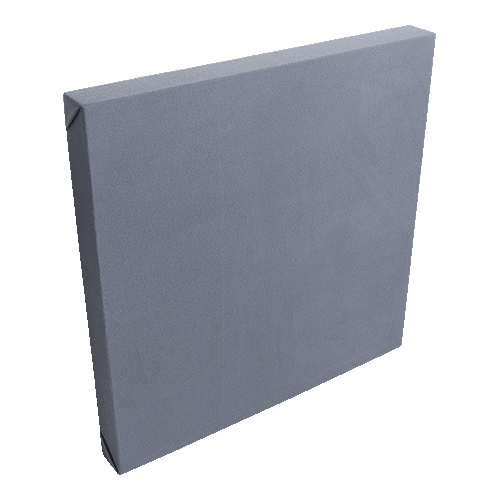

Several available options: one flat (BAL060/120), other one perforated MABS060 (with the same pattern from the COSMOS model), BASMEL SC (with more thickness and side covered with fabric - thus reducing the reflected energy and giving this product an excellent sound absorption capacity), BASMEL Plates (with more coverage area) and the most recent, the BASMEL Twist and BASMEL Bevel. All these models have different possibilties (different foams, fabric colours, shapes, etc).
The BASMEL’s acoustic and safety characteristics make this product ideal for use as a noise control and sound insulation device in buildings that have demanding requirements against fire. It improves acoustics and soundproofing, thereby providing safety in accordance with environmental standards.
Homes, meeting rooms, offices and hotel foyers can be acoustically upgraded just as effective and attractive by using this product. The installation method is very simple by using mounting glue or can be provided with self-adhesive on the back. To conceal the union between the panels, we also have, as an option, a roll of fabric adhesive tape(with 500x3cm) that can be applied.
- Raw material: Melamine Foam or Regular Acoustic Foam
- NRC: 0.80/m2 (40mm), 0.54/m2 (20mm) and 0.90/m2 (80mm - SIDE COVER Panels)
- MELAMINE FOAM - Flame resistance: Euroclass B-s1, d0 (similar to old M1 France, Germany B1,GB class1, USA V0/HF1)
- ACOUSTIC FOAM - Flame resistance: Euroclass B-s3, d1 (similar to old M1)
- Minimum 4 units (SIDE COVER panels) and 8 units
- Mounting glue and FABRIC ADHESIVE FINISHING TAPE sold separately
- SELF-ADHESIVE option available on request
Tech drawings and DimensionsProduct Dimensions
|BAL060sc||60 cm (23.6")||60 cm (23.6")||8 cm (3.1")||0.31 kg (0.7 lbs)|
|BAL120sc||120 cm (47.2")||60 cm (23.6")||8 cm (3.1")||0.6 kg (1.3 lbs)|
Colors and Finishings
Fabric covered regular foam
Fabric covered melamine foam
These items are highly customizable, so give us a call at 1-877-223-8858 for a quote!
