JOCAVI ATP BASMEL Absorbent Panel

Sale price$ 65.60
SKU: BAL060

Size: BAL060 (D: 60x60x4cm W:0.3Kg)

Size

Call us at 1-877-223-8858 or Ask a Question below

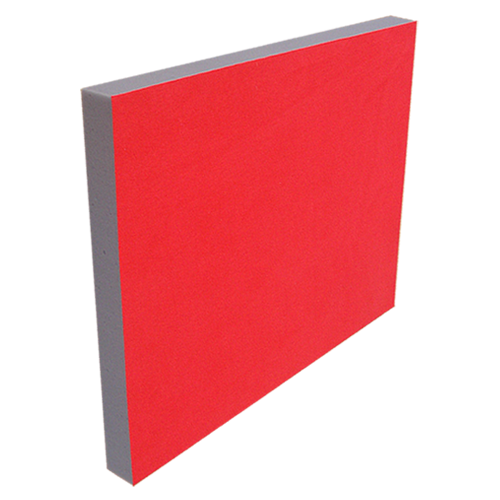

JOCAVI ATP BASMEL Absorbent Panel

Model

JOCAVI ATP BASMEL Absorbent Panel

BASMEL is a low-cost acoustic panel set to be applied in large quantities on ceilings and walls. It’s made of flexible open-cell melamine resin foam or of regular acoustic foam, a thermoset polymer and a fire-resistant fabric-finishing surface. The sound waves penetrate the open-cell structure, thus reducing the reflected energy and giving this product an excellent sound absorption capacity and simultaneously improving soundproofing, thereby providing safety in accordance with environmental standards.

Several available options: one flat (BAL060/120), other one perforated MABS060 (with the same pattern from the COSMOS model), BASMEL SC (with more thickness and side covered with fabric - thus reducing the reflected energy and giving this product an excellent sound absorption capacity), BASMEL Plates (with more coverage area) and the most recent, the BASMEL Twist and BASMEL Bevel. All these models have different possibilties (different foams, fabric colours, shapes, etc).

The BASMEL’s acoustic and safety characteristics make this product ideal for use as a noise control and sound insulation device in buildings that have demanding requirements against fire. It improves acoustics and soundproofing, thereby providing safety in accordance with environmental standards.

Homes, meeting rooms, offices and hotel foyers can be acoustically upgraded just as effective and attractive by using this product. The installation method is very simple by using mounting glue or can be provided with self-adhesive on the back. To conceal the union between the panels, we also have, as an option, a roll of fabric adhesive tape(with 500x3cm) that can be applied.

Features

  • Raw material: Melamine Foam or Regular Acoustic Foam
  • NRC: 0.80/m2 (40mm), 0.54/m2 (20mm) and 0.90/m2 (80mm - SIDE COVER Panels)
  • MELAMINE FOAM - Flame resistance: Euroclass B-s1, d0 (similar to old M1 France, Germany B1,GB class1, USA V0/HF1)
  • ACOUSTIC FOAM - Flame resistance: Euroclass B-s3, d1 (similar to old M1)
  • Minimum 4 units (SIDE COVER panels) and 8 units
  • Mounting glue and FABRIC ADHESIVE FINISHING TAPE sold separately
  • SELF-ADHESIVE option available on request

Tech drawings and Dimensions

Product Dimensions

 Model Height Width Depth Weight
BAL060 60 cm (23.6") 60 cm (23.6") 4 cm (1.6") 0.3 kg (0.7 lbs)
BAL060bv 60 cm (23.6") 60 cm (23.6") 4 cm (1.6") 0.3 kg (0.7 lbs)
BAL120 120 cm (47.2") 60 cm (23.6") 4 cm (1.6") 0.5 kg (1.1 lbs)
BAL200.2 200 cm (78.7") 120 cm (47.2") 4 cm (1.6") 1.12 kg (2.5 lbs)
BAL200.4 200 cm (78.7") 120 cm (47.2") 4 cm (1.6") 2.24 kg (4.9 lbs)



Absorption Coefficients



Colors and Finishings

Regular foam:

Fabric covered regular foam

 Melamine foam:

Fabric covered melamine foam


These items are highly customizable, so give us a call at 1-877-223-8858 for a quote!
