$ 8,209.00



The ATP COREPACK complements the BASISPACK by adding more control level elements to the room.

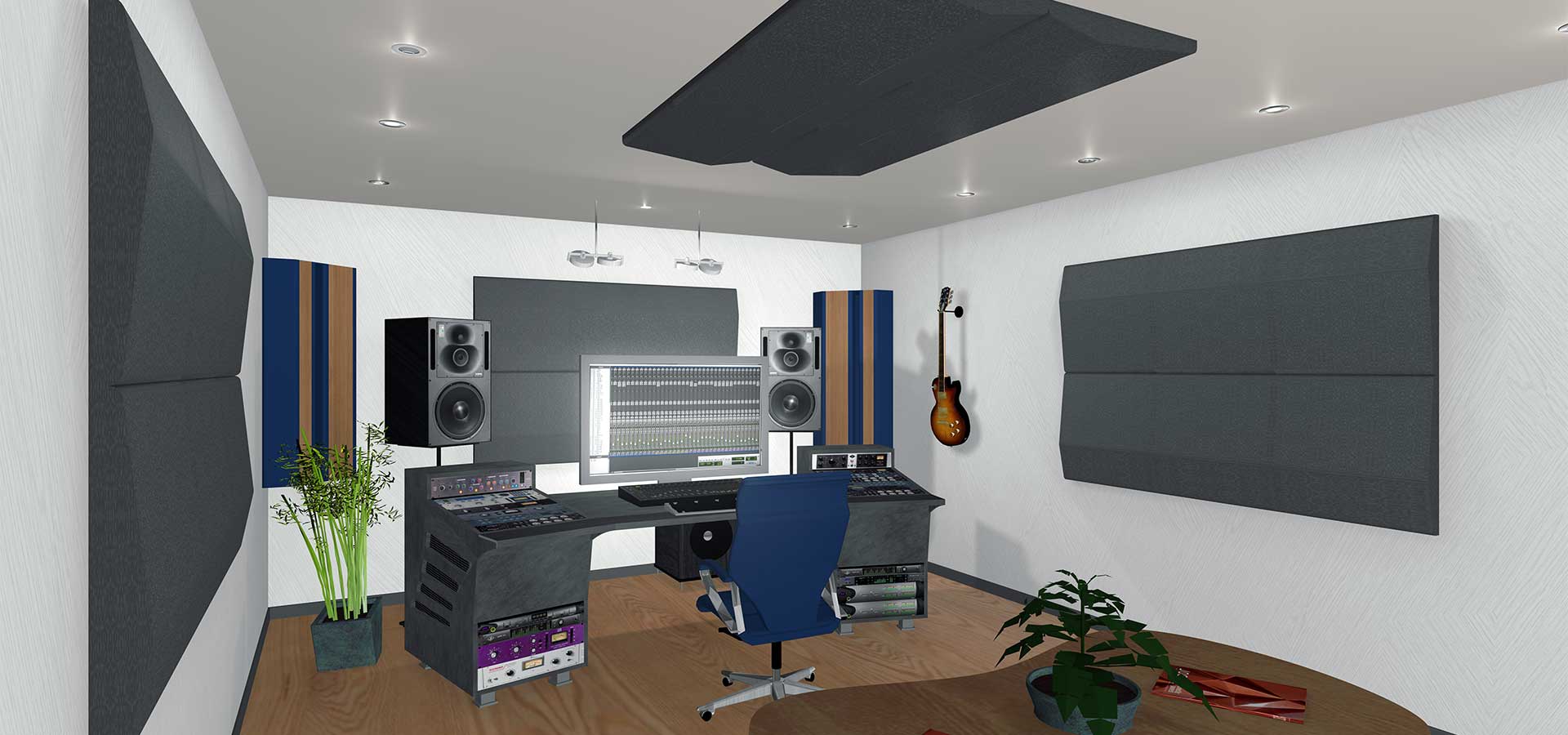

This pack treats the first reflections coming from the speakers that occur on the side walls and ceilings by using 24 ATP SNOWSORB absorption panels that improve sound definition and the sound field image at the mixing position. By using these panels, we are reducing the interference between the direct sound and the specular reflections, controlling the comb-filter effects and the reverberation time in the room.

The back wall is treated with 6 ATP CORALREEF diffusion panels to control specular reflections generated from this surface, thus improving the sense of spaciousness within the room providing clarity to the mid-high frequencies. This pack includes 4 ATP BASSKEEPER ANGLE low frequency absorbent panels that help control the lower end of the spectrum, as well as provide a better acoustic low-frequency balance throughout the room. The ATP BASSKEEPER ANGLE also helps improve the control of the speakers’ boundary interference response and the modal emphasis, producing a good balance of the reverberation time through the spectrum frequencies.

COREPACK is a very practical assembly kit for Control-Rooms and Music Rooms, provided with assembly instructions required to install all acoustic modules.

This pack can be easily adapted by adding modules depending on the size of your room. Contact us for more information.

Features

  • 50% Reverberation time reduction
  • 23% Good RT balance time/frequency
  • Ideal for control rooms
  • Optimized for rooms with areas between 25 m2 and 35 m2 (279 ft2 and 375 ft2)
  • Ideal for minimum height of 2.4 m (95")
  • Easily customizable for other room sizes
  • Multiple color combinations available
  • Very cost effective acoustic balance control
  • Mounting instructions/accessories included*

INCLUDED PRODUCTS

  • 24 x Snowsorb Absorbent Panel
  • 6 x Coralreef Diffuser Panel
  • 4 x Basskeeper Angle Basstrap

PACKAGING

PRODUCT SIZE PANELS BOXES BOX SIZE BOX WEIGHT ABSORBER DIFFUSOR TUNED AB.
ATP SNOWSORB 60x60cm
(23.6" x 23.6")
24 6 65x65x35cm
(25.6" x 25.6" x 13.8")
3kg
(6lbs 10oz)
Yes
ATP CORALREEF 60x60cm
(23.6" x 23.6")
6 2 65x65x35cm
(25.6" x 25.6" x 13.8")
6.3kg
(13lbs 15oz)
Yes
ATP BASSKEEPER ANGLE 120x44X44cm
(47.2" x 17.3" x 17.3")
4 2 65x65x120cm
(25.6" x 25.6" x 47.2")
8.2kg
(18lbs 2oz)
Yes
