ICEpower 250A 250W General purpose high quality audio amplifier

Sale price$ 100.00

Call us at 1-877-223-8858 or Ask a Question below

ICEpower 250A 250W General purpose high quality audio amplifier

Model

ICEpower 250A 250W General purpose high quality audio amplifier

ICEpower's A Series are compact and versatile - just add your own power supply.

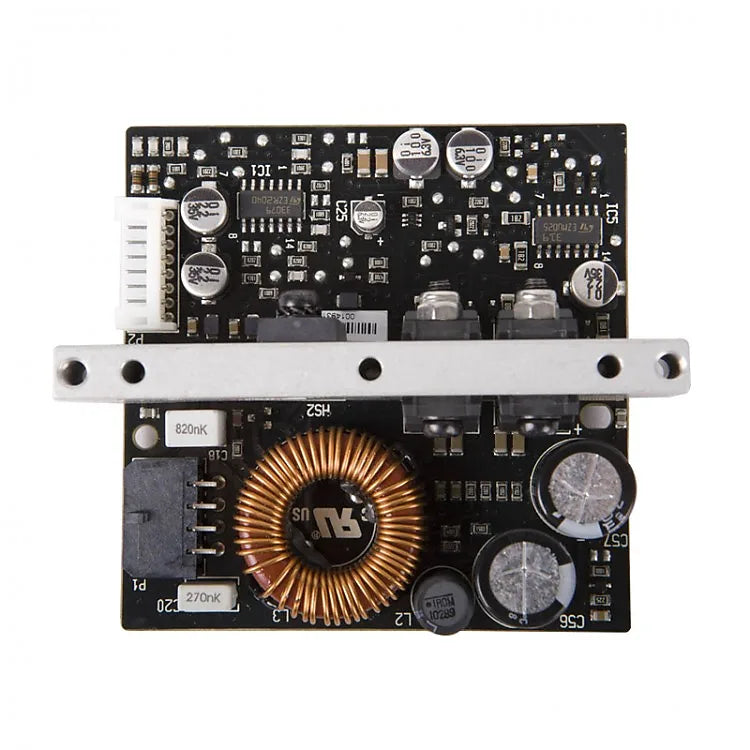

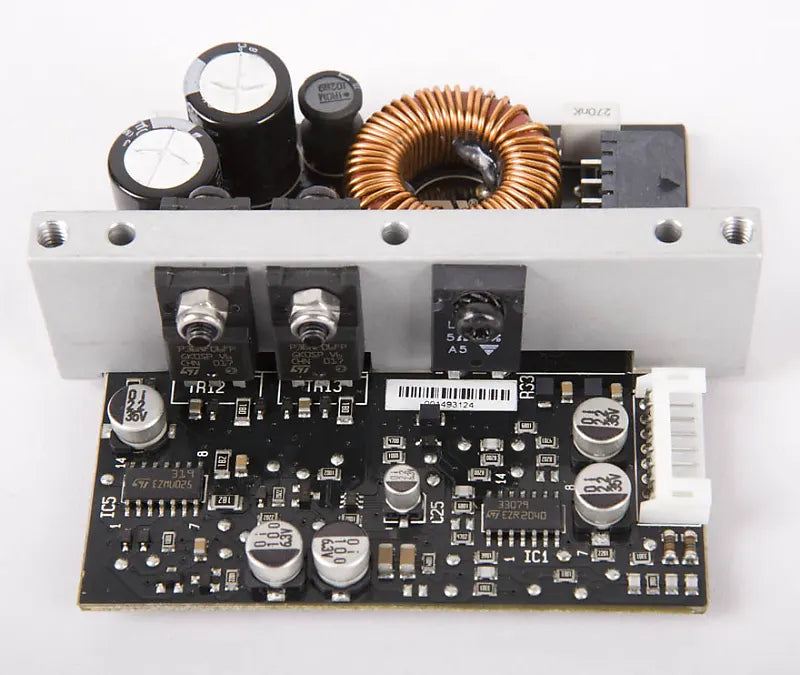

The ICEpower 250A is a 250W at 4Ω general purpose high quality class D audio amplifier. It can be powered from the DC hanger bus of the 250ASP and the 500ASP. This way, 2 channel or 3 channel solutions can be created for either stereo amplifier or 2- or 3-way active speakers.

Applications include subwoofers, hi-fi amplifiers and PA speakers.

Key Specifications
• 250W @ 0.01% THD+N 1kHz, 2.7
• Peak output current > 25A
• 112dBA dynamic range
• THD = 0.0009% @ 100mW, 5kHz
• THD+N < 0.05%, 0.1W – 170W, 4
• Efficiency = 93% @ 100W / 8
• Output impedance < 5m @ 1kHz
• Power Supply Rejection Ratio > 60dB
• Output DC-offset < 25mV

Key Features
• Very rugged design for demanding use
• Soft mute/de-mute
• Stand-by mode for low power consumption
• Under voltage protection
• Monitor output
• Balanced input and output
• Excellent EMI performance
• No heat sink required
