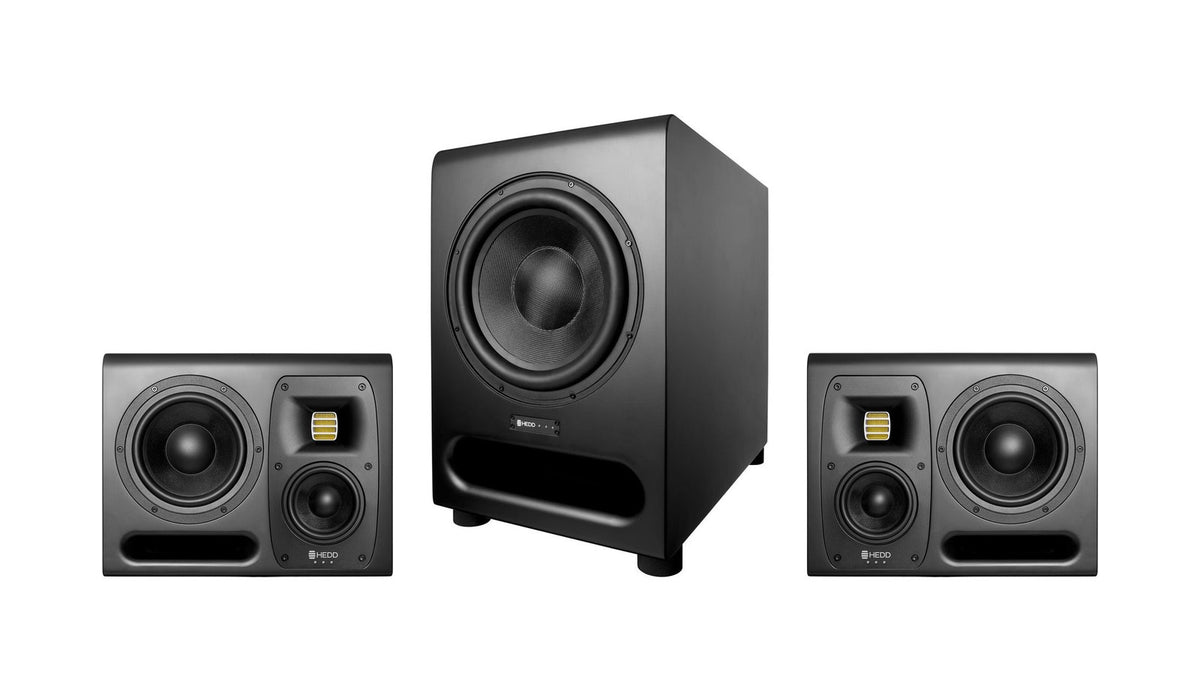

HEDD Type 20 MK2 2.1

This HEDD TYPE 20 MK2 2.1 system combines a stereo monitor pair with a BASS 12 subwoofer for a studio setup with extended low-frequency reproduction. The MK2 monitors combine HEDD Air Motion Transformer tweeters with onboard DSP, phase correction, and room-adaptation controls. Compatible BASS subwoofers add crossover and alignment controls for system integration.

Key features

• Monitor drivers: 7-inch woofer, 4-inch midrange driver, and Air Motion Transformer tweeter
• Monitor controls: HEDD Lineariser, Closed or Ported operation, desk and shelving filters, and bass extension
• Monitor connections: analogue XLR, AES digital input, and AES passthrough
• BASS 12: HEDD Lineariser, adjustable crossover, phase, and Satellite Offset

Specifications

• Per monitor — frequency response: 32 Hz–40 kHz
• Per monitor — amplification: 3 × 300 W ICEpower
• Per monitor — dimensions (H × W × D): 280 × 358 × 338 mm; weight: 15.4 kg
• Per subwoofer — driver: 12-inch woofer; amplification: 700 W ICEpower
• Per subwoofer — frequency response: 20 Hz–200 Hz
• Per subwoofer — dimensions (H × W × D): 595 × 380 × 610 mm; weight: 32.1 kg

What's included

• One left HEDD TYPE 20 MK2 monitor
• One right HEDD TYPE 20 MK2 monitor
• One HEDD BASS 12 subwoofer

Specifications above describe the individual components. Final system response depends on configuration and placement.
