Hear Technologies Mix Back Mixer With Remote

The Mix Back is a flexible and affordable 16 x 12 x 2 x 2 monitor mixer that features two stereo outputs and twelve mono outputs. There are sixteen high quality
Mic/Line inputs with passive split. It also features two HearBus outputs and two ADAT optical outputs. A perfect companion to our Hear Back personal monitor system. A talkback mic preamp permits talking to any mono output, master outputs and the intercom output.

Included is a UV LED gooseneck lamp that makes the knob pointers and silkscreen on the front of Mix Back glow-in-the-dark!

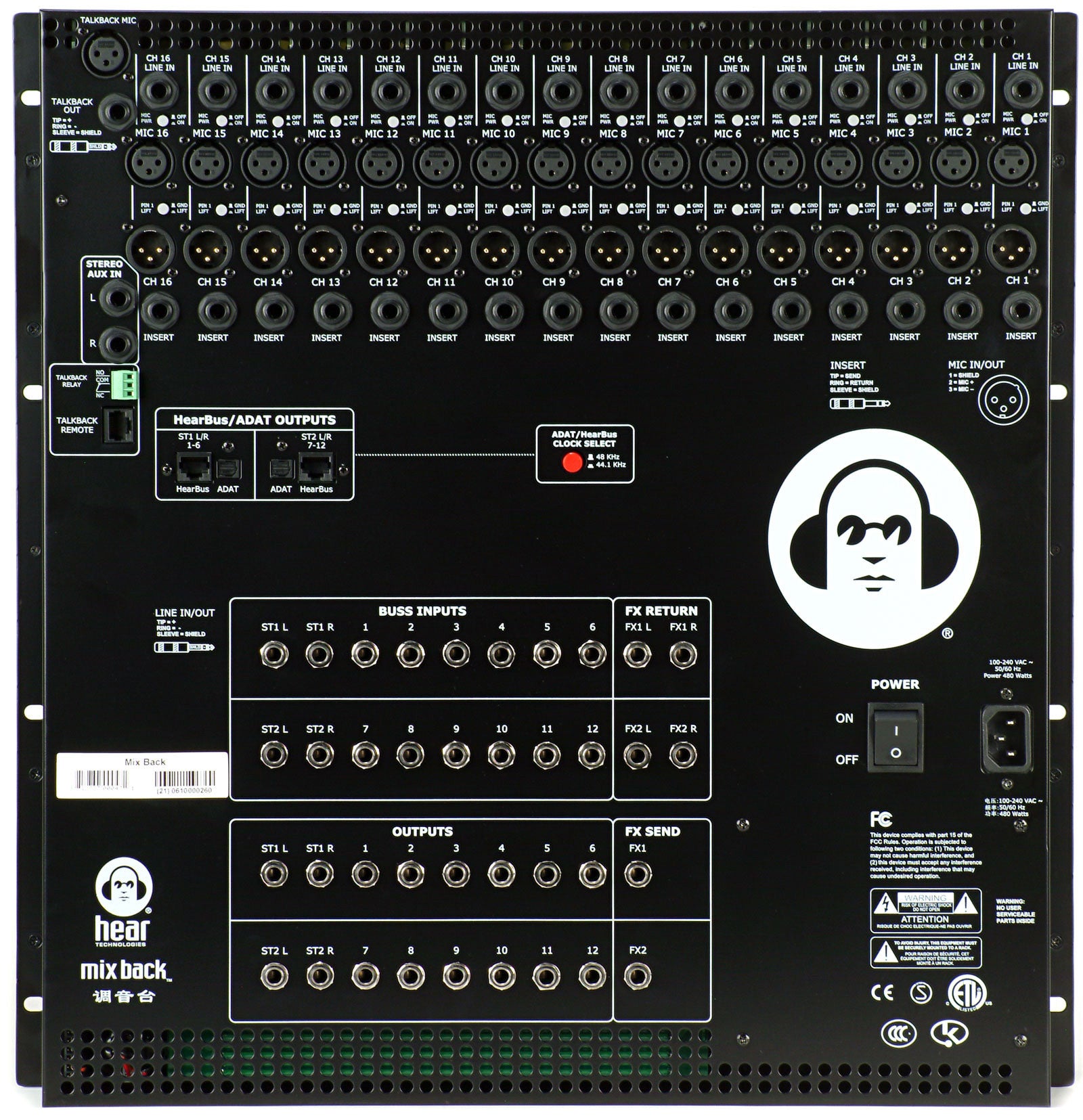

Outputs
• ST1 L/R
• ST2 L/R
• Mono 1-12
• FX1 Send
• FX2 Send
• Talkback output
• Talkback Relay
• ADAT - 16 Channels
• HearBus - 16 Channels

Inputs

• ST1 L/R
• ST2 L/R
• Mono 1-12
• FX1 L/R
• FX2 L/R
• Stereo Aux inputs
• Talkback Mic
• Talkback remote Control

Input Channel Features:

• 16 quality Mic/Line inputs with passive XLR split
• Pin 1 lift and Mic phantom power switches
• Channel inserts
• Signal/Clip LED indicator
• 100 Hz high-pass filter
• Gain control
• 4 band EQ with separate controls for sweep and cut/boost on mid bands
• Two stereo level and pan controls (ST1 and ST2)
• Twelve mono level controls (1-12)
• Switch selectable effects 1-2 sends

Master Features:

• 2 stereo and 12 mono TRS outputs
• Switch selectable meter/headphone monitoring
• 2 stereo TRS balanced effect returns
• Switch assignable FX1/FX2 returns to the 12 mono masters
• Stereo Aux return with level controls to both stereo busses - great for FOH mix or the studio “two mix”
• Buss inputs permit stacking of multiple mixers
• Talk back mic preamp assignable to stereo masters 1 and 2, mono outputs 1-12, and the balanced Intercom/slate output
• Relay contact when the talk back intercom switch is pressed
• 16 button talkback remote connects using standard CAT5e cable
• 16 channels of ADAT and HearBus output

Other Features:

• Universal internationally approved internal power supply
• 11 RU chassis
• All analog inputs and outputs are balanced

Mix Back Talkback Remote

With the Remote Control, the talkback mic preamp is assignable to stereo masters 1 and 2, mono outputs 1 - 12, and the balanced intercom/slate output.
Connects up to 500 feet with a standard CAT5e cable. FOR USE WITH MIX BACK (MB) ONLY.
