Grace Design Model 801R (Preowned)

Name: Grace Design Model 801R (Preowned)
Brand: Grace Design
Price: 4000.00 USD
Availability: InStock

$ 4,000.00

QTY:

Call us at 1-877-223-8858 or Ask a Question below

$ 4,000.00

Model

Grace Design Model 801R (Preowned)

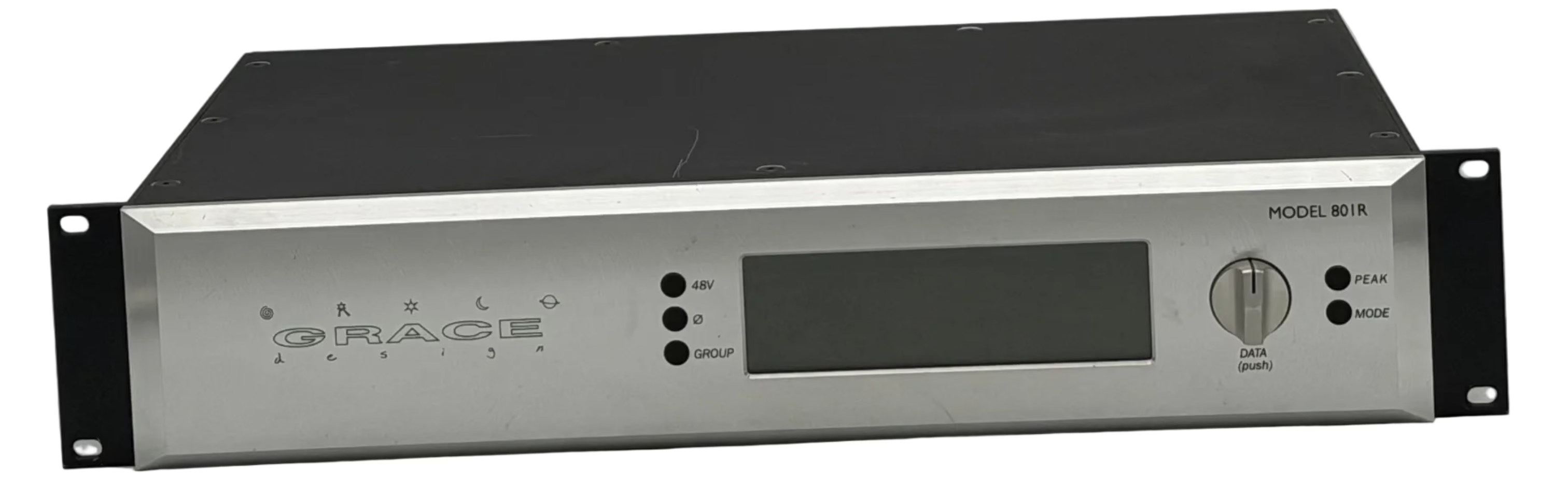

An ultra-transparent 8-channel microphone preamplifier featuring remote control capability, pristine audio fidelity, and digital recall.

Ultra-Clean Signal Path: Fully balanced, transformerless architecture provides unmatched clarity, dynamic range, and detail.

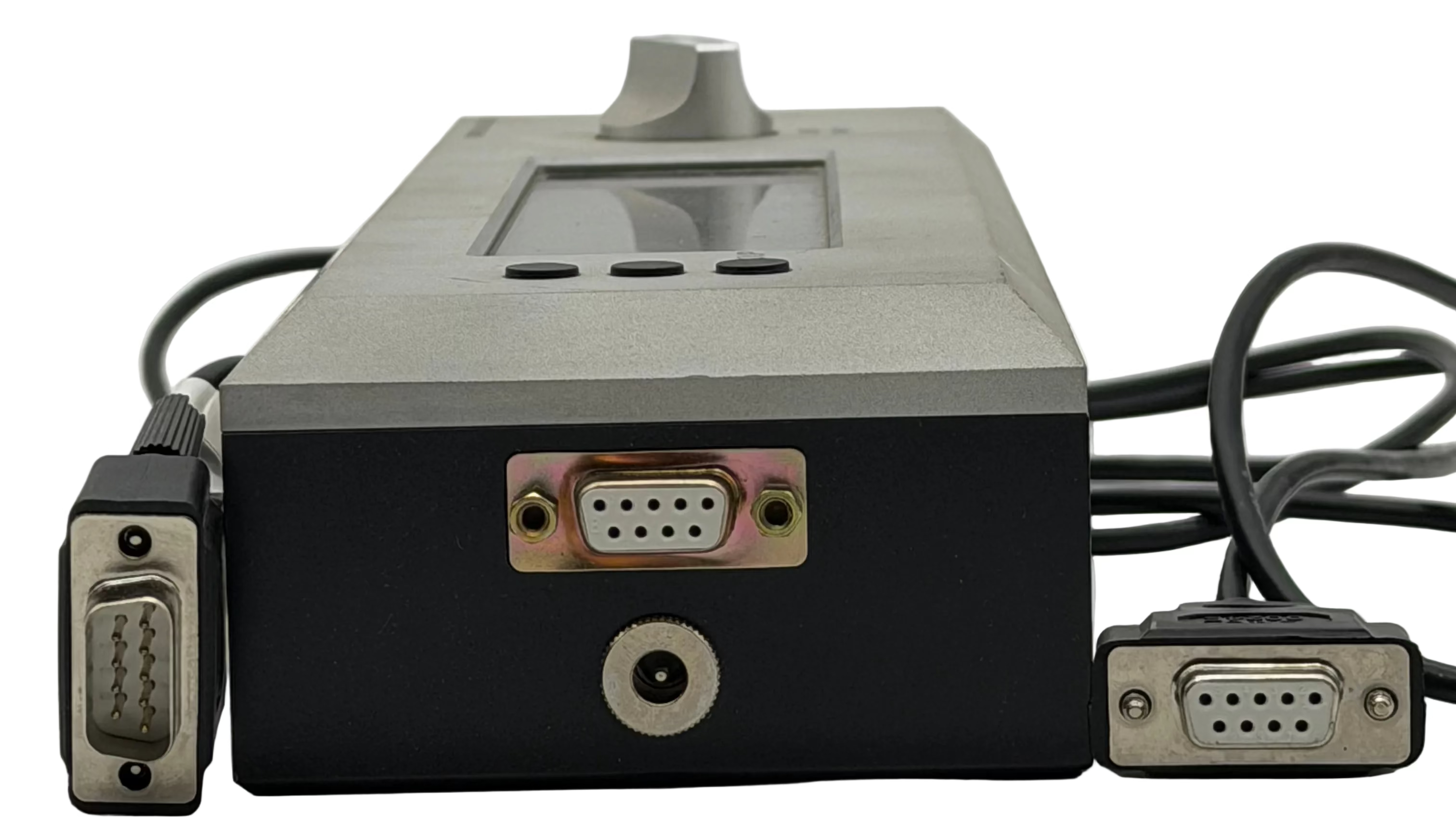

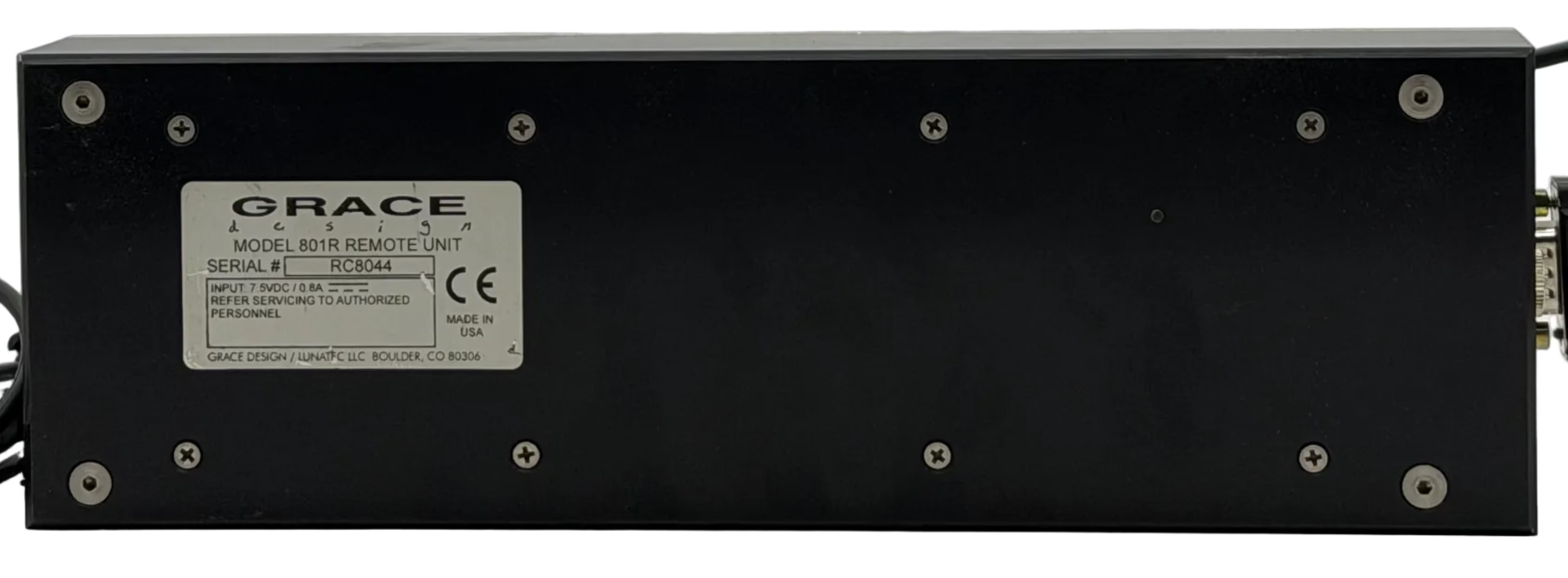

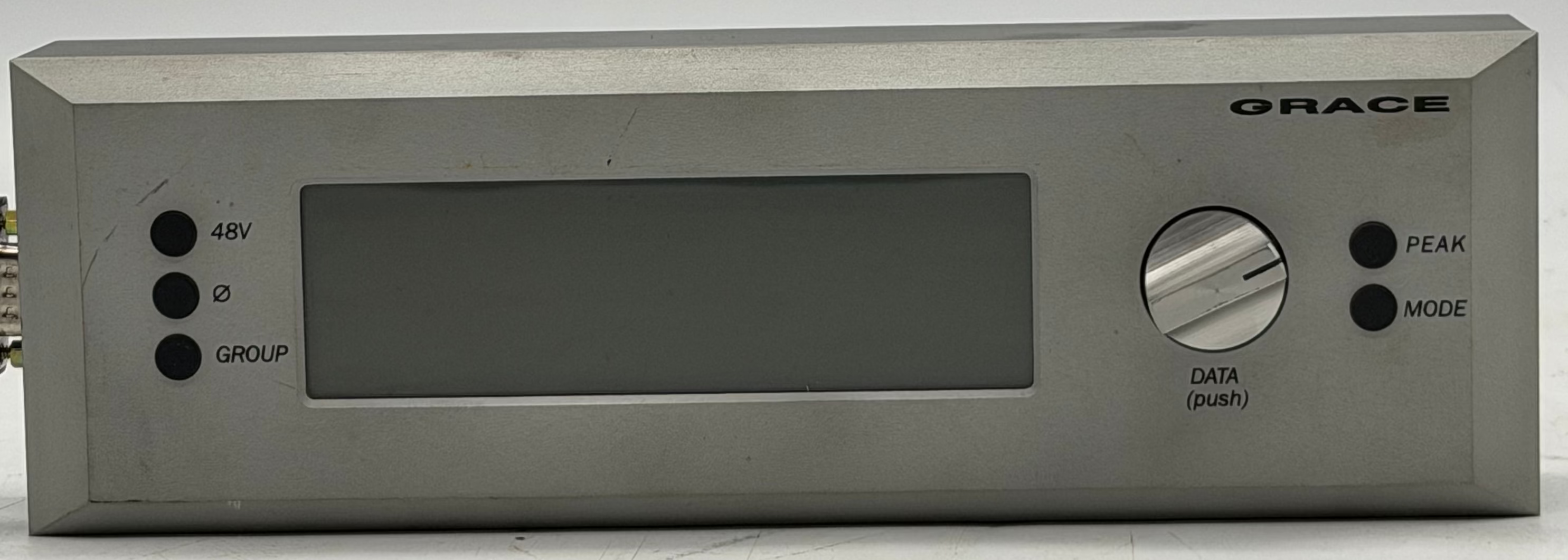

Remote Controllable: Full digital control via the front-panel LCD interface or external Remote Control Unit (RCU).
High-Headroom Performance: Delivers up to +28 dBu output level with ultra-low THD+N and wide frequency response.

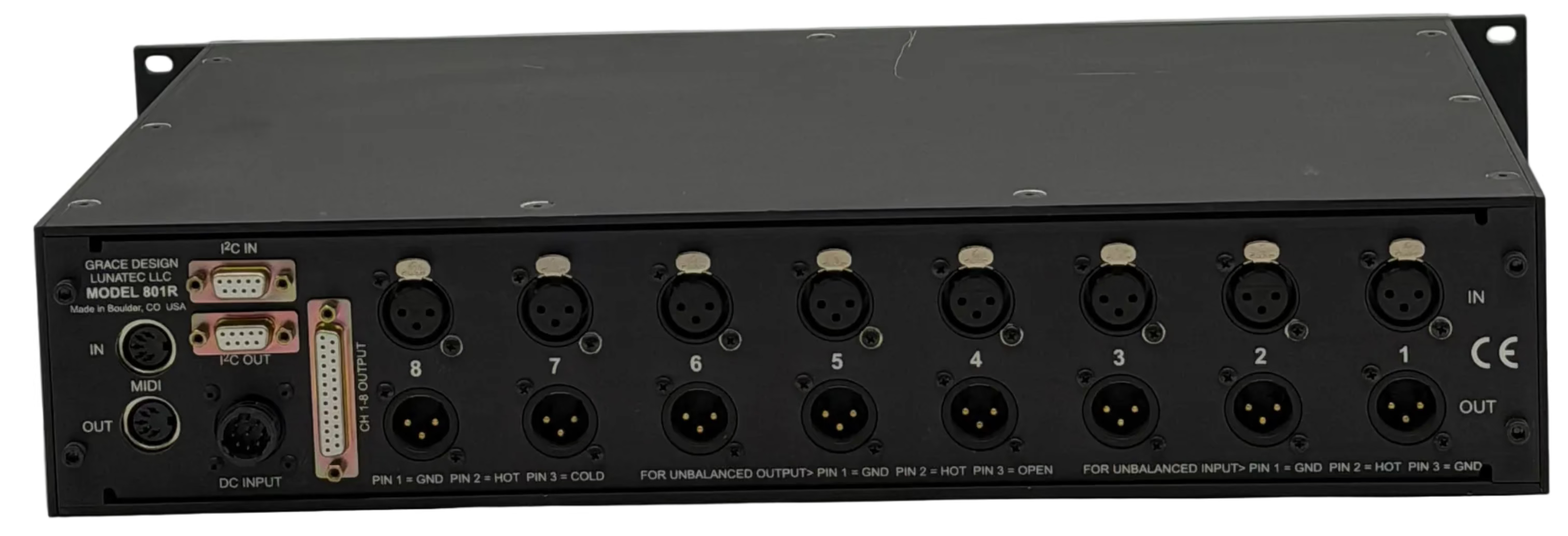

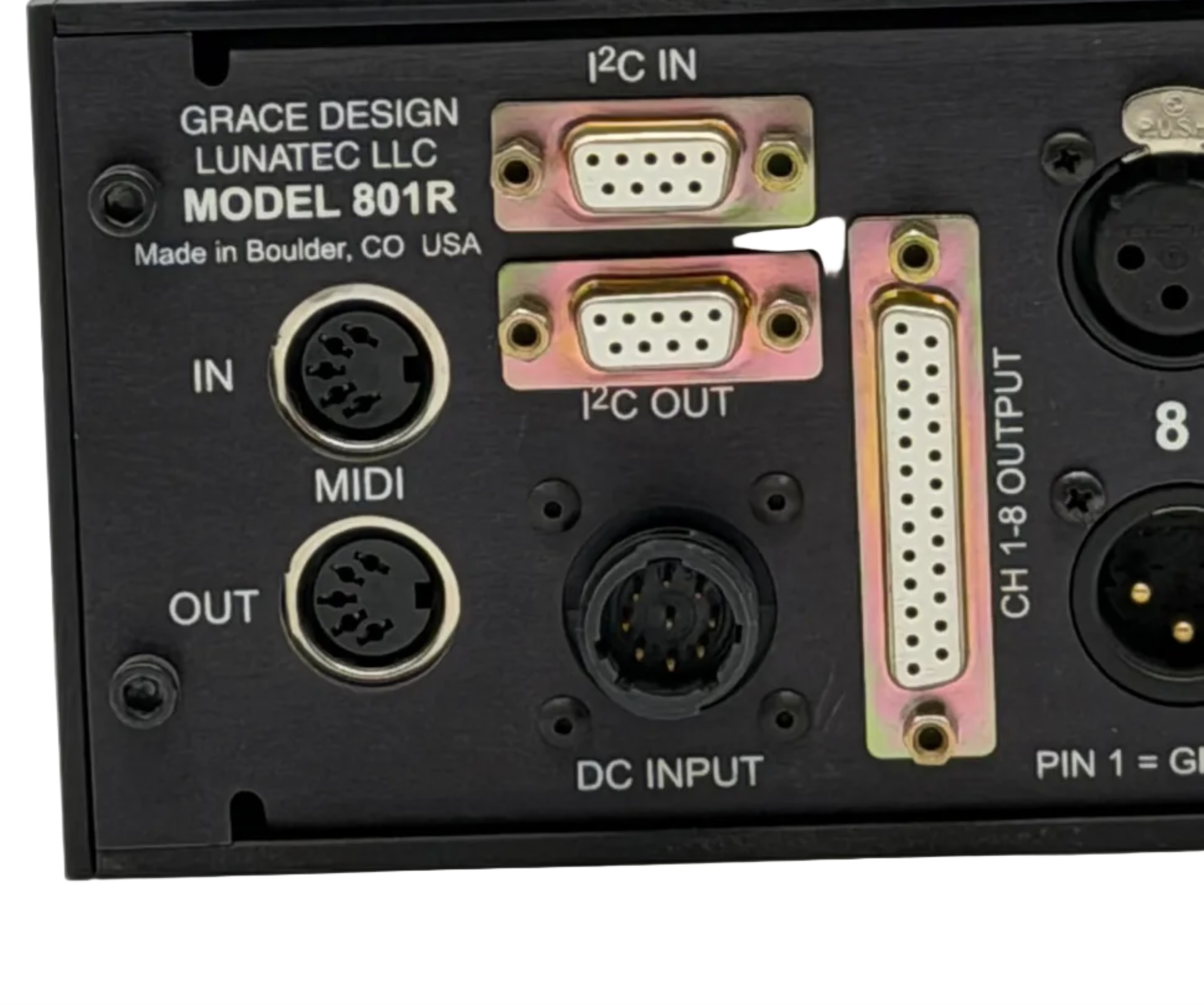

Dual Parallel Outputs: Features 8 XLR outputs alongside a 25-pin D-sub (DB-25) output for simultaneous routing.

Feature	Specification
Channels	8
Preamplifier Type	Solid-State (Transformerless, Fully Balanced)
Frequency Response	15 Hz – 300 kHz (±0.2 dB @ 40.5 dB gain)
Gain Range	18 dB to 64 dB in 2 dB steps
Inputs	8 x Female XLR
Outputs	8 x Male XLR, 1 x DB-25 (Parallel Output)
Max Output Level	+28 dBu
THD+N	< 0.0010% (@ 20 dB gain, +20 dBu out)
Rack Space	2U Standard 19" Rackmount
Dimensions (H x W x D)	3.5" x 19" x 10" (89 mm x 483 mm x 254 mm)
Weight	12 lbs (5.44 kg)
