Grace Design m201 2-channel preamplifier

SKU: Grace Design m201 AM201
$ 2,695.00 -5%
$ 2,560.00

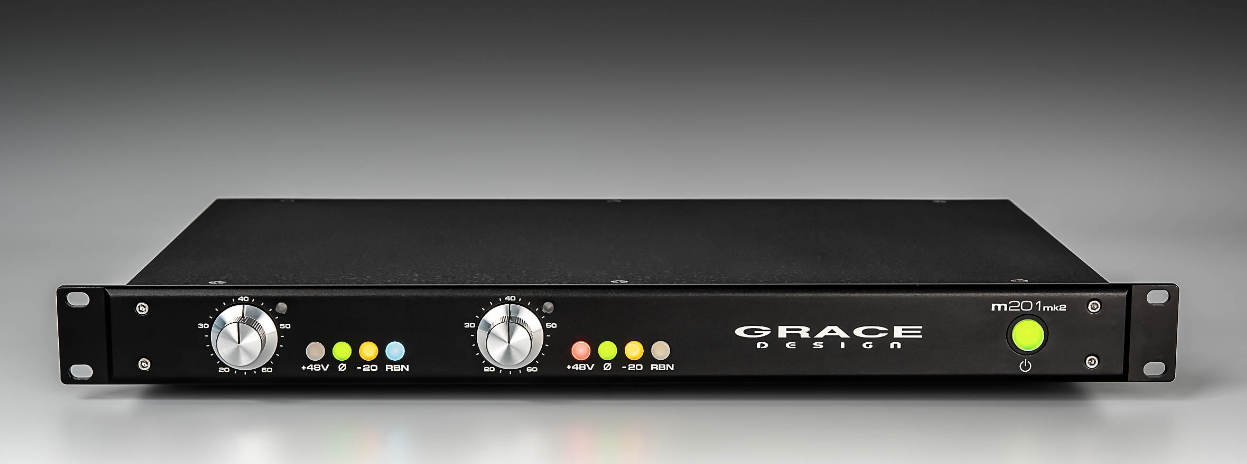

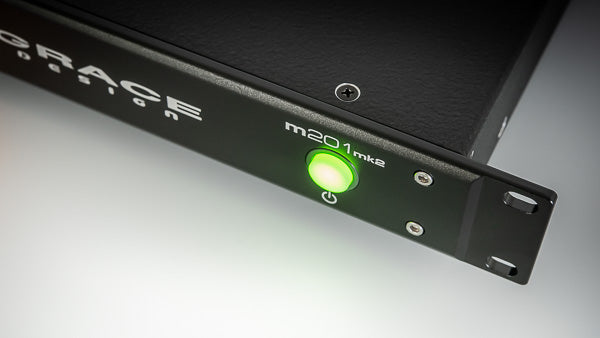

Grace Design m201 2-channel preamplifier

2 channel microphone preamplifier with optional reference ADC

"What I love about the m201 is the sheer size and detail of the sound that comes out. The sound is honest, no hype, no "extra", no missing details, no noise, no loss in fidelity at all. It is truly a no-holds-barred audiophile sound. It is clean and clear and with ridiculous headroom." - Gearslutz

Like the rest of our line, the new m201 delivers unmatched audio performance, with massive headroom, ultra-wide bandwidth and a very open, musical character. The signal path has been hot-rodded to be fully balanced from start to finish, resulting in a wider dynamic range, while new high-current output drivers enable even longer cable runs without signal loss. This means the m201 can translate a sonic picture of astonishing clarity and detail, which serves to capture the essential character of the music being recorded.

We offer the m201 with our state of the art 24-bit/192kHz A/D converter option, from the factory or as a retrofit to existing units. With the A/D converter module installed, the microphone preamplifier section or the M+S matrix can be routed to the A/D converter input directly for standard recording applications. Or, with the additional analog line inputs on the A/D converter module, the mic preamplifier and A/D converter sections can be used separately, which allows for external processing to be inserted between the mic amp and the A/D converter. External synchronization to word clock or Digidesign LoopSync is available, and features our proprietary dual stage PPL with s-Lock for extremely low jitter and rock solid digital stability without the use of sample rate conversion.

Our exclusive ribbon mic mode is standard, which shifts the gain range up 10dB while deactivating 48V phantom power, bypassing the decoupling capacitors and optimizing the input impedance. Each channel has an ‘input mode’ rotary switch which selects between a standard 48V phantom input, ribbon mic mode or the front panel DI input.

Included is our newly designed M+S (mid side) decoder circuitry with a built-in width control. The front panel width control is wired with a precision 12 position rotary switch which provides a ratio range from 100% mid (mono) to 30% mid / 70% side. The ultra-precision summing and difference amplifiers feed a set of dedicated outputs, allowing simultaneous recording of discrete mid+side signals as well as the stereo matrix.

The new front panel mounted HI-Z inputs are designed to accommodate a wide variety of high impedance input sources, making the m201 an excellent choice as a DI box which will flawlessly preserve the sound of any plugged-in instrument. Imagine the same resolution and detail as our microphone preamplifiers available for DI recording situations.
Whatever the application, the remarkable sonic performance and functionality of the new m201 will help you make the finest recordings of your career.

 Features:



  • fully balanced, transformerless design

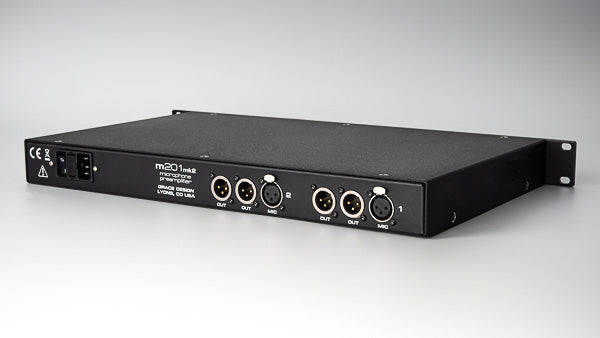

  • dual parallel XLR outputs for each channel
  • ribbon mic mode
  • front panel DI / instrument inputs
  • built in M+S decoder with dedicated outputs and front panel width control
  • precision 24 position gold contact rotary switch gain controls
  • new, higher current outputs drive even longer cable runs
  • no electrolytic capacitors in the signal path
  • sealed gold contact relays for all signal switching
  • 5large two color, bi-phase LED peak indicator
  • regulated linear power supply with custom wound toroidal transformer
  • highest quality components used throughout
  • 5five year transferable warranty on parts and labor
  • 20 Year EON transferable warranty on parts and labor
  • Built in the USA
  •

    Specifications

    • Mic Pre
      • Frequency Response
        • @ 40dB gain 0.2dB (50? source): 18Hz-65kHz
        • @ 40dB gain 3dB (50? source): 4.5Hz-350kHz
      • THD+N
        • @ 20dB gain +25dBu out, 1kHz: <.0008%
        • @ 40dB gain +25dBu out, 1kHz: <.0009%
        • @ 60dB gain +25dBu out, 1kHz: <.0070%
      • Intermodulation Distortion
        • @ 40dB gain +25dBu out
        • SMPTE/DIN 1:1 (50Hz, 7kHz): <.0020%
        • SMPTE/DIN 4:1 (50Hz, 7kHz): <.0030%
      • Noise - Referred to Input
        • @ 60dB gain 50Ω source: -130dB
        • @ 60dB gain 150Ω source: -127dB
        • @ 60dB gain 600Ω source: -123dB
      • Phase Deviation
        • 100Hz-20kHz @40dB gain    <3
      • Crosstalk
        • Any Channel @ 40dB gain 1kHz    -125dB
        • Any Channel @ 40dB gain 10kHz    -115dB
      • CMRR
        • @ 60dB gain, 3.5Vcm, 1kHz: >70dB
        • @ 60dB gain, 3.5Vcm, 10kHz: >70dB
      • Maximum Output Level
        • 1kHz, 100KΩ load: +28dBu
      • Impedance
        • Input: 8100Ω
        • Input, ribbon mode: 20kΩ
        • Output: 190Ω
      • Peak Led Meter
        • Green threshold    -14dBu
        • Red threshold    +16dBu
      • Weight and Dimensions
        • 2U, 19 rack mount x 10 deep
        • 16.5lbs (7.5kg)
    • A/D module
      • Dynamic range
        • 20Hz-20kHz: >115dB
        • A weighting: >117dB
      • THD+N
        • 1kHz, -1dBFS, 20Hz-22kHz    < 0.00026% (-112dB)
      • Frequency response                         +/-0.2dB    -3dB
            • 44.1kHz Fs        5Hz-21kHz    22kHz
            • 48kHz Fs           5Hz-23kHz    24kHz
            • 88.2kHz Fs        5Hz-41kHz    44kHz
            • 96kHz Fs           5Hz-45kHz    48kHz
            • 176.4kHz Fs      5Hz-54kHz    72.5kHz
            • 192kHz Fs         5Hz-59kHz    79kHz
      • Full scale input level: +16dB or +24dB (+/-2dB trim)
      • CMRR
        • 60Hz    >65dB
        • 1kHz    >80dB
        • 10kHz    >60dB
      • IMD SMPTE 4:1 60Hz, 7kHz, -3dBFS    <100dB (0.0008%)
      • Interchannel crosstalk: <-120dB
      • Group Delay
        • 44.1-48kHz
        • 13/Fs
      • Sample rates, internal crystal (kHz):    44.1, 48, 88.2, 96, 176.4, 192
      • External Clock Lock Range
      • Wide lock mode: 40.1kHz-207kHz (+/-8% at each sample rate)
      • s-Lock mode: +/-250ppm (+350, -400ppm typical)
      • Intrinsic Jitter: 200Hz-20kHz BW
      • Wide lock mode: < 60ps RMS
      • s-Lock mode: < 40ps RMS
      • Jitter Rejection Corner Frequency
        • Wide lock mode, -3dB, 12dB/octave: 800Hz
        • s-Lock mode, -3dB, 12dB/octave: 10Hz
      • A/D sensitivity
        • Range A    +22dBu = 0dBFS (18dB headroom*)
        • Range B    +18dBu = 0dBFS (14dB headroom*)
        • *can be calibrated for any setting between +18dBu = 0dBFS and +24dBu = 0dBFS
