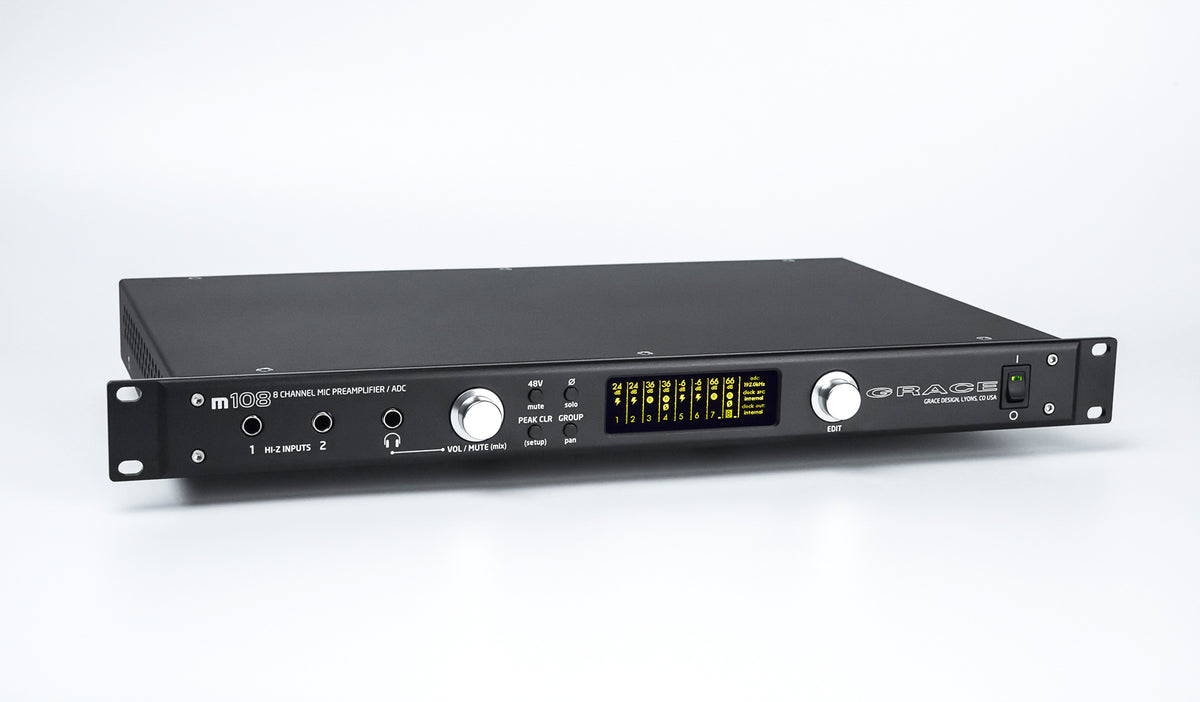

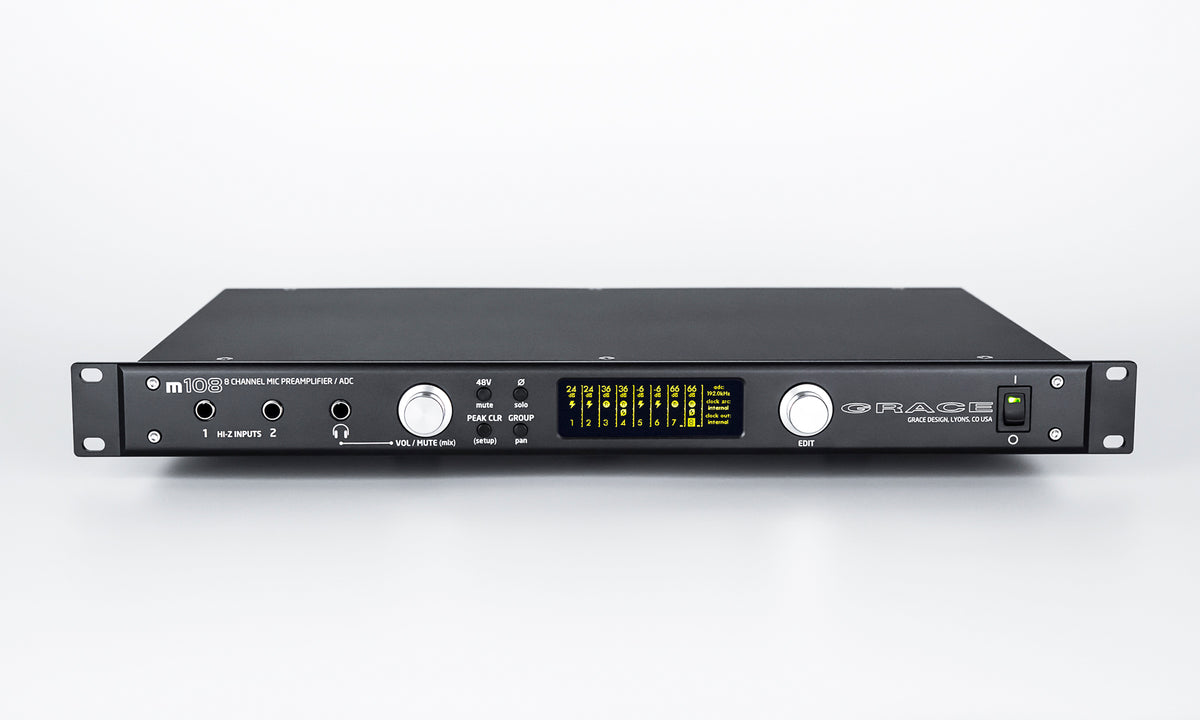

Grace Design m108 8-channel remote preamplifier

Grace Design m108 8-Channel Remote Preamplifier - Preamplifiers - Professional Audio Design, Inc

Recording Equipment - Grace Design - Grace Design m108 8-channel remote preamplifier - Professional Audio Design, Inc

Grace Design m108 8-channel remote preamplifier

Name: Grace Design m108 8-channel remote preamplifier
Brand: Grace Design
SKU: m108
Price: 3605.0 USD
Availability: InStock

$ 3,605.00

$ 3,795.00

Save $ 190.00

SKU: m108

Options:

m108

Variant

QTY:

Apply for Financing PADvantage

Call us at 1-877-223-8858 or Ask a Question below

Grace Design Grace Design m108 8-channel remote preamplifier

$ 3,605.00

$ 3,795.00

Grace Design m108 8-channel remote preamplifier

Model

Grace Design m108 8-channel remote preamplifier

THE FINEST SOUNDING, MOST CAPABLE MIC PREAMP WE HAVE EVER CREATED

From 25 years experience of creating acclaimed professional audio products, comes the latest evolution of our mic preamplifier design: the m108. With eight channels of our transparent, musical mic preamplification, state of the art A/D conversion, multiple digital output formats, and flexible local or remote controlled operation, the m108 is a vital addition to any modern audio production environment.

UNRIVALED PERFORMANCE

Based on the acclaimed success of our m802 remote controlled mic preamplifier, the m108 distills the best of these achievements into a sleek, elegant 1U chassis design. Our transformerless, transimpedance mic preamp design is unmatched in its ability to effortlessly resolve complex sonic waveforms, resulting in recordings of amazing clarity and depth. Integrated A/D conversion delivers digital signals to the workstation that are pure and beautiful. Latest generation s-Lock PLL ensures pristine, jitter free sample clock when clocking from external word clock or Dante clock. And an asynchronous mode USB interface provides the best possible jitter performance when connected to a computer.

SIMPLE OPERATION

A push-button rotary encoder is used for navigating and operation, with a user interface that is simple and intuitive. Dedicated push-buttons are assigned to core functions: 48V phantom power, phase reverse, channel grouping and meter peak clear. A crisp OLED screen displays complete system information, including channel gain settings, metering, peak status, and the system setup menu.

POWERFUL CONFIGURATION

Out of the box, the m108 is ready to go as a stand alone mic preamp / ADC. With integrated serial or MIDI control, the m108 can be configured in large channel-count remote systems, with control from our existing m802 hardware remote control unit, from Protools™, the forthcoming m108 control app, or even simply over Ethernet with any modern web browser. And an optional DANTE™ interface is provided for network audio configurations. The m108 control protocol is backward compatible with the m802 so you can add m108's to an existing m802 system.

GRACE DESIGN REMOTE CONTROL SOFTWARE

The m108 Control Software application allows for control of up to 12 m108 preamplifiers using the Ethernet control port on the m108. Each preamplifier in the system will have a dedicated control panel for operating the microphone preamplifiers, ADC, and clocking parameters. The control application allows for the creation of channel groups as well as saving and recalling presets. The application runs under Windows (7,8.1,10) and Mac OS (10.11). For control of the m108 via Android or iOS use the m108 web interface.

M108 WEB BROWSER CONTROL

The m108 has a built-in web browser controller allowing remote control from most web enabled Mac, Windows, iOS and Android devices. This control has been optimized for Chrome, but will operate on most modern web browsers (excluding Internet Explorer). This makes control of any m108 on an ip LAN as simple as entering the m108's IP address into the browser's navigation window, and the web browser control from that preamp will automatically load and connect. See the m108 owner's manual for complete details.

Features

8 channels of balanced analog preamp outputs
8 channels of transparent, musical mic preamplifier
Wide gain range: -6 to 69dB
Ribbon mic mode
8 channels of 192kHz ADC outputs via AES, ADAT (4ch SMUX) and USB Class 2
External Word clock in and out
Reference DAC and headphone amplifier for low-latency monitoring of channel pairs or USB playback from a computer

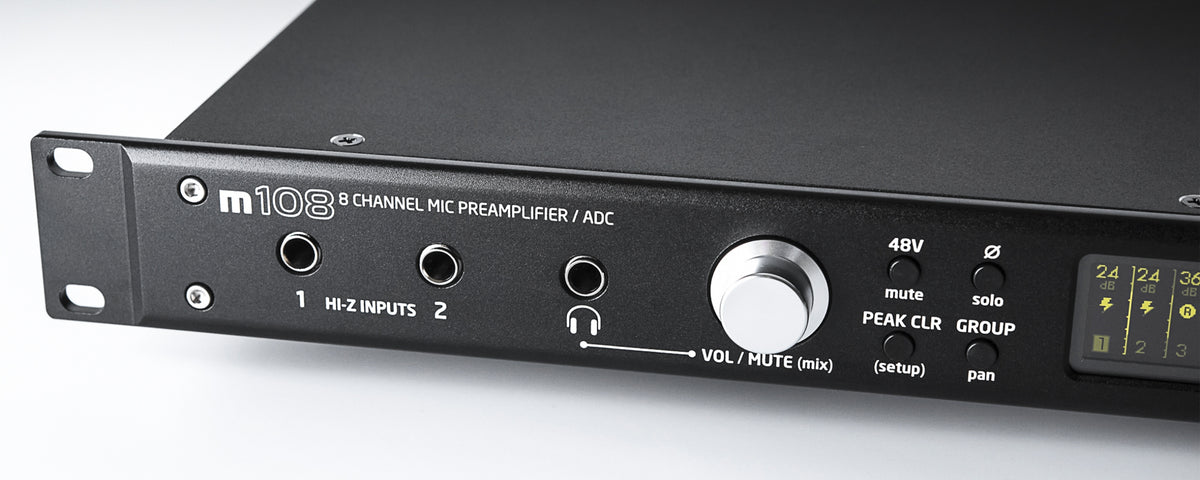

Channel 1 & 2 HI-Z inputs on front panel
High contrast, wide viewing angle OLED display for all system parameters and setup menu
Combination RS 485/422 serial / MIDI ports for control from existing m802 RCU or Protools™
Control App (Win and Mac, coming soon) can control up to 96 channels over Ethernet
Simple web browser control built in, works with all modern browsers including iOS and Android
RJ45 Ethernet port for network control

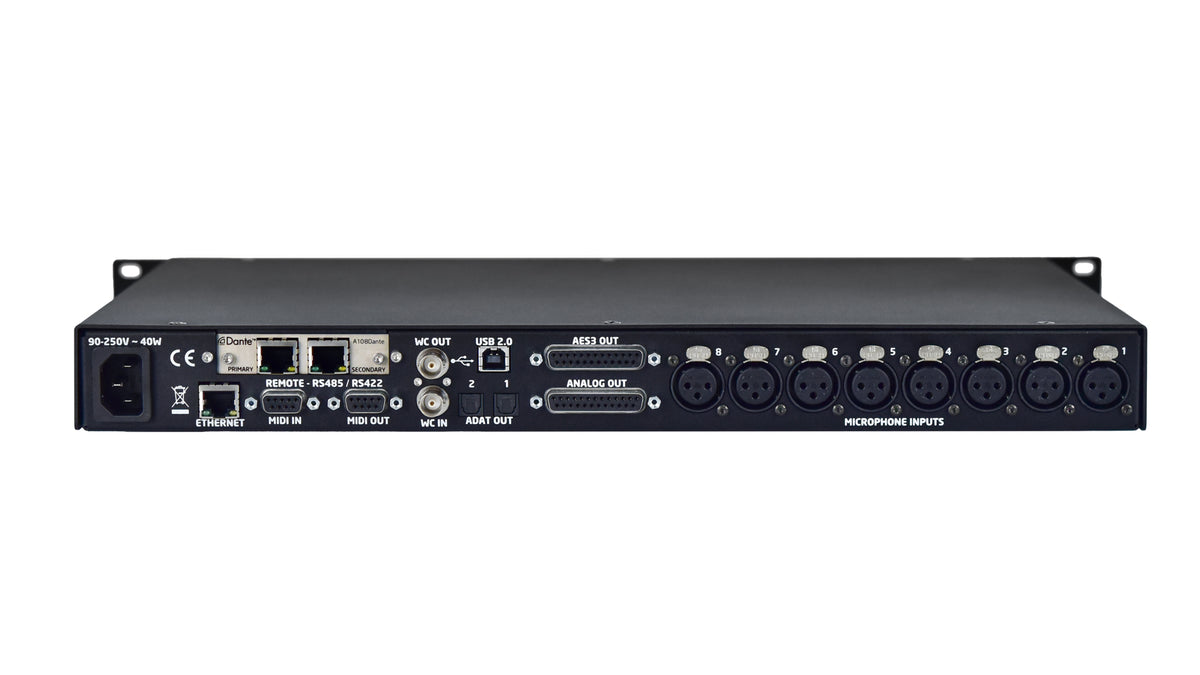

Expansion slot for optional Audinate / DANTE™ network audio card
Cooling fan for reliable operation in the harshest environments
Built in 100-240VAC universal AC power supply
5 year transferable warranty
Made in the USA

Note:

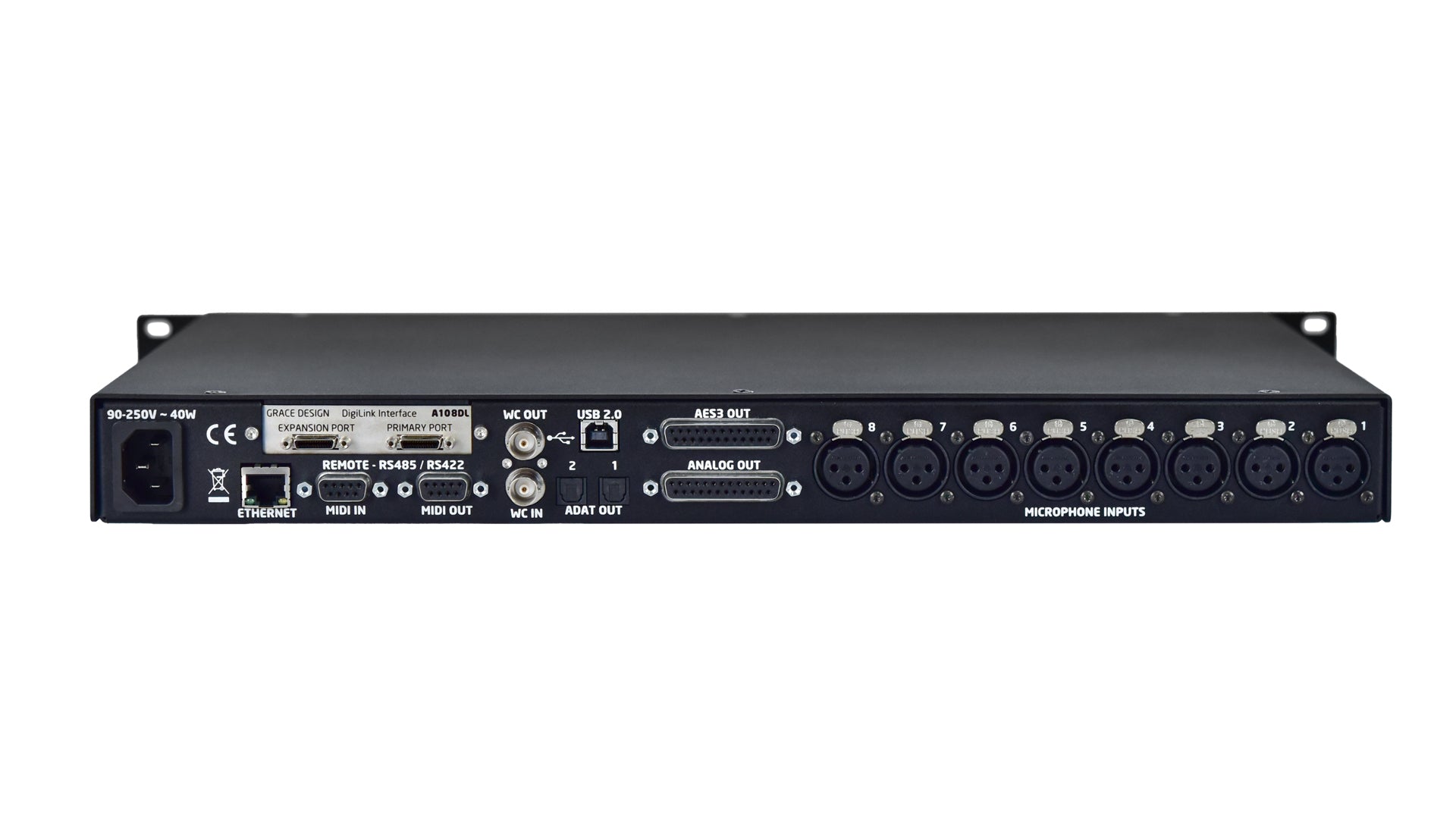

Please order the (factory) versions of the m108 Dante, CR Output and DigiLink cards when you’d like us to install these cards on your m108(s). There is no additional charge for us to do this installation.
Please order the (upgrade) versions of the m108 Dante, CR Output and DigiLink cards when these are for existing m108’s in the field. If you would prefer to send your m108(s) back to our shop for installation, please contact PAD support for more information.
