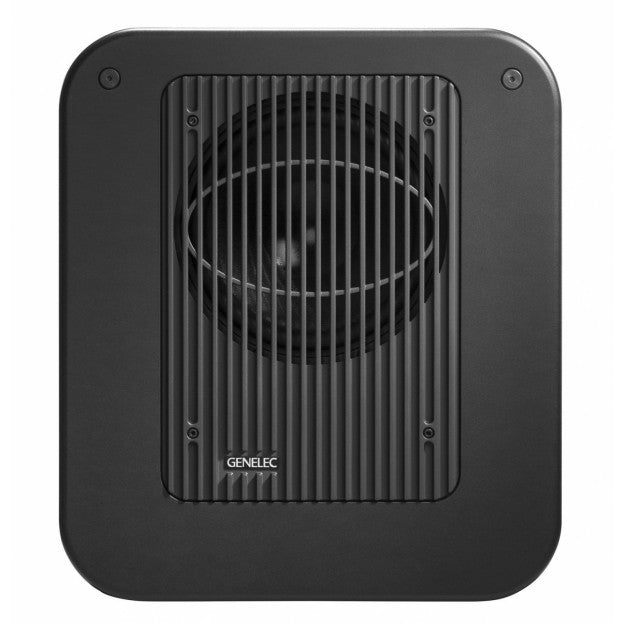

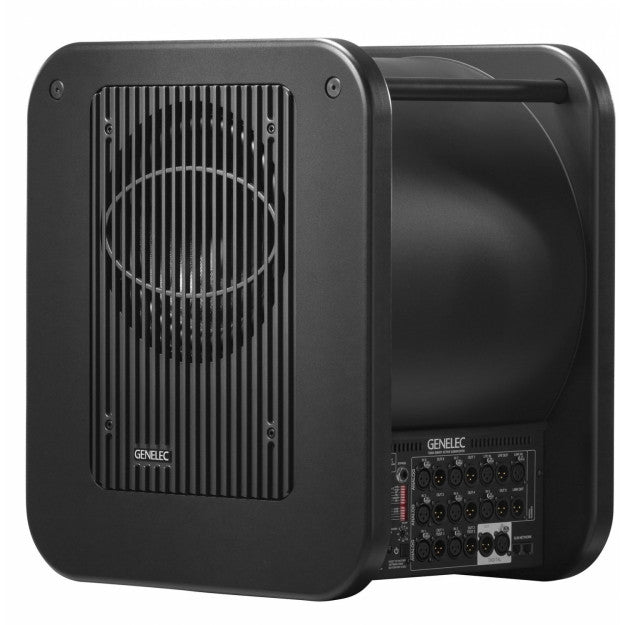

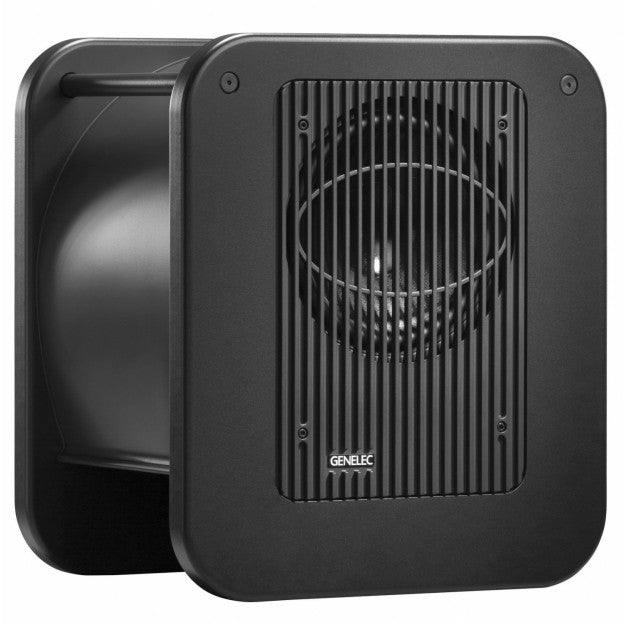

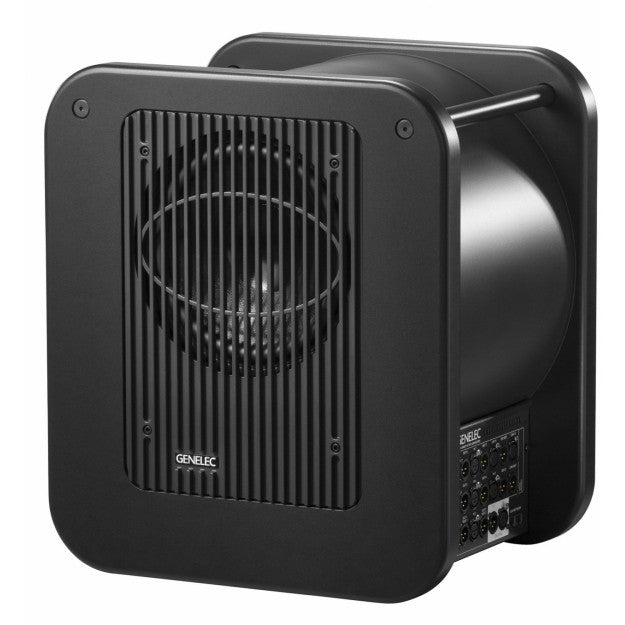

The Genelec 7360A SAM subwoofer is a compact yet powerful 300-watt subwoofer with a 10" driver and software management control, built to complement Genelec 4" 8320A and 5" 8330A SAM active monitors in multichannel and stereo applications - Producer Grey finish (P), magnetically shielded (M).
The Genelec 7360A is a 10" smart subwoofer designed to accommodate the shrinking real estate common to recording facilities these days. Its built-in Smart technology allows its more powerful 300W optimized amplifier to fill a mid-size room with bass, while effectively negating the highly kinetic reflections smaller spaces are prone to, giving you clear insight into the lower register of bass instruments and your overall mix. The 7360A features Genelec's Laminar Spiral Enclosure (LSE), which combines form and function to provide a noise-free reflex port that's integrated into the enclosure, resulting in deep bass extension and clean, articulated low-frequency reproduction. It's also equipped with Genelec's proprietary bass management system and support for 7.1 multi-channel set-ups over analog XLR I/O, plus stereo AES/EBU XLR I/O - no need for external A/D converters. To save power, Intelligent Signal Sensing (ISS) puts the 7360A to sleep when no signal is present after a period of time. Additionally, Genelec Loudspeaker Manager (GLM) software allows for the fine adjustment of up to 30 individual Smart monitors and Smart subwoofers, while AutoCal compensates for room modes to perfectly calibrate your set-up to your listening environment.
Genelec 7360A SAM Subwoofer - Just the Facts:
- Smart Active Monitoring (SAM)
- Genelec Loudspeaker Manager (GLM) software with AutoCal room compensation
- Laminar Spiral Enclosure (LSE) technology
- Bass management system
- Power-saving Intelligent Signal Sensing, auto shutdown
- 10" bass driver with 100dB SPL output
- 300-watt optimized Class-D amplifier
- Protection circuitry
- Active crossovers
- Producer gray finish (P)
- Magnetically shielded (M)
Genelec 7360A - Behind the Grille
The compact Genelec 7360A smart active subwoofer extends the bass reproduction of Genelec 8330A and 8320A active monitors in stereo or multichannel applications. It can be used a general purpose Smart Subwoofer solution with any analog or digital audio monitor. The 7360A contains one 10” low-frequency driver housed in a Genelec's proprietary Laminar Spiral Enclosure (LSE) bass reflex cabinet and a D Class power amplifier that outputs 300 watts with very low THD (Total Harmonic Distortion) and IM (Intermodulation) distortion. The amplifier features driver overload, amplifier thermal overload, and driver short-circuit protection.
Networked Smart Active Monitor (SAM) Systems
Genelec's advanced SAM Systems can automatically adapt to acoustic environments and correct for levels, delays and room anomalies. SAM Systems can be controlled via Genelec proprietary Loudspeaker Manager (GLM) network and software, enabling you to build a highly flexible and reliable monitoring system. If the monitors have to move between rooms, you can rely on SAM technology to give you absolute consistency, a neutral soundstage, and low distortion. All electronics, drivers, and enclosures are designed, assembled, tested, and calibrated in Genelec's factory in Finland. Genelec quality and reliability ensure a secure long-term investment, with environmentally conscious, low energy consumption and outstanding audio quality.
AutoCal room calibration
Genelec AutoCal is a system integrator's dream and gets you out of stasis and into production faster. It facilitates setup by measuring acoustic response in the listening area and applying the appropriate compensation in the low and low-mid frequencies to minimize the muddying effect of room modes and other unwanted room resonances, while simultaneously accounting for the differences between various listening positions.
Laminar Spiral Enclosure (LSE)
An essential property of a subwoofer operating at high sound pressure levels is its capacity to move high volumes of air without distortion, which is a function of air turbulence inside the bass reflex port. This effect presents challenges to woofer and reflex port designs. Genelec's patented Laminar Spiral Enclosure (LSE) provided the solution.
By way of a little background, large air currents, such as those found in bass reflex ports, have a great deal of kinetic energy, which causes the flow to be irregular and turbulent as cross-streams perpendicular to the direction of air flow is formed. A laminar air flow is a streamline flow in which air travels smoothly in parallel layers or paths, with no interference or disruption across layers.
The Laminar Spiral Enclosure (LSE) bass reflex cabinet provides excellent laminar flow characteristics with minimal turbulence noise and enables an optimal packing of a very long reflex tube into a small space.

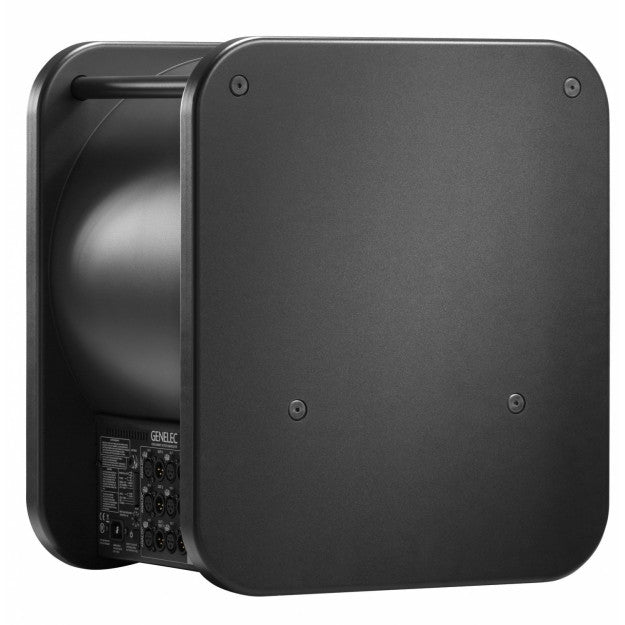

The 7360A's enclosure is made from a spiral-shaped strip of steel. Its purpose is to provide mechanical stability for a large amount of pressure generated inside the subwoofer. The spiral also forms the bass reflex port, enabling linear airflow even at the highest SPL output. The fact that one is part of the other means that air flow in and out of the enclosure's interior through the port is totally unrestricted. This flow-optimized construction provides extended low-frequency capacity and low distortion resulting in precise bass articulation, with measured second and third harmonic distortion levels typically better than 30dB below the fundamental. This results in an extraordinarily accurate and responsive low-frequency system.
Bass management system
Bass management, from a corporate perspective, is the man's way of keeping the low frequencies down. Seriously, it's quite simply a means of directing the bass content of main and low-frequency effect (LFE) channels to the speakers that are best capable of handling them. A Bass Management system uses either analog electronic circuitry or software-based filtering to take low-frequency information from the main channels and route it to a subwoofer feed. Bass management's basic and main goal is to ensure that the entire audio bandwidth of all channels can be accurately monitored.
The bass management unit in the 7360A subwoofer splits the input into low- and high-frequency components at 85Hz. Frequencies below 85Hz are reproduced by the subwoofer. Frequencies above 85Hz are directed via the subwoofer's output connectors to the main monitors.
Bass management benefits are:
- The subwoofer extends the system frequency response down the lower limit of the audible range
- Monitor can produce a higher maximum sound level when not reproducing low frequencies
- Optimized low-frequency reproduction by selecting adequate subwoofer location; monitors can also be placed more freely
- Subwoofer's output are aligned in level and phase with monitors allowing flat and accurate reproduction down to 19 Hz and across the crossover point
- LFE channel output level (0 or +10 dB re. main channels) can be selected for accurate reproduction depending on the source type
The ability to bypass the subwoofer allows you to evaluate the audible impact of the subwoofer
A custom, Genelec-designed and manufactured Class D power amplifier connected directly to the driver produces 300W output power with very low total harmonic distortion (THD) and intermodulation distortion (IM). Driver-overload, thermal overload, and short-circuit protections are built into the amplifier circuitry. The power supply accepts mains voltages from 100 to 240 VAC.
The active design principle offers multiple benefits:
- The power amplifiers are directly connected to the speaker drivers, maximizing the control exerted by the power amplifier's damping on the driver's voice coil, reducing the consequences of dynamic changes in the driver electrical characteristics. This may improve the transient response of the system
- There is a reduction in the power amplifier output requirement. With no energy lost in the passive crossover filter components, the amplifier power output requirements are reduced considerably (by up to 1/2 in some cases) without any reduction in the acoustic power output of the loudspeaker system. This can reduce costs and increase audio quality and system reliability
- No loss between amplifier and driver units results in maximum acoustic efficiency
- Active technology can achieve superior sound output vs. size vs. low-frequency cut-off performance
- All loudspeakers are delivered as a factory aligned system (amplifiers, crossover electronics, and enclosure-driver systems)
Intelligent Signal Sensing function
Genelec's Intelligent Signal Sensing (ISS) is a power-saving feature that prolongs the service life of the monitor. ISS reduces power consumption to less than 0.5 watts by automatically switching the active monitor to standby when no audio signal has been detected for some time. When playback begins, the mode indicator light on the loudspeaker lights up and the playback resumes after a slight delay (<2 seconds).
In the studio, downtime is not an option, particularly when equipment fails and must be shipped out for repairs. Whether you're working in a professional production environment or even as a hobbyist, it's essential that monitoring systems remain reliable and functional at all times. Genelec's reputation for bullet-proof reliability is a product of the internal protection circuitry found in all Genelec monitors.
The protection circuitry prevents driver failure by detecting signal levels and responding accordingly. In the case of sudden peaks or levels that are too high for long periods, the protection circuitry reduces signal level automatically. This feature does not affect the sound quality in any way when working within the specifications of the loudspeaker, but only prevents inappropriate input signals from breaking the loudspeaker.
Protection circuitry features and benefits:
- Reduces the output level when required (e.g. when driver voice coil temperature reaches the safe limit), which highly improves system reliability
- Appropriate protection circuitry design for each loudspeaker and subwoofer maximizes system output level
The compact Genelec 7360A is capable of exceptional low-end performance, and a prime choice for studios and facilities where real estate is at a premium but higher power is required. For more information, call or chat online with your PAD Professional today.
- Lower cut-off frequency: 19Hz
- Upper cut-off frequency -6dB main channel LFE: 100Hz/150Hz
- Accuracy of frequency response ±3dB: 19Hz-100Hz
- Driver (magnetically shielded): 10" (250 mm)
- Harmonic distortion at 1 m on*axis in half space, 30 to 85Hz: 2nd ≤ 3% @ 90dB SPL; 3rd ≤ 2% @ 90dB SPL
- Maximum short term sine wave SPL output averaged from 30 to 85 Hz, measured in half space at 1 meter: ≥ 109dB SPL
- Maximum peak SPL output with random pink noise measured in half space at 1 meter: ≥ 114dB SPL
- Self-generated noise at 1 m on axis (A-weighted): <5dB
- Short-term output power: 300W
- Magnetically shielded (M)
- THD at nominal output: ≤0.01%
- Mains voltage: 100 ”“ 240 VAC 50/60Hz
Power consumption (average):
- Standby (ISS active) <1W
- Idle: 15W
- Full output, peak: 300W
- Max analog input signal: +25.0dBu
- Analog input sensitivity rotary level adjustment: +12 to -6dBu (100dB SPL @ 1 m)
- Digital input connector XLR female 110 ohm: AES/EBU single wire
- Digital output/thru connector XLR male 110 ohm: AES/EBU single wire
- Digital input word length: 16-24 bits
- Sample rate: 32kHz ”“ 192kHz
- Digital input sensitivity(100dB SPL at 1 m ) rotary level adjustment: -30dBFS
- Subsonic filter (18 dB/octave) below: 19Hz
- Control network type: Proprietary GLM network
- Control network connections: 2x RJ45, CAT5 cables
- GLM software frequency response adjustment parametric notch filters: 20
- System calibration: Genelec GLM AutoCal
Crossover subwoofer/subwoofer output channels:
- Centralized bass management: 85Hz low-pass (subwoofer), 85Hz high-pass (output)
- Distributed bass management (GLM control only): 50-100Hz low-pass (subwoofer); no filtering on output
- LFE cutoff: 150Hz
- Midband rejection >400Hz: ≥ 50dB
- Phase-matching control: 90° steps with DIP switch control; 15° steps with GLM control

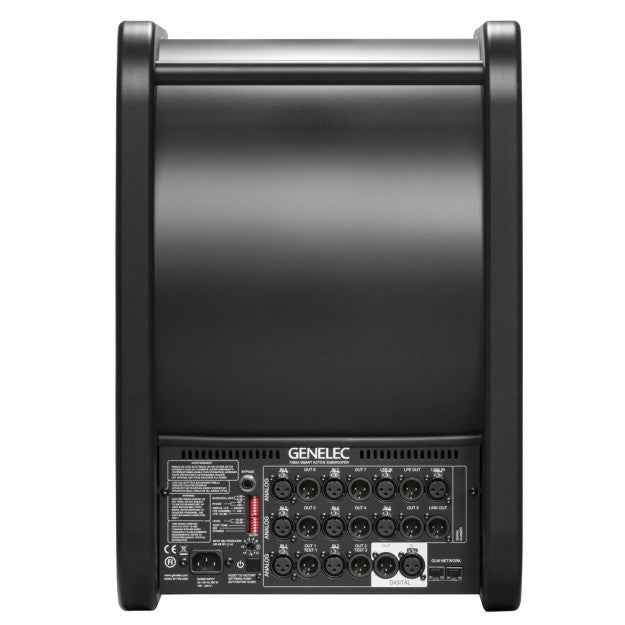

- Input connectors: 7x XLR female; 1x LFE XLR
- Input impedance: 10k ohm balanced
- Output connectors: 7x XLR male; 1x LFE XLR
- Finish: Producer Gray (P)
- Dimensions: (HWD): 20-3/4" x 18-3/16" x 14-3/8" (527 x 462 x 364 mm)
- Weight: 59 lb. (27 kg)
